DA10 PRO three-axis pan tilt camera, 2K high-definition anti shake.
DA10 PRO three-axis pan tilt camera, 2K high-definition anti shake.
The DA10 PRO is a high-performance 3-axis gimbal camera designed specifically for drone applications. It features a 2K high-definition distortion-free camera, providing clear and stable imagery even in dynamic flight conditions. The gimbal’s lightweight and compact design makes it ideal for aerial platforms, ensuring minimal payload impact and enhancing the overall flight performance of the drone.
The DA10 PRO is a high-performance 3-axis gimbal camera designed specifically for drone applications. It features a 2K high-definition distortion-free camera, providing clear and stable imagery even in dynamic flight conditions. The gimbal’s lightweight and compact design makes it ideal for aerial platforms, ensuring minimal payload impact and enhancing the overall flight performance of the drone.
Description
1. Overview
The DA10 PRO is a high-performance 3-axis gimbal camera designed specifically for drone applications. It features a 2K high-definition distortion-free camera, providing clear and stable imagery even in dynamic flight conditions. The gimbal’s lightweight and compact design makes it ideal for aerial platforms, ensuring minimal payload impact and enhancing the overall flight performance of the drone.
2. Product Features
- 2K High-Definition Distortion-Free Camera: Provides true high-definition visuals without distortion, ensuring a clear and accurate view.
- 3-Axis Stabilization: Uses industrial-grade three-axis stabilization technology to significantly reduce picture jitter, keeping the image stable even during movement.
- Light and Flexible: The net weight is only 61g, reducing the payload on the vehicle, making it adaptable to various vehicles of different specifications and sizes.
3. Detailed Technical Parameters

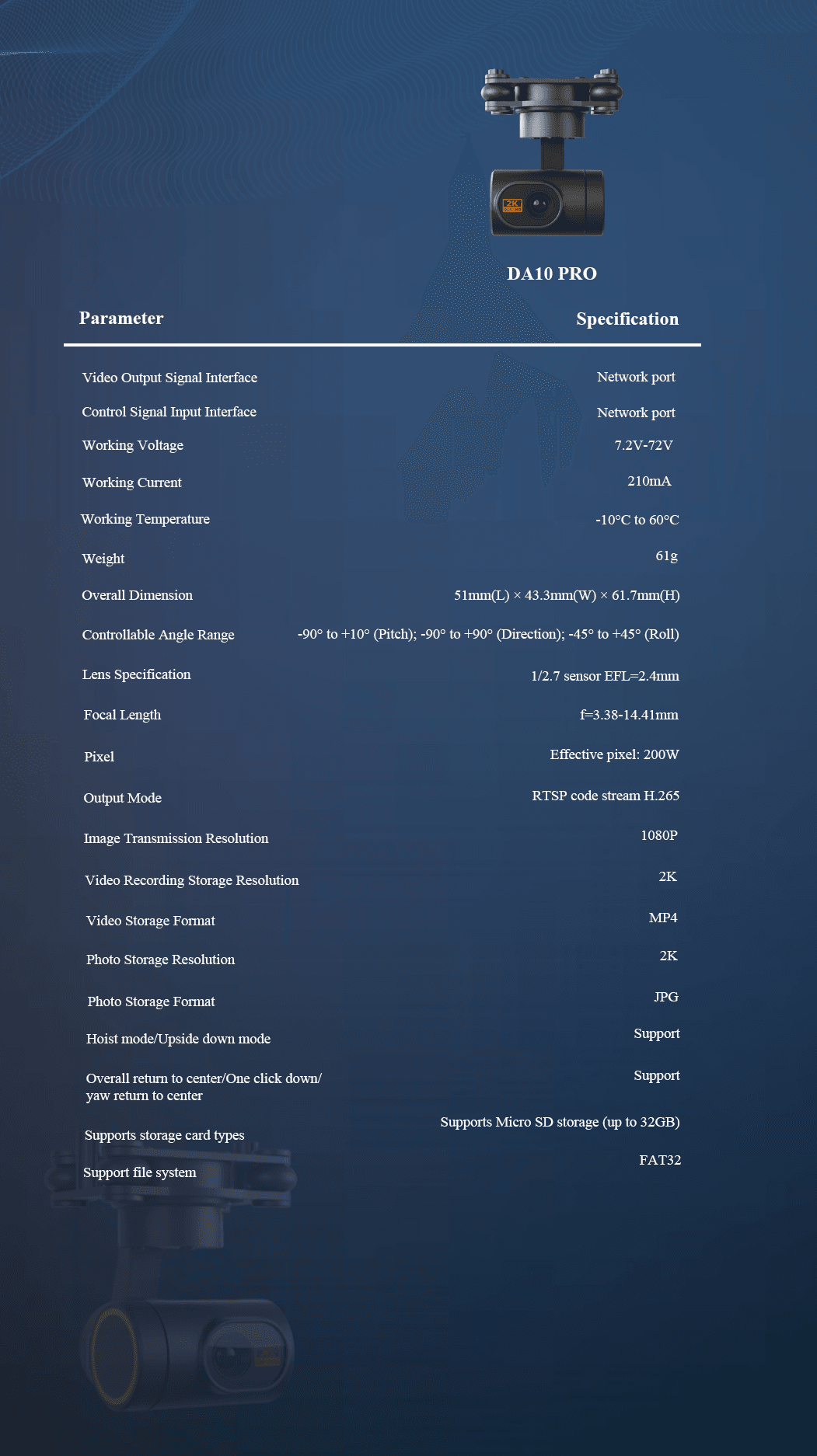

DA10 PRO 3-Axis Gimbal Specifications
| Video output signal interface | Network port |
| Control signal input interface | Network port |
| Working voltage | 7.2V-72V |
| Working current | 210mA |
| Working temperature | -10°C to 60°C |
| Weight | 61g |
| Overall dimension | 51mm(L) × 43.3mm(W) × 61.7mm(H) |
| Controllable angle range | -90° to +10° (Pitch); -90° to +90° (Direction); -45° to +45° (Roll) |
| Lens specification | 1/2.7 sensor EFL=2.4mm |
| Focal length | f=3.38-14.41mm |
| Pixel | Effective pixel: 200W |
| Output mode | RTSP code stream H.265 |
| Image transmission resolution | 1080P |
| Video recording storage resolution | 2K |
| Video storage format | MP4 |
| Photo storage resolution | 2K |
| Photo storage format | JPG |
| Hoist mode/Upside down mode | Support |
| Overall return to center/One click down/yaw return to center | Support |
| Supports storage card types | Supports Micro SD storage (up to 32GB) |
| Support file system | FAT32 |
4. Application Scenarios
- Aerial Cinematography: Ideal for drone-based filmmaking and photography, the DA10 PRO ensures stable and high-quality footage even during complex maneuvers.
- Surveying and Mapping: The high-definition camera and stabilization system make it suitable for geospatial data collection, including aerial surveying and mapping applications.
- Inspection and Monitoring: Perfect for monitoring and inspecting infrastructure such as power lines, wind turbines, and buildings, offering clear visuals in real-time with the added benefit of enhanced stability.
Additional information
| Performance parameters | DA10 PRO |
|---|
