D-RC Falcon Starlight FPV Camera | Sony CMOS, 1200 TVL, CVBS

SKU:D-CT3

D-RC Falcon is a compact analog FPV camera built around a Sony 1/3-inch CMOS sensor. It outputs 1200 TVL PAL/NTSC CVBS video and weighs 12.2 g excluding its cable. The published input range is 5–36 V, and the housing measures 30×15×19 mm. Starlight imaging and stated latency below 30 ms suit close-to-real-time piloting in low light, while the analog output connects to existing FPV video systems.

Sony 1/3" CMOS Sensor
400nm ~ 650nm
5V - 36V
1200TVL
12.2g (excluding cable)
30mm (H) x 15mm (D) x 19mm (W)

Plan your product inquiry.

Add this product to your quote list or contact our team to discuss product selection and integration.

Add To Quote

Model highlights

Core specifications

1200TVLResolution

12.2g (excluding cable)Weight

30mm (H) x 15mm (D) x 19mm (W)Dimensions

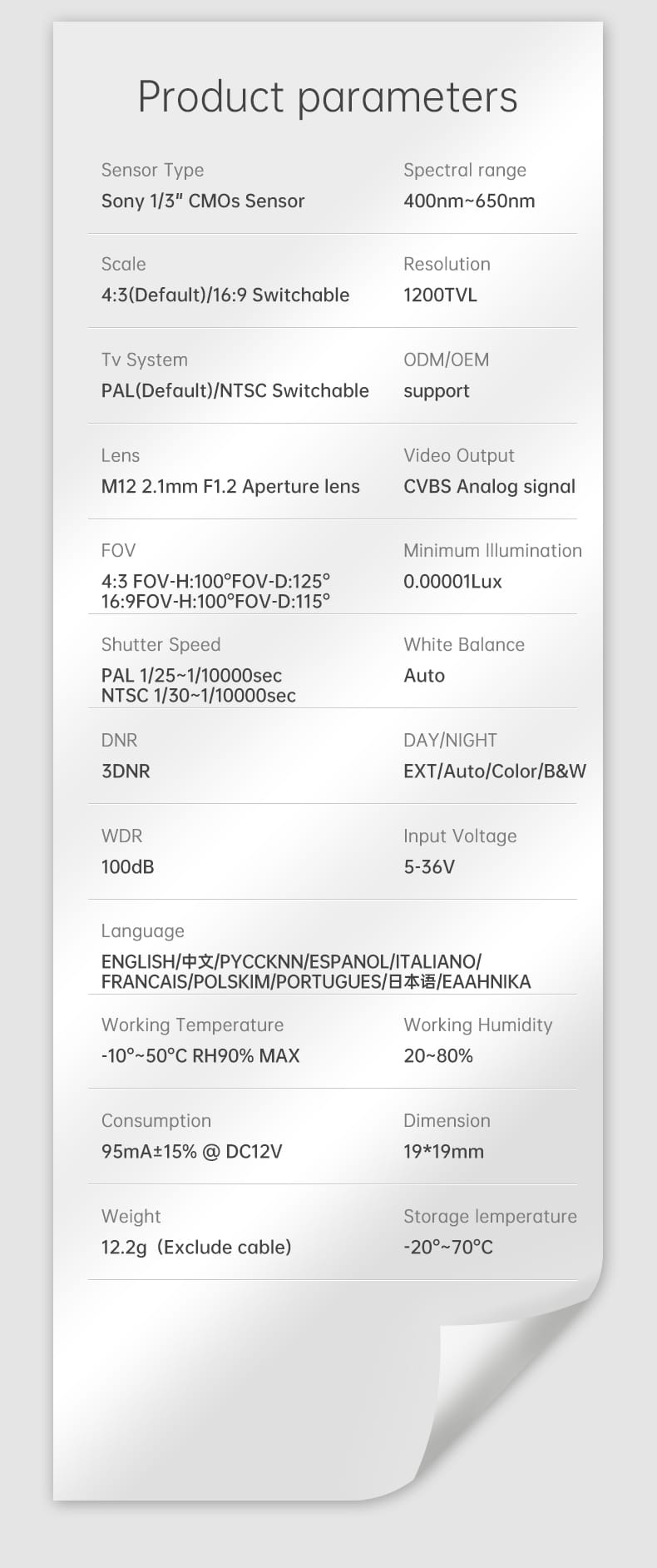

Technical data

Parameter	Details
Module Type	FPV Starlight Level CVBS Camera

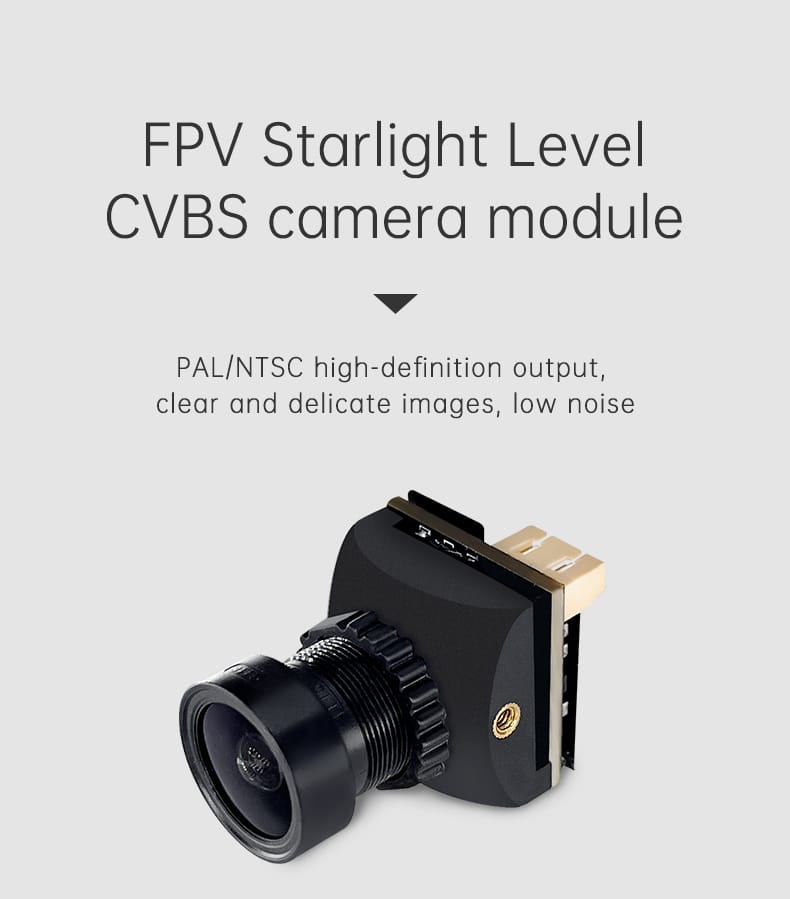

Output	PAL/NTSC high-definition output, clear and delicate images, low noise
Sensor Type	Sony 1/3" CMOS Sensor
Spectral Range	400nm ~ 650nm
Resolution	1200TVL
Input Voltage	5V - 36V
Minimum Illumination	0.02 Lux
Working Temperature	-10 ~ 50 °C
Weight	12.2g (excluding cable)

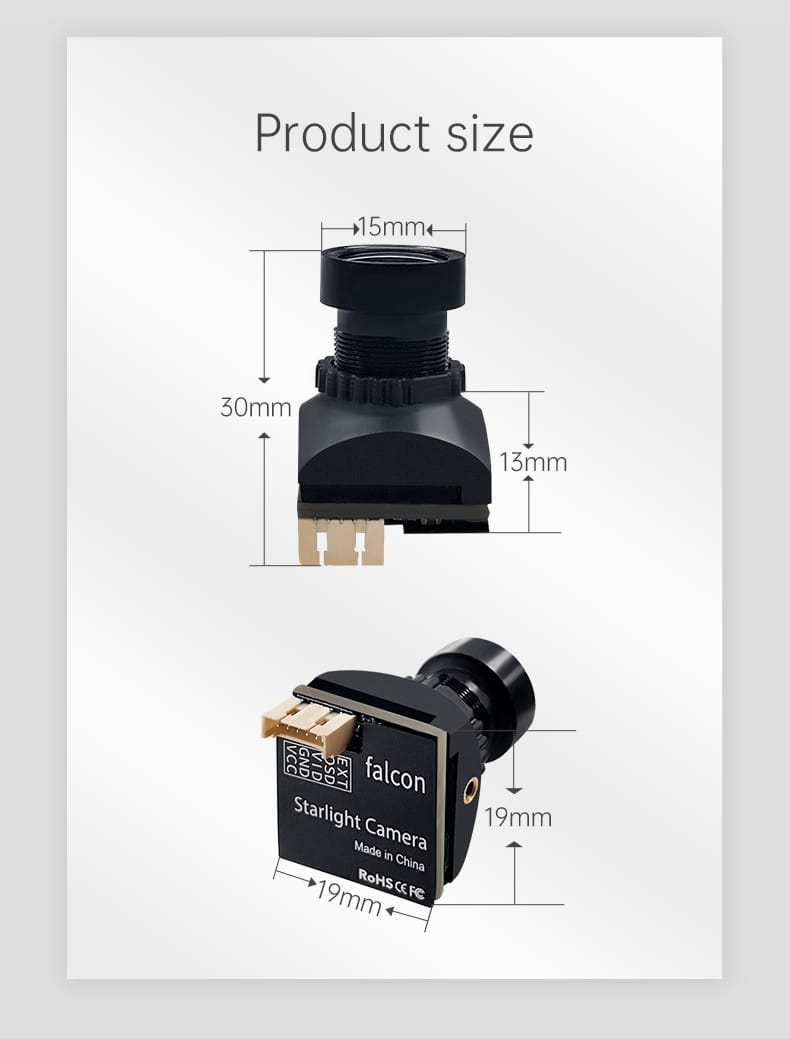

Dimensions	30mm (H) x 15mm (D) x 19mm (W)

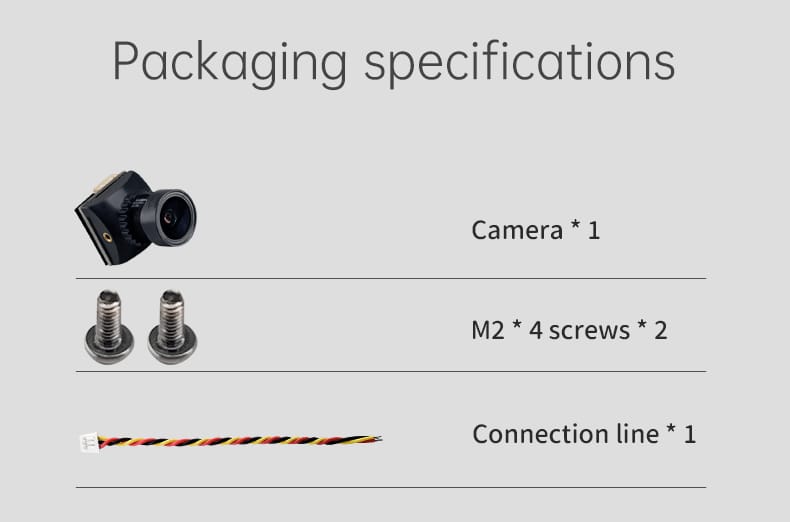

Packing List	1 Camera 2 M2 screws (4 screws total) 1 Connection line

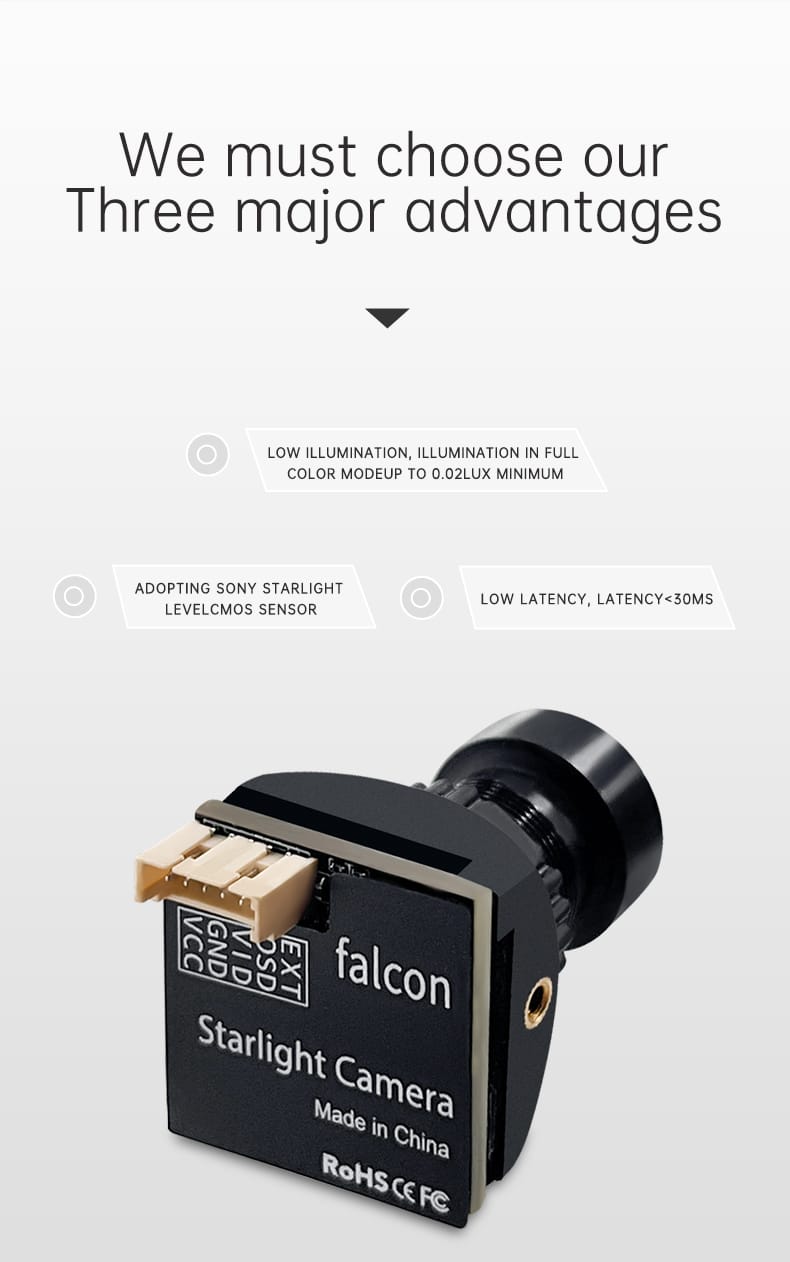

Key Advantages	Low illumination down to 0.02 Lux High-quality Sony Starlight Level CMOS sensor Low latency under 30ms
