D-RC 2035S 35A 4in1 ESC Review: Compact 35A Power for 3–6S Builds
A Compact Four-Channel ESC for Demanding Drone Builds

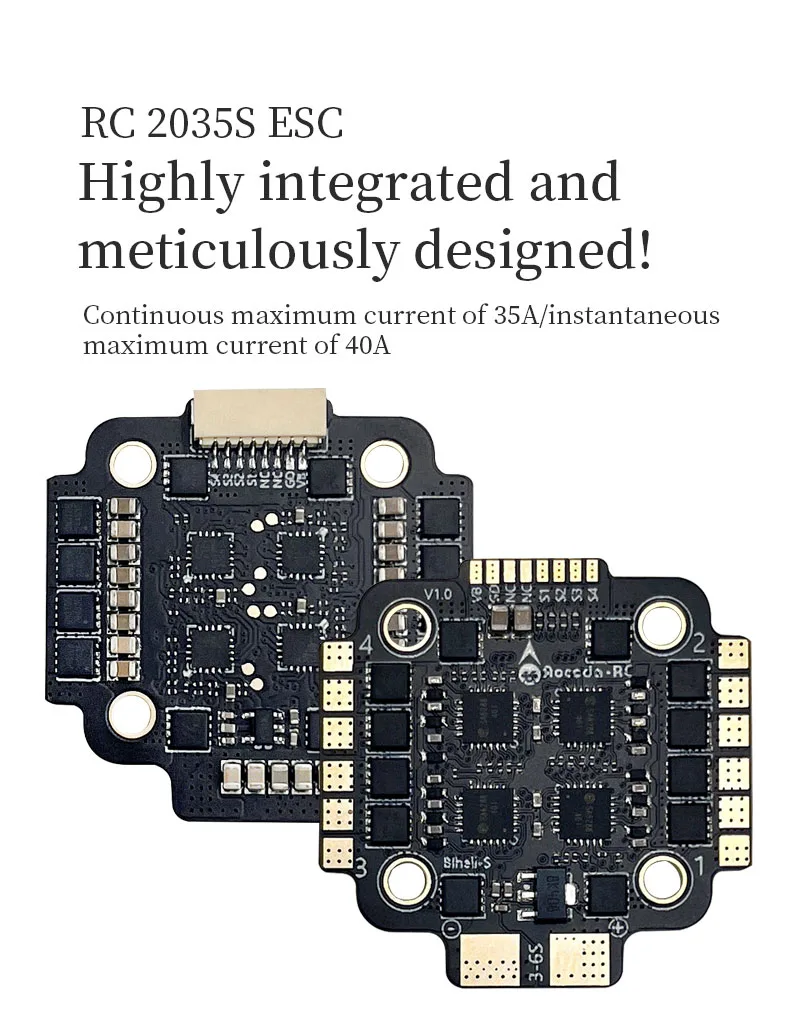

The D-RC 2035S 35A 4in1 ESC is a compact power-management board for multirotor and other flight applications. It combines four integrated motor-control channels in a lightweight PCB measuring approximately 34.2 × 34mm. At just 5.6g, this FPV ESC helps builders keep unnecessary weight out of small drone layouts. Moreover, its M2 20 × 20mm mounting pattern suits many compact frames and electronics stacks. The board accepts 3–6S LiPo power, so it supports both efficient lower-cell configurations and higher-performance 6S builds. Each channel is rated for 35A continuous current and 40A instantaneous current, according to the product specification images. Consequently, the ESC provides useful current capacity for four-motor systems without requiring four separate boards. It also supports Dshot150, Dshot300, Dshot600, Dshot1200, Multishot, Oneshot, Proshot, and PWM protocols. This broad compatibility makes setup more flexible across different flight-controller configurations. The included XT60 14AWG 90mm power cable, 470µF 35V electrolytic capacitor, 8-pin SH1.0 connector, and four M2 × 6.6 shock-absorbing balls further simplify installation. However, the specification data clearly identifies electric control feedback and an onboard ammeter as unsupported. Therefore, builders should choose this 4in1 ESC for its compact four-channel layout, broad protocol support, and lightweight design rather than for telemetry-focused functions.

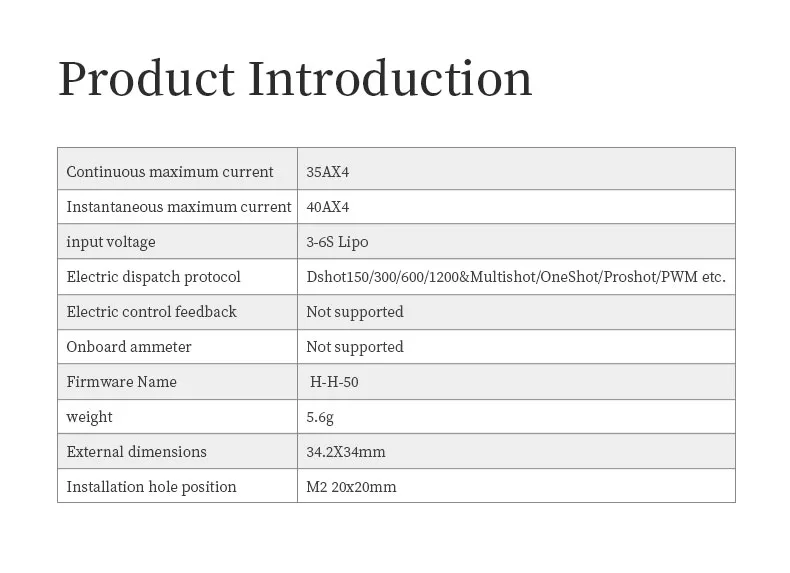

D-RC 2035S 35A 4in1 ESC Specifications
First, the core specifications show where this board fits best. It is designed for four-motor flight systems that need a small footprint and straightforward wiring. In addition, the 3–6S LiPo input range gives builders room to balance efficiency, weight, and available thrust.
| Specification | Detail |
|---|---|
| Product/model | RC/D-RC 2035S four-in-one ESC |
| Continuous maximum current | 35A × 4 |
| Instantaneous maximum current | 40A × 4 |
| Input voltage | 3–6S LiPo |
| Supported protocols | Dshot150/300/600/1200, Multishot, Oneshot, Proshot, PWM, and others shown |
| Firmware | H-H-50 |
| Weight | 5.6g |
| Dimensions | Approximately 34.2 × 34mm |
| Mounting pattern | M2, 20 × 20mm |
| Electric control feedback | Not supported |
| Onboard ammeter | Not supported |
Key takeaway: The board combines four 35A continuous channels, 3–6S LiPo support, and a 5.6g weight in a compact 20 × 20mm mounting format.
Protocol Support and Four-Motor Wiring
The D-RC 2035S supports several digital and PWM control protocols. These include Dshot150, Dshot300, Dshot600, Dshot1200, Multishot, Oneshot, Proshot, and PWM. As a result, it can accommodate a wide range of modern flight-controller setups. Dshot600 may suit builders seeking a responsive digital control link, while the other options provide additional configuration flexibility. Nevertheless, protocol selection should match the flight controller and firmware settings used in the finished aircraft.
The wiring information identifies four motor outputs: Motor 1, Motor 2, Motor 3, and Motor 4. It also marks the positive and negative power connections, along with an air-control connection. Therefore, careful attention to polarity and channel order remains important during installation. The four-in-one design reduces the number of separate boards and motor-signal connections inside the frame. In turn, that can create a cleaner electronics layout and make the build easier to organize.
- Connect the four motor outputs according to the labeled channel diagram.
- Verify positive and negative power connections before applying a 3–6S LiPo battery.
- Match the selected protocol with the flight controller configuration.
- Remember that onboard current measurement and electric control feedback are not available.
Compact Design and Included Hardware

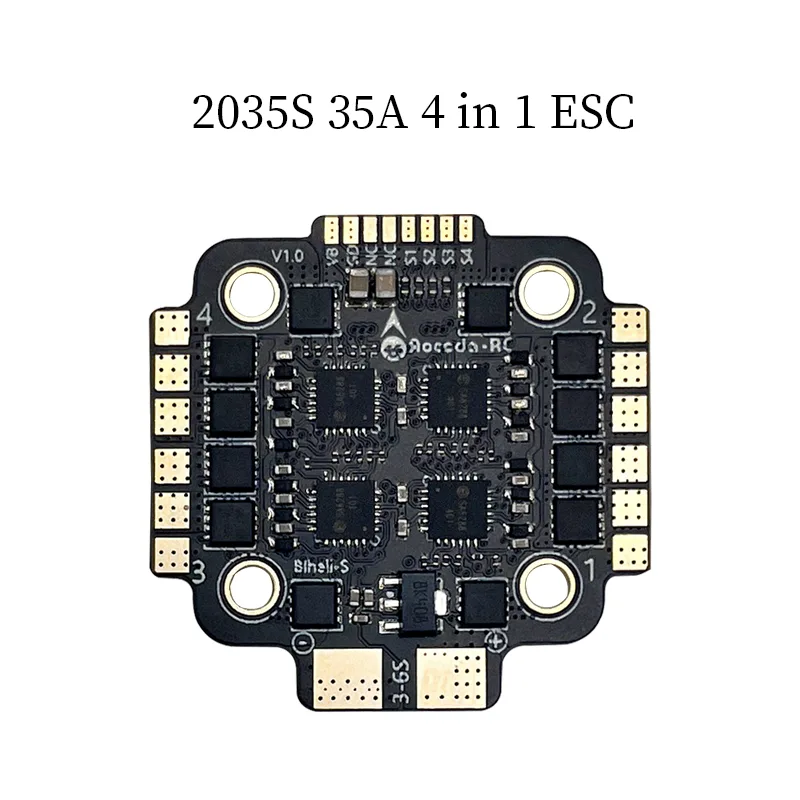

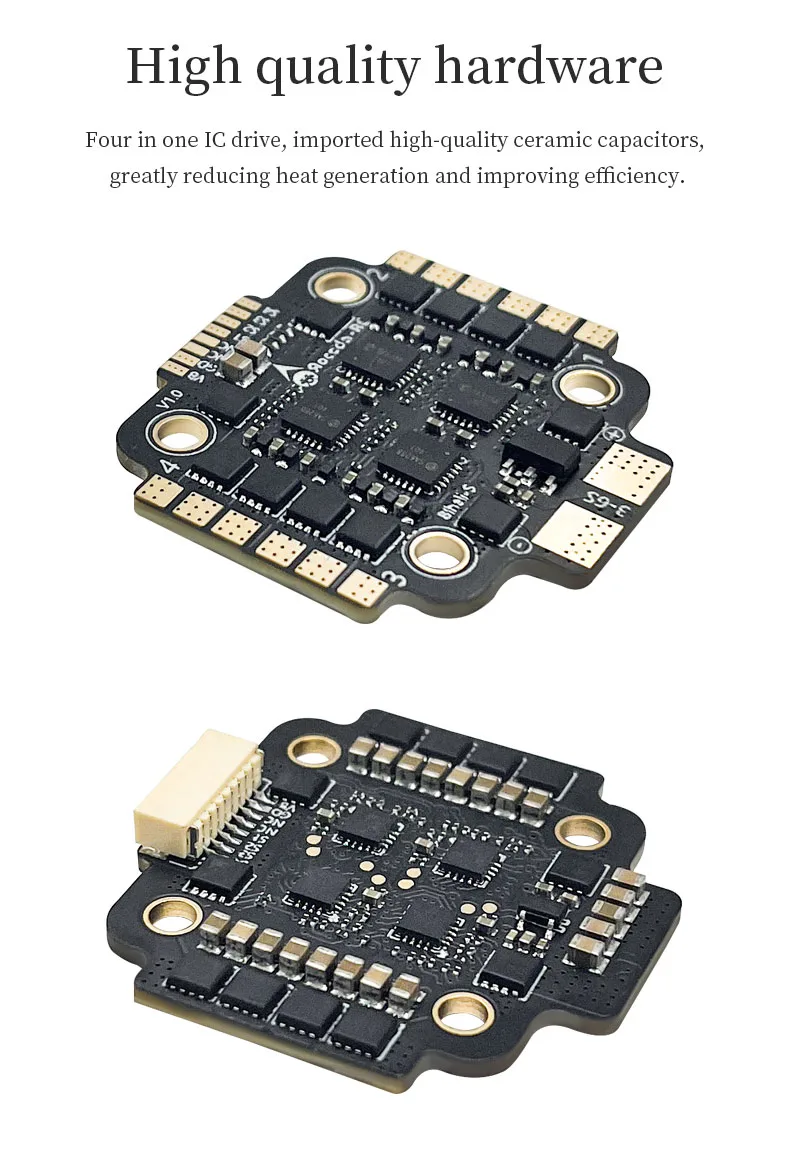

The board uses a small, square black PCB with rounded or scalloped corners and four plated mounting holes. Gold-colored solder pads line the edges, while channel markings help identify the motor sections. Meanwhile, the slim profile and 5.6g weight support compact flight builds where every gram matters. The M2 20 × 20mm hole pattern also makes the board suitable for small drone electronics stacks.
The package includes useful installation accessories. Specifically, the 470µF 35V electrolytic capacitor supports the power-input setup, and the XT60 14AWG 90mm cable provides a ready-made battery connection. An 8-pin SH1.0 connector supports the control wiring. Additionally, four M2 × 6.6 shock-absorbing balls are included for mounting. These items can reduce the need to source basic hardware separately.
Build note: Plan the stack around the 34.2 × 34mm board size and M2 20 × 20mm mounting holes. Also, confirm clearance for the connector, capacitor, and included power lead.
Who Should Choose This FPV ESC?
This 4in1 ESC is a practical choice for builders who value a compact and lightweight power system. It can fit small multirotors, FPV platforms, and other four-motor flight applications. Furthermore, the wide protocol selection helps it adapt to different control architectures. Its four-channel layout may also simplify wiring compared with four individual ESC boards.
However, it is important to review the limitations before ordering. The product data states that electric control feedback and an onboard ammeter are not supported. Therefore, pilots who require current telemetry should consider that requirement during their electronics planning. For builders who mainly need four motor channels, 35A continuous capability, and 3–6S compatibility, the D-RC 2035S offers a focused solution.
