DA034LC Dual-Format Video Board | SDI + CVBS I/O, AI Target Tracking
SKU:DA034LC
DA034LC accepts SDI and CVBS video and supplies both SDI and CVBS outputs for flexible display or recording paths. AI-assisted tracking, Gigabit Ethernet RTSP, RS422 and TTL interfaces support embedded camera integration. The 60×45 mm board weighs 30.8 ±5 g bare board without heat sink, offers 8 GB or 16 GB memory and consumes <4 W, combining two video-output formats in a small tracking module.
- 1 × SDI, 1 × CVBS
- RS422, TTL
- 8GB / 16GB
- 30.8g ± 5g (bare board without heat sink)
- < 4W
- 60mm × 45mm
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Model highlights
Core specifications
30.8g ± 5g (bare board without heat sink)Weight
< 4WPower Consumption
60mm × 45mmDimensions

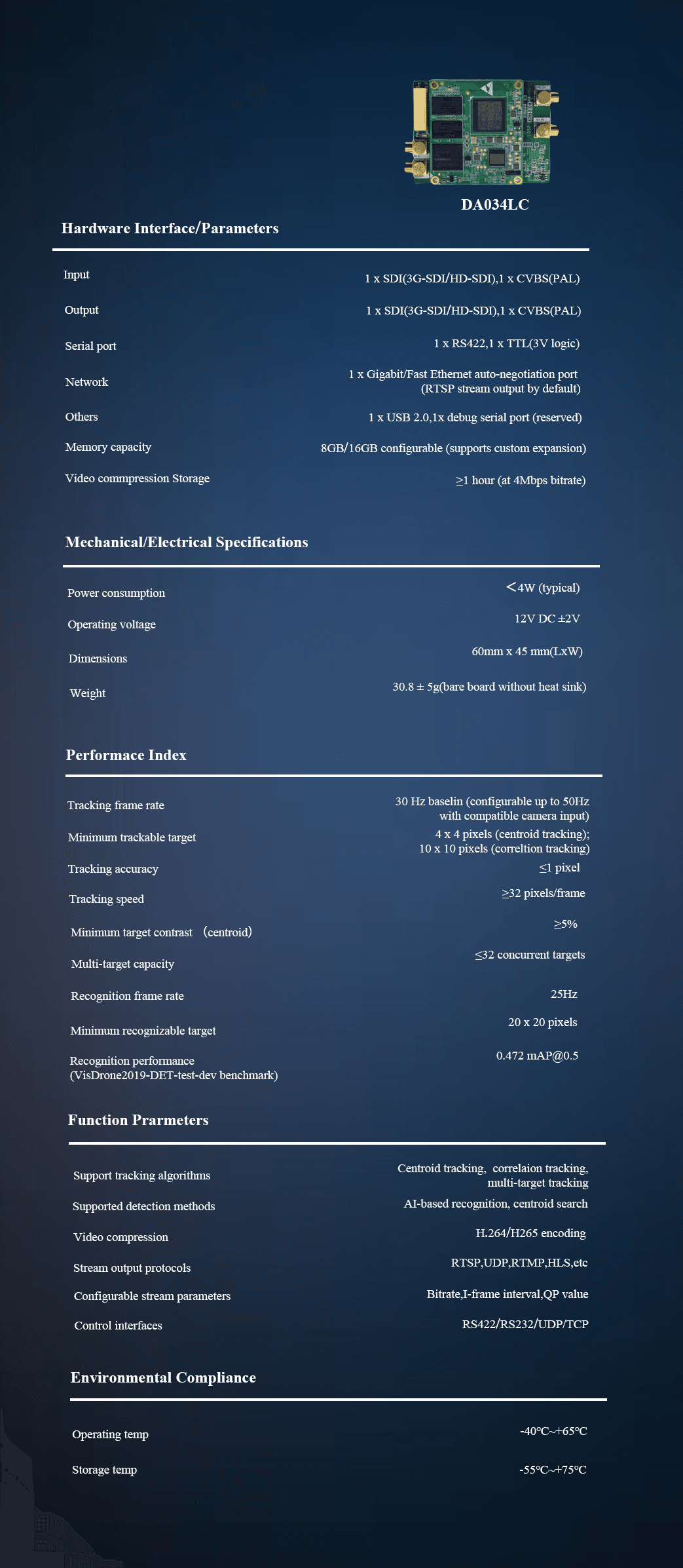

Technical data
| Parameter | Specification |
|---|---|
| Input | 1 × SDI, 1 × CVBS |
| Output | 1 × SDI, 1 × CVBS |
| Serial Ports | RS422, TTL |
| Memory | 8GB / 16GB |
| Power Consumption | < 4W |
| Dimensions | 60mm × 45mm |
| Weight | 30.8g ± 5g (bare board without heat sink) |
1. Features & applications
The Trac-DA034LC is an upgraded variant of DA034L, featuring dual video outputs and extended compatibility for
security, defense, and industrial applications.
2. Product Features
- Video Interfaces: Input: 1× SDI, 1× CVBS; Output: 1× SDI, 1× CVBS.
- Tracking: AI-assisted target tracking with robust performance under interference.
- Networking: Gigabit Ethernet with RTSP streaming support.
- Low Power & Compact: < 4W consumption, compact 60×45mm size.
3. Application Scenarios
- Electronic Sentry: Ideal for static monitoring and automated defense systems.
- Coastal Surveillance: Supports real-time ship and target monitoring.
