DA034L Low-Power SDI Tracker | <4 W, CVBS and Gigabit Network
SKU:DA034L
DA034L processes SDI and CVBS camera feeds for AI-assisted target detection and tracking, then provides SDI video and Gigabit Ethernet RTSP output. RS422, RS232, TTL and USB 2.0 expand embedded control options; 8 GB or 16 GB memory supports local functions. The 60×45 mm board weighs 28.2 ±5 g bare board without heat sink and uses 12 V DC ±2 V at <4 W, making it suitable for compact vision and monitoring equipment.
- 1 × SDI, 1 × CVBS
- 1 × SDI
- RS422, RS232, TTL
- 1 × Gigabit Ethernet (RTSP)
- 8GB / 16GB
- 60mm × 45mm
- 28.2g ± 5g (bare board without heat sink)
- < 4W
- 12V DC ± 2V
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Model highlights
Core specifications
28.2g ± 5g (bare board without heat sink)Weight
< 4WPower Consumption
12V DC ± 2VOperating Voltage

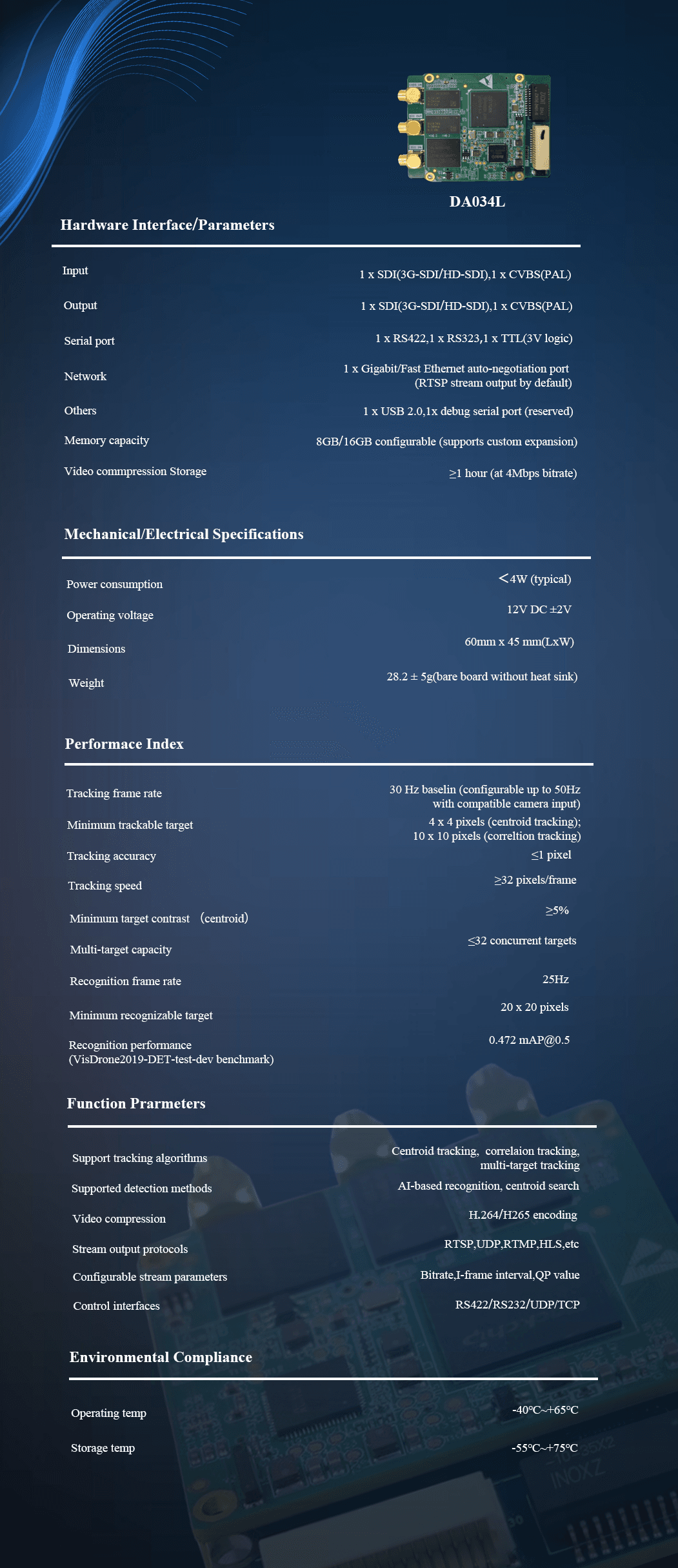

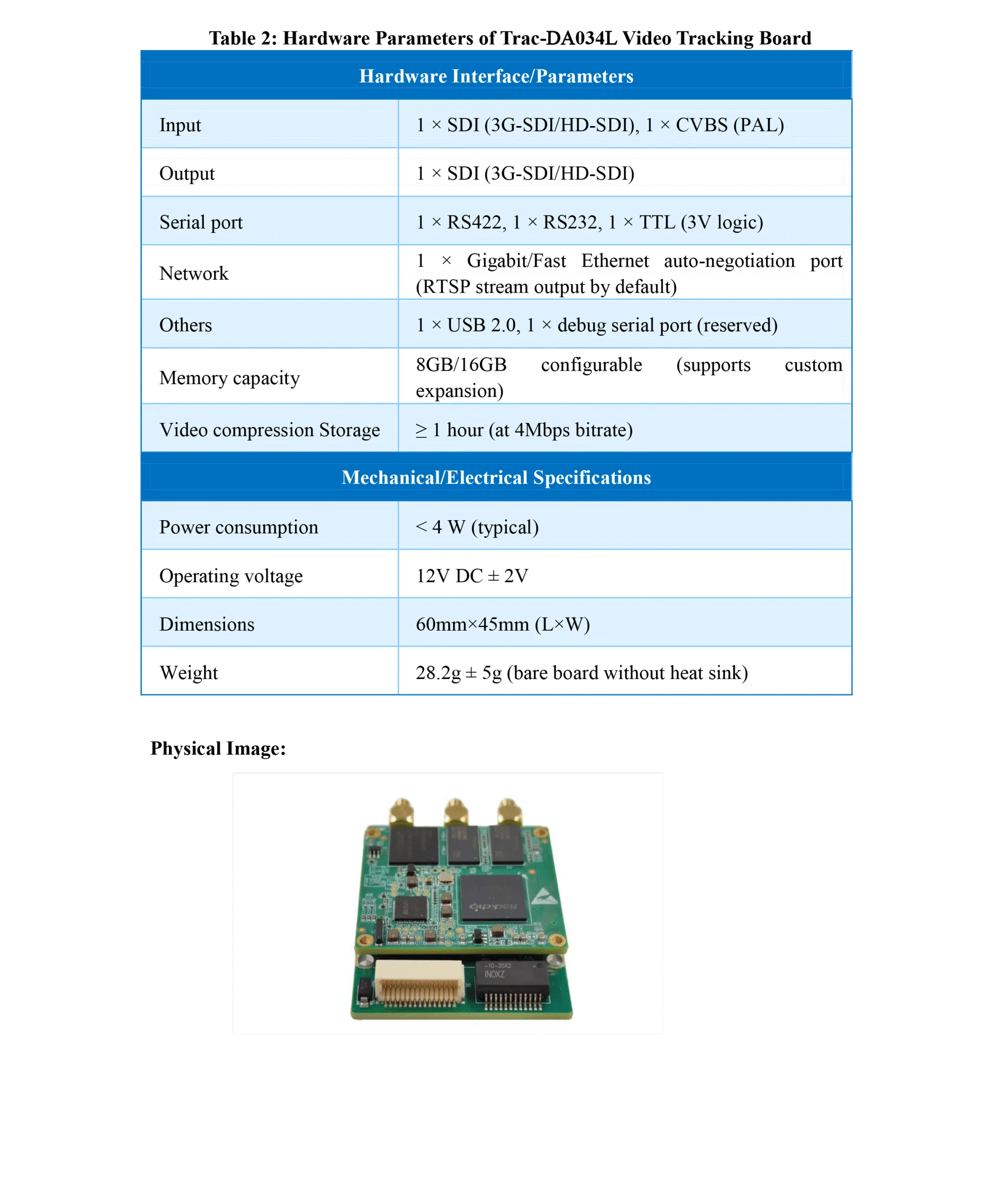

Technical data
| Parameter | Specification |
|---|---|
| Input | 1 × SDI, 1 × CVBS |
| Output | 1 × SDI |
| Serial Ports | RS422, RS232, TTL |
| Network | 1 × Gigabit Ethernet (RTSP) |
| Memory | 8GB / 16GB |
| Power Consumption | < 4W |
| Operating Voltage | 12V DC ± 2V |

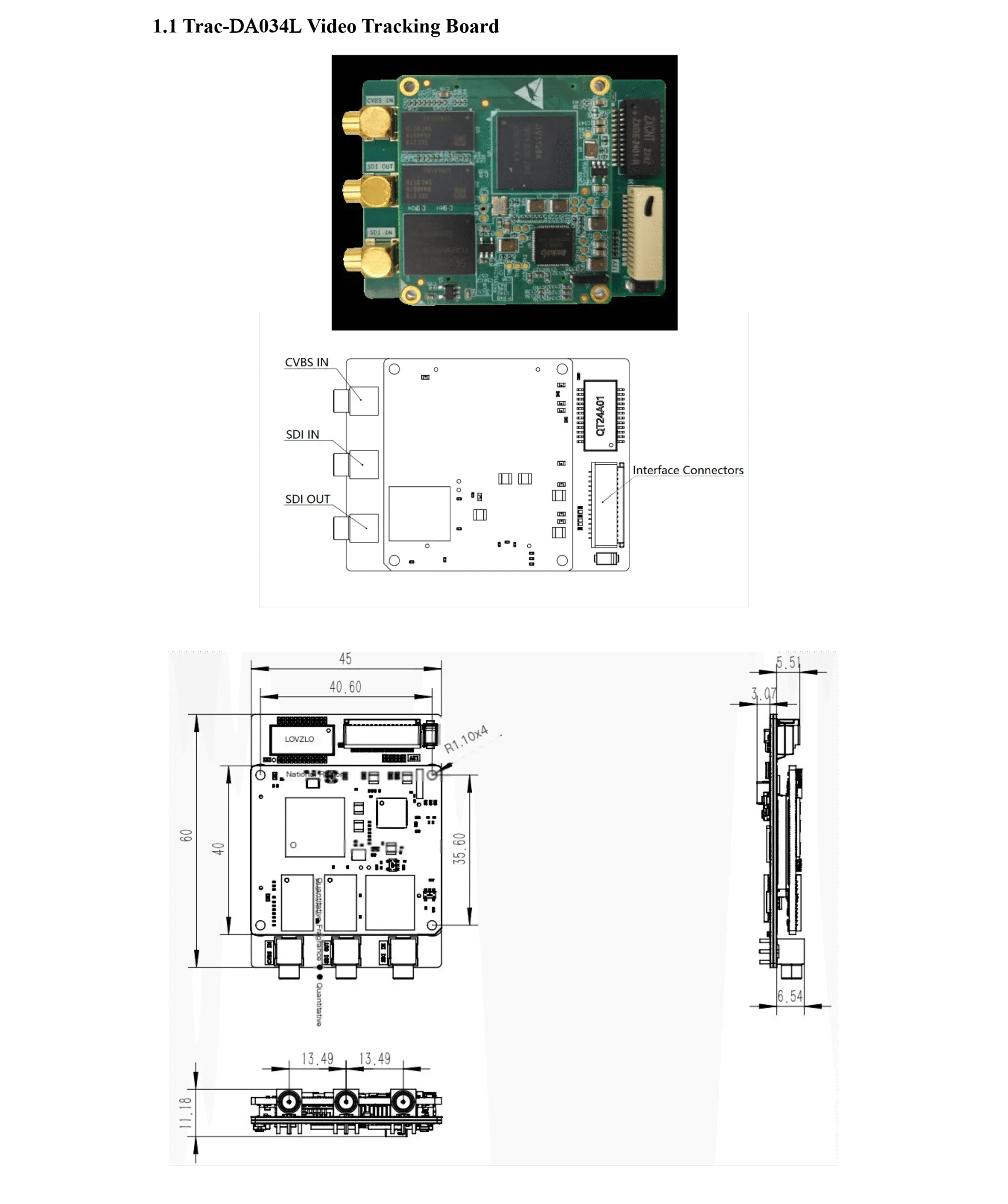

| Dimensions | 60mm × 45mm |
| Weight | 28.2g ± 5g (bare board without heat sink) |
1. Features & applications
The Trac-DA034L is a compact and low-power video tracking board that supports AI-based target detection
and multiple tracking algorithms. It is designed for real-time surveillance, defense, and intelligent monitoring applications.
2. Product Features
- Video Interfaces: Input: 1× SDI (3G-SDI/HD-SDI), 1× CVBS (PAL); Output: 1× SDI.

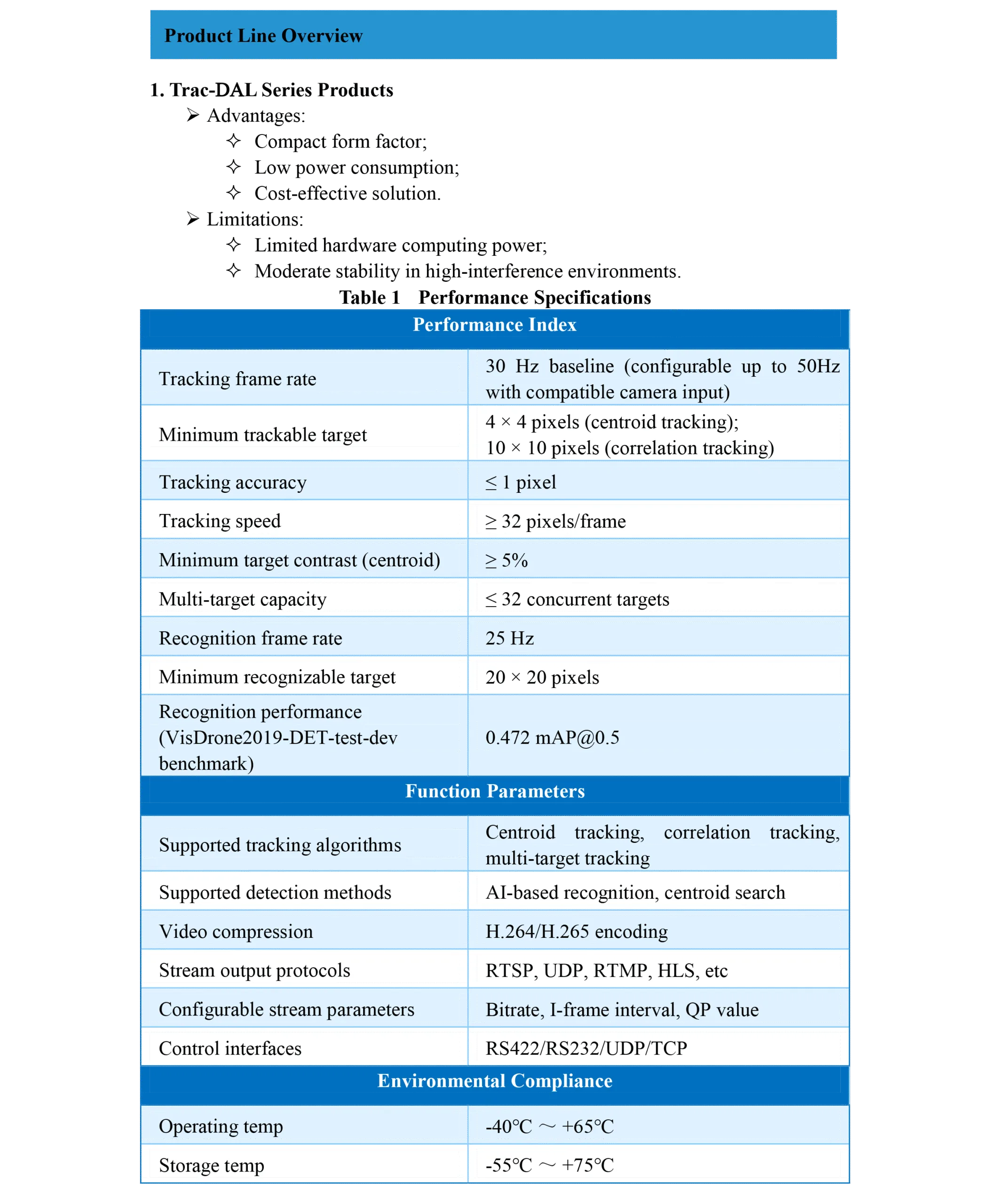

- Target Tracking: Centroid, correlation, and multi-target tracking with AI recognition support.
- Storage & Networking: 8GB/16GB memory, RTSP streaming via Gigabit Ethernet, USB 2.0 interface.
- Low Power Design: Typical power consumption below 4W, suitable for embedded applications.
3. Application Scenarios
- UAV Pods: Lightweight solution for airborne surveillance.
- Mobile Monitoring: Applied in field surveillance and perimeter defense systems.
