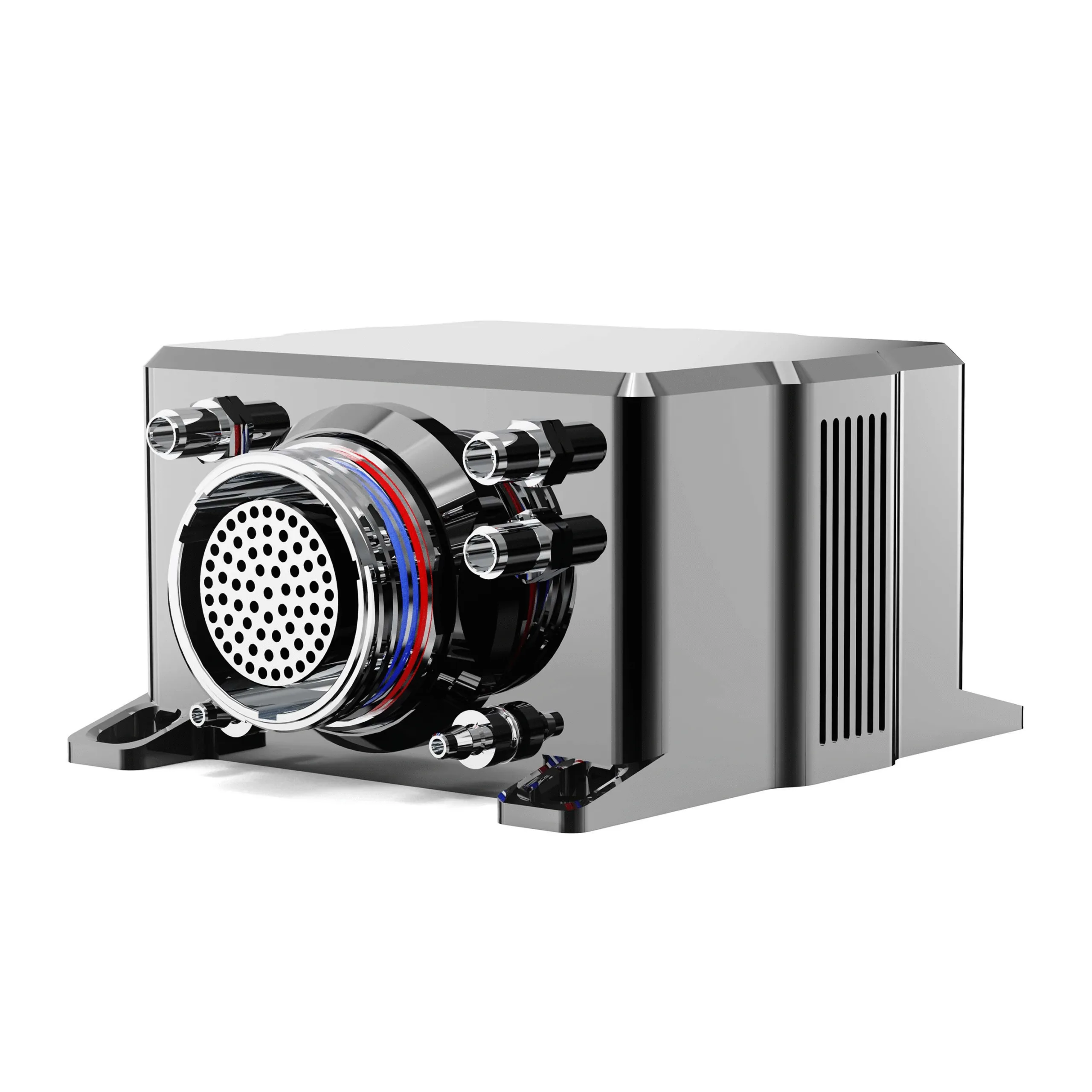

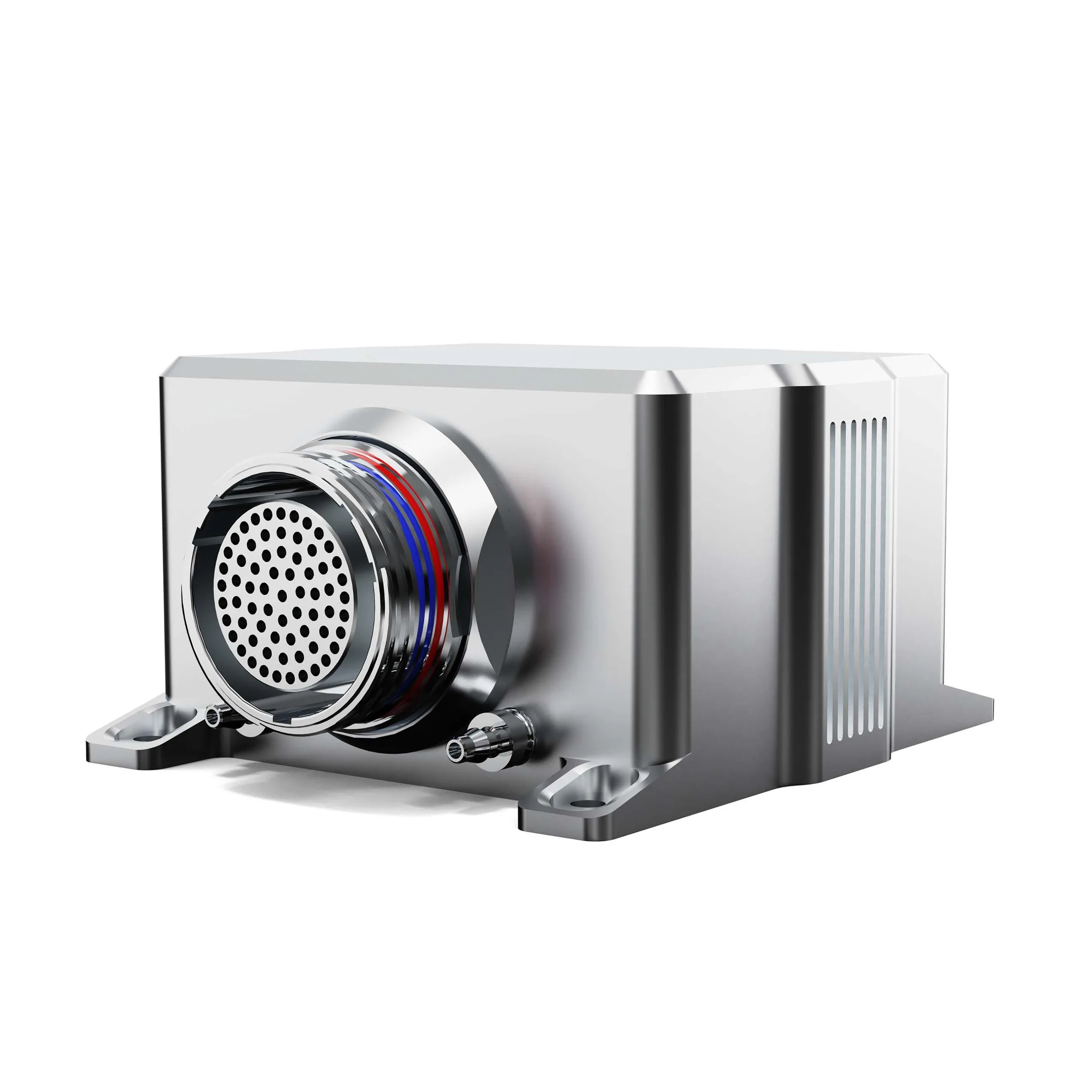

DAIMU 501/701: Tactical IMU Navigation System with Centimeter-Level GPS Accuracy

Cutting-edge tactical-grade all-in-one navigation system engineered for centimeter-level precision positioning across demanding operational environments.

DAIMU 501/701 Tactical IMU Navigation System - Centimeter-Level GPS Accuracy

Advanced Multi-Mode RTK GPS Positioning Technology

The DAIMU 501/701 incorporates sophisticated multi-mode RTK GPS positioning technology that supports GPS, GLONASS, Galileo, BeiDou, and SBAS satellite systems. This ensures reliable centimeter-level RTK accuracy even in challenging signal environments.

The integrated RTK (Real-Time Kinematic) module works in conjunction with the multi-mode satellite positioning system to deliver the absolute positioning precision required by tactical and aerospace applications. This strategic combination enables the GPS IMU navigation system to maintain positioning accuracy during high-dynamic maneuvers and in areas with partial satellite coverage.

Key Advantage: By supporting multiple satellite navigation systems simultaneously, the device ensures robust positioning performance across diverse global regions and operational scenarios.

Integrated High-Precision Tactical IMU Sensor Array

The core of this tactical navigation system lies in its integrated high-precision array IMU (Inertial Measurement Unit), which features ultra-low noise characteristics and excellent bias stability for precise motion tracking.

The tactical IMU provides tactical-grade attitude determination with exceptional reliability during GPS outages or interference conditions. The addition of barometer and magnetometer sensors complements the IMU and RTK GPS data, enabling:

  • Altitude determination relative to mean sea level
  • Absolute heading reference for orientation
  • Continuous attitude tracking during signal gaps
Four Key Datasets Output: Centimeter-level RTK positioning, tactical-grade attitude, absolute heading, and altitude information—all processed internally by the high-performance MCU.

Direct Output and Seamless Platform Integration

The DAIMU 501/701 navigation system excels in direct output capabilities, delivering critical positioning data without requiring complex post-processing algorithms. This direct output functionality enables immediate utilization of positioning, attitude, heading, and altitude information by control systems and autonomy algorithms.

The compact, rugged design facilitates seamless integration into various platforms. The tactical-grade performance maintains superior accuracy under high-dynamic conditions, supporting applications where precision cannot be compromised.

Integration Benefits

The all-in-one design reduces integration complexity and system weight, making it ideal for space-constrained platforms such as small UAVs and autonomous ground vehicles.

Applications Across Multiple Industries

The versatility of this tactical IMU navigation system enables deployment across numerous industries requiring high-precision positioning and attitude determination.

✈️

Aerospace

Attitude reference and navigation data for flight vehicle control and guidance systems.

🚁

UAV Platforms

Centimeter-level RTK positioning and tactical-grade attitude for autonomous flight operations.

🚗

Automotive

Core positioning solution maintaining accuracy when GPS signals are interrupted.

⚓

Marine

Rugged design and absolute heading for vessel attitude control and ocean navigation.

🏗️

Industrial Machinery

Precision tracking for automated control and construction machinery guidance.

Technical Specifications

Positioning Accuracy
Centimeter-level RTK precision (horizontal: ≤2cm, vertical: ≤3cm with RTK fix)
Satellite Systems
GPS L1/L2, GLONASS L1/L2, Galileo E1/E5, BeiDou B1/B2, SBAS support
IMU Performance
Tactical-grade with ultra-low noise (≤0.01°/√hr angular random walk) and excellent bias stability
Output Data
Position (LLH/ECEF), attitude (roll/pitch/yaw), heading, and altitude in real-time
Data Interface
RS232/RS422/USB with configurable output rates up to 200Hz
Sensor Integration
High-precision array IMU, barometer, magnetometer
Environmental Rating
IP67 rated, operating temperature -40°C to +85°C
Power Consumption
≤5W typical, DC 9-36V input range
Dimensions
120mm × 80mm × 45mm, weight ≤350g

Frequently Asked Questions

What positioning accuracy does the DAIMU 501/701 achieve?
The DAIMU 501/701 achieves centimeter-level RTK positioning accuracy through its advanced real-time kinematic technology and multi-mode satellite positioning system, delivering ≤2cm horizontal accuracy and ≤3cm vertical accuracy with RTK fix.

What satellite navigation systems does this tactical IMU support?
The system supports GPS L1/L2, GLONASS L1/L2, Galileo E1/E5, BeiDou B1/B2, and SBAS satellite systems, ensuring reliable global coverage and positioning accuracy across different regions worldwide.

What types of data does the DAIMU 501/701 output directly?
The system provides direct output of four key datasets: centimeter-level RTK positioning (LLH/ECEF coordinates), tactical-grade attitude (roll/pitch/yaw), absolute heading, and altitude information without requiring complex post-processing.

In which applications can this tactical navigation system be deployed?
The DAIMU 501/701 is designed for aerospace navigation, UAV autonomous flight, automotive systems, marine navigation, and industrial machinery automation applications requiring high-precision positioning.

How does the IMU maintain accuracy during GPS outages?
The integrated tactical-grade IMU with ultra-low noise characteristics and excellent bias stability provides continuous positioning and attitude tracking for extended periods during GPS signal interruptions, maintaining sub-meter accuracy for typically 60+ seconds depending on dynamics.

What communication interfaces are available?
The system supports multiple communication interfaces including RS232, RS422, and USB with configurable output rates up to 200Hz, ensuring compatibility with various control systems and autonomy platforms.

Why Choose the DAIMU 501/701?

When selecting a tactical navigation system for mission-critical applications, the DAIMU 501/701 stands out with its comprehensive sensor integration and proven reliability.

Unlike consumer-grade GPS modules that struggle in challenging environments, this tactical navigation system maintains centimeter-level accuracy through intelligent sensor fusion. Backed by comprehensive factory calibration and quality assurance testing, each unit delivers consistent performance you can trust for your most demanding navigation applications.

Get a Quote for Your Navigation Project

Ready to integrate centimeter-level RTK positioning into your autonomous platform or precision navigation system? Contact our technical team to discuss your specific application requirements and receive a customized solution proposal.

Request a Quote


📄 View DAIMU 501/701 Product Page
Full Specifications, Datasheet Download, and Order Information
