Trac-DA054L Video Tracking Board

SKU:DA054L
The Trac-DA054L supports LVDS and MIPI inputs with SDI output, suitable for security, surveillance,and advanced AI tracking tasks in defense and industrial applications.

Share on:






1. Trac-DA054L Video Tracking Board Overview

The Trac-DA054L supports LVDS and MIPI inputs with SDI output, suitable for security, surveillance,
and advanced AI tracking tasks in defense and industrial applications.

2. Product Features

  • Video Interfaces: Input: 1× LVDS, 1× MIPI; Output: 1× SDI.
  • Connectivity: RS422, TTL, Gigabit Ethernet, USB 2.0.
  • Storage: Configurable 8GB/16GB with ≥1h video compression storage.
  • Compact Design: 60×45mm PCB, weight 24.8g.

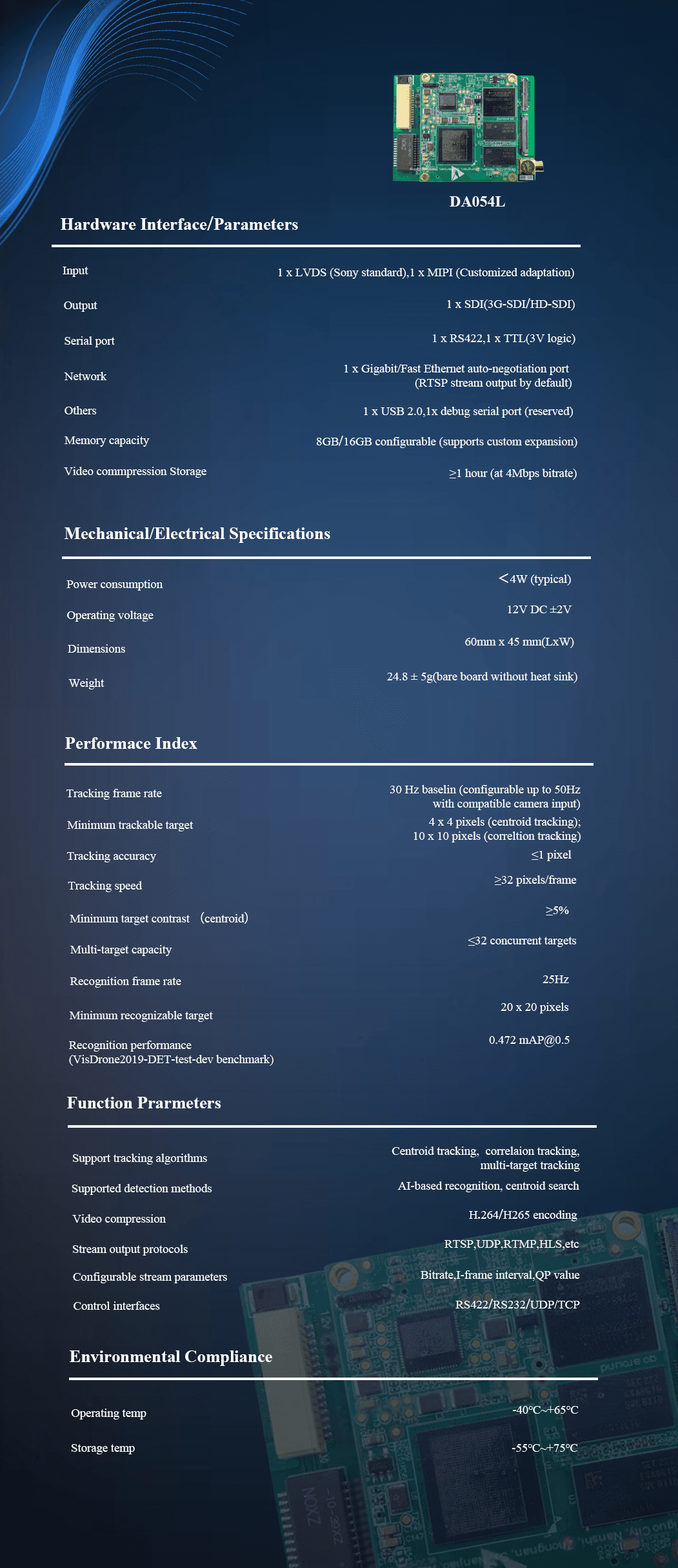

3. Detailed Technical Parameters

Parameter Specification
Input 1 × LVDS, 1 × MIPI
Output 1 × SDI
Serial Ports RS422, TTL
Memory 8GB / 16GB
Power Consumption < 4W
Dimensions 60mm × 45mm
Weight 24.8g ± 5g

4. Application Scenarios

  • Defense Monitoring: Real-time tracking for land and sea targets.
  • Industrial Vision: AI-powered visual recognition in automation systems.
