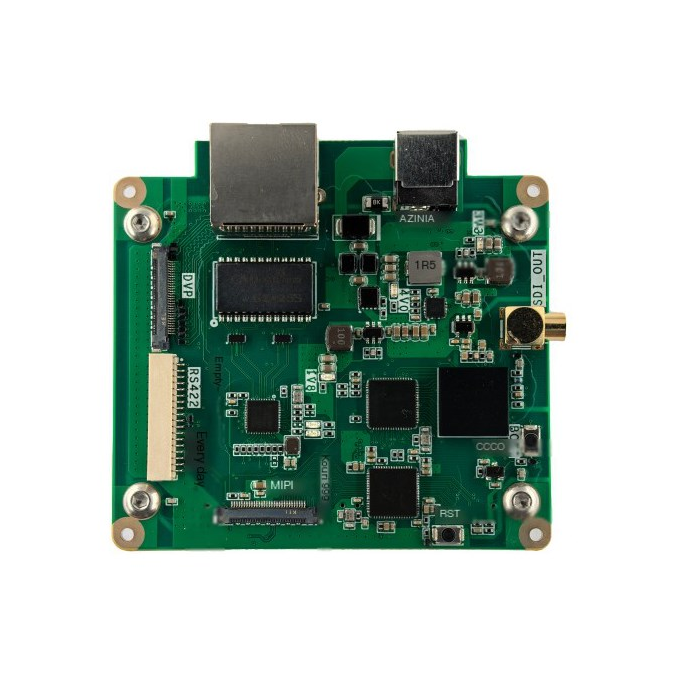

Trac-DA047H Video Tracking Board

Name: Trac-DA047H Video Tracking Board
Brand: UAVAUTO
SKU: Trac-DA047H
Price: 999 USD
Availability: InStock

SKU:Trac-DA047H

The Trac-DA047H delivers rugged, high-stability tracking with LVDS/DVP support and strong EMI immunity,tailored for industrial and defense surveillance where environmental robustness is required.

Share on:

1. Trac-DA047H Video Tracking Board Overview

The Trac-DA047H delivers rugged, high-stability tracking with LVDS/DVP support and strong EMI immunity,
tailored for industrial and defense surveillance where environmental robustness is required.

2. Product Features

Flexible Inputs: LVDS (Sony standard) and DVP inputs for diverse sensor integration.
Robust Connectivity: Dual RS422, UART, Gigabit Ethernet, USB 2.0 for control and streaming.
High Capacity Storage: 64GB with ≥3 hours compressed storage at 6 Mbps.
Environmental Stability: Designed for harsh conditions with enhanced anti-interference.

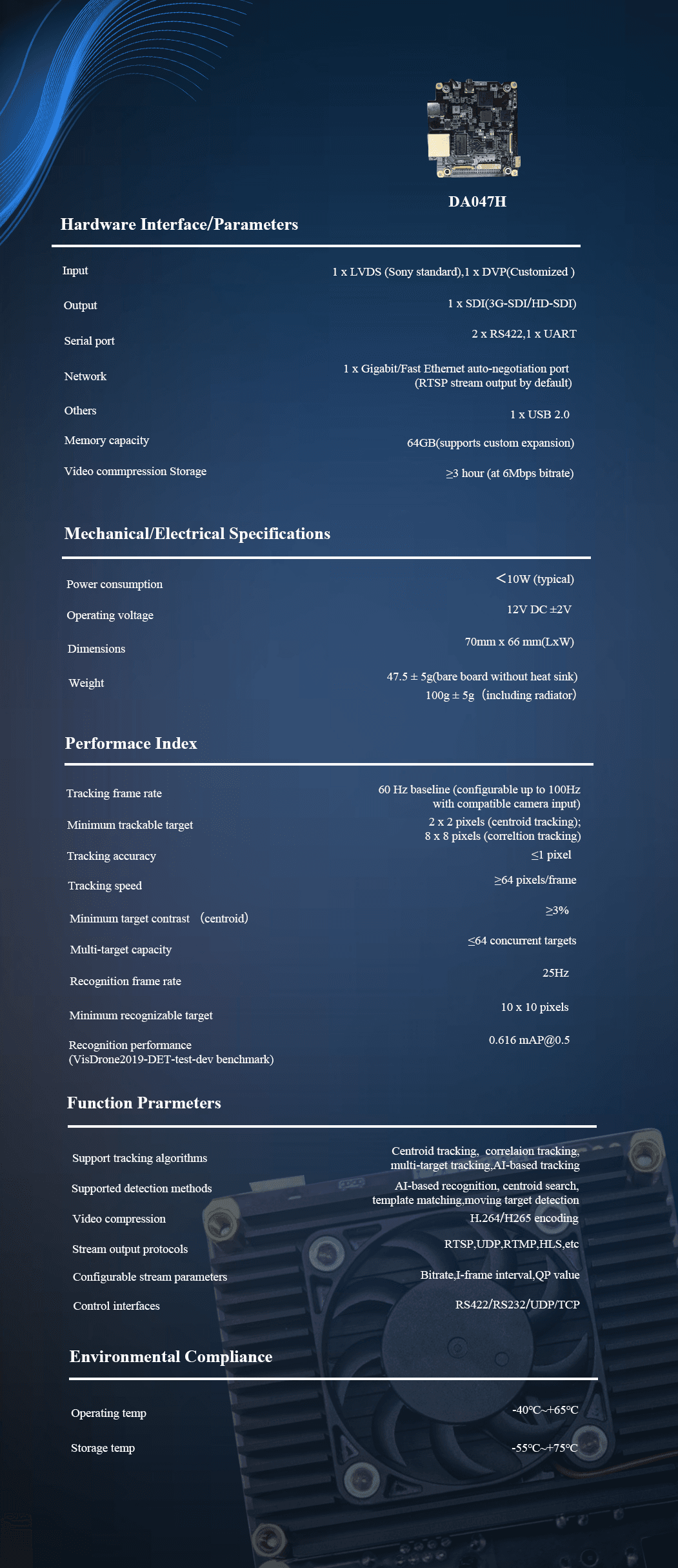

3. Detailed Technical Parameters

Parameter	Specification
Input	1 × LVDS, 1 × DVP
Output	1 × SDI
Serial ports	2 × RS422, 1 × UART
Network	1 × Gigabit Ethernet (RTSP)
Memory	64GB
Video compression storage	≥ 3 hours (at 6 Mbps)
Power consumption	< 10 W (typical)
Operating voltage	12V DC ± 2V
Dimensions	70 mm × 66 mm (L × W)
Weight	47.5 g ± 5 g (bare board) / 100 g ± 5 g (with radiator)

4. Application Scenarios

Coastal & Border Stations: Stable operation against weather and EMI.
Industrial Perimeter Security: Reliable detection in complex industrial settings.

1. Trac-DA052H Video Tracking Board Overview

The Trac-DA052H focuses on high-precision tracking with CameraLink input and network RTSP output,
aimed at long-range, mission-critical surveillance and reconnaissance.

2. Product Features

CameraLink Input: Cameralink Base input for high-bandwidth sensors.
Networking & Control: Dual RS422, Gigabit Ethernet, RTSP streaming.
Large Storage: 64GB memory, ≥3 hours recording at 6 Mbps.
High Reliability: Designed for continuous operation in demanding deployments.

3. Detailed Technical Parameters

Parameter	Specification
Input	1 × CameraLink Base (to be adapted)
Output	1 × RTSP network stream
Serial ports	2 × RS422
Network	1 × Gigabit Ethernet (RTSP)
Memory	64GB
Video compression storage	≥ 3 hours (at 6 Mbps)
Power consumption	< 10 W (typical)
Operating voltage	12V DC ± 2V
Dimensions	77 mm × 50 mm (L × W, including connector)
Weight	42.8 g ± 5 g (bare board) / 92.3 g ± 5 g (with radiator)

4. Application Scenarios

Reconnaissance Platforms: High-resolution sensors requiring CameraLink.
Border & Critical Site Monitoring: Long-range, high-precision tracking missions.
