13-inch traversing drone
13-inch traversing drone

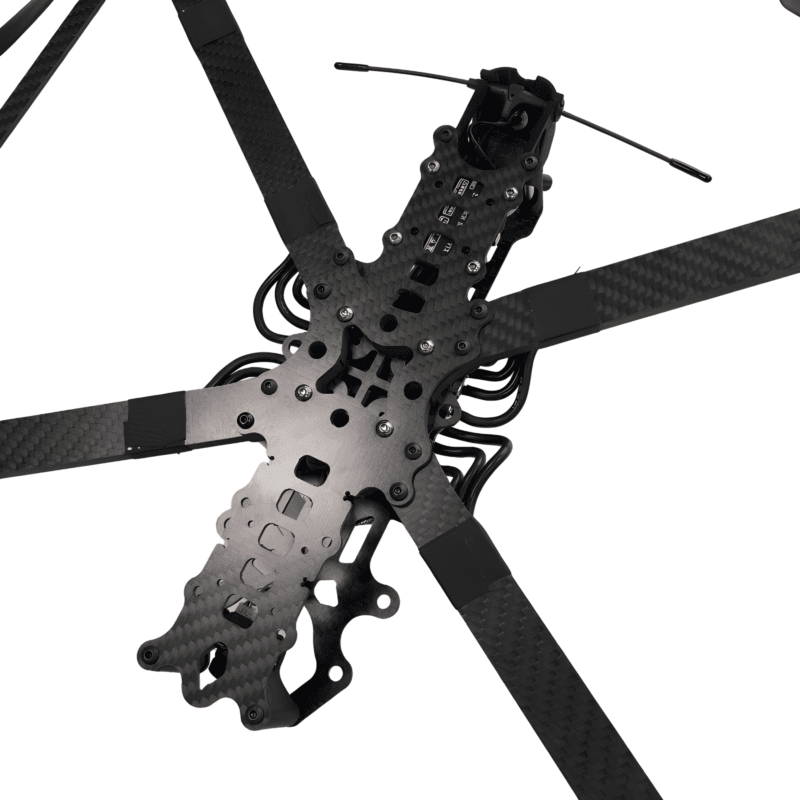

This 13-inch FPV drone is a powerful long-range quadcopter designed for heavy-duty FPV flying. It is equipped with a HAKRC F405 V2 flight controller and HK4214 80A ESC powered by 4214 400kv motors and 13-inch Gemfan propellers to ensure excellent stability and control. It is equipped with a Panda RC 5.8G 2.5W video transmitter and a Caddx H1 camera to provide high quality video at distances of 15-20 kilometers. Powered by 8S 10,000mAh batteries, the drone delivers 30-40 minutes of flight time and can carry a payload of 8-10 kilograms, making it ideal for demanding FPV applications and professional aerial operations.
This 13-inch FPV drone is a powerful long-range quadcopter designed for heavy-duty FPV flying. It is equipped with a HAKRC F405 V2 flight controller and HK4214 80A ESC powered by 4214 400kv motors and 13-inch Gemfan propellers to ensure excellent stability and control. It is equipped with a Panda RC 5.8G 2.5W video transmitter and a Caddx H1 camera to provide high quality video at distances of 15-20 kilometers. Powered by 8S 10,000mAh batteries, the drone delivers 30-40 minutes of flight time and can carry a payload of 8-10 kilograms, making it ideal for demanding FPV applications and professional aerial operations.
Description

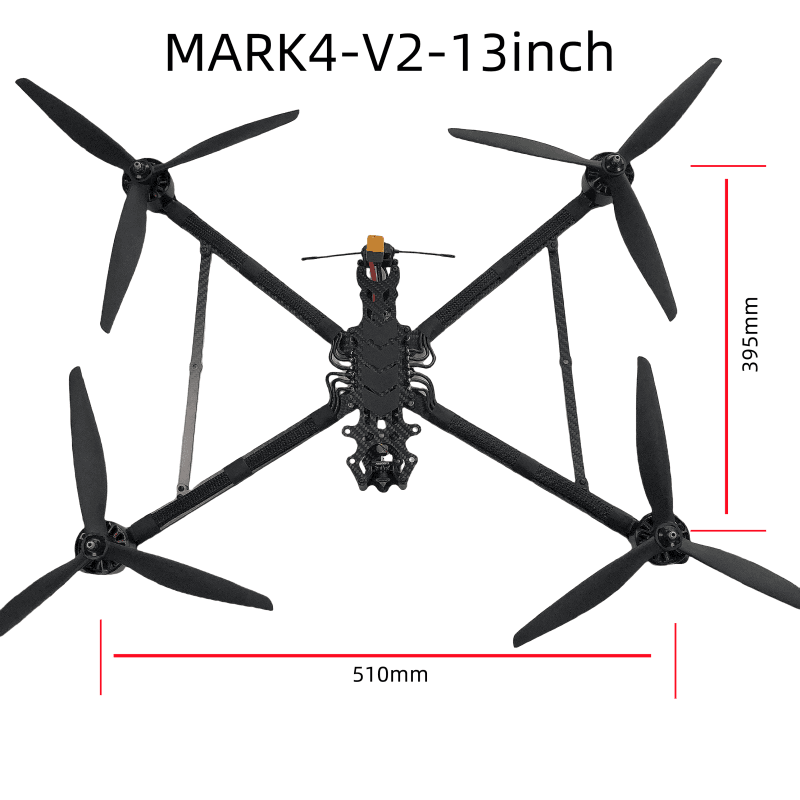

| Model | MARK4 13-inch FPV |
| Frame | GEP-MK4-13 |

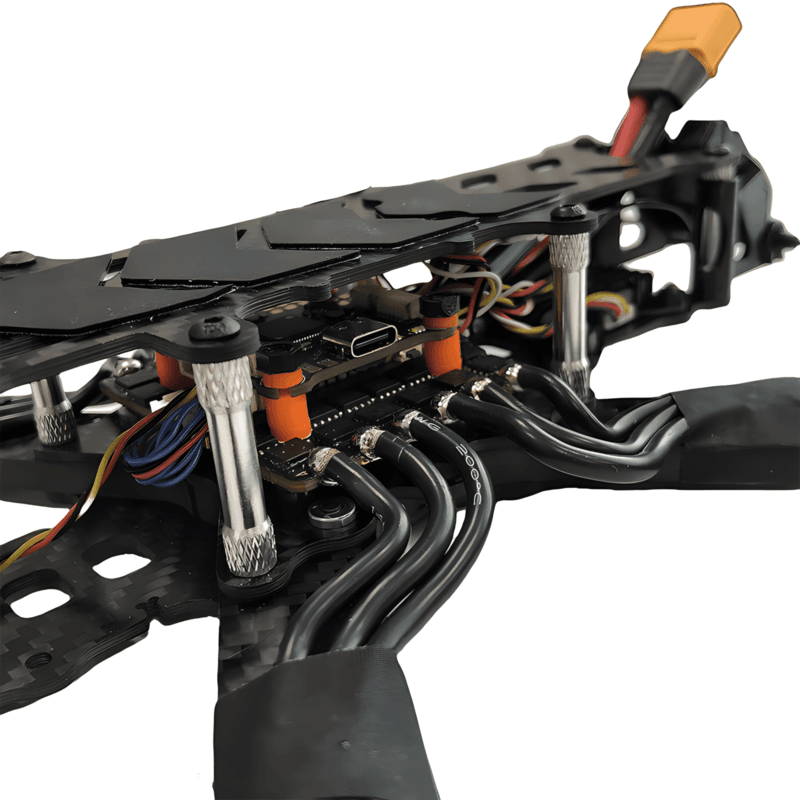

| FC/ Flight Control | HAKRC F405 V2 |
| ESC/Electron Speed Control | HK4214 80A |
| MCU | STM32F405RGT6 |
| Gyroscope | ICM-42688-P |
| OSD/On Screen Display | Betaflight OSD w/AT7456E chip |
| VTX/Video Transmitter | pandaRC 5.8G VTX 2.5W |

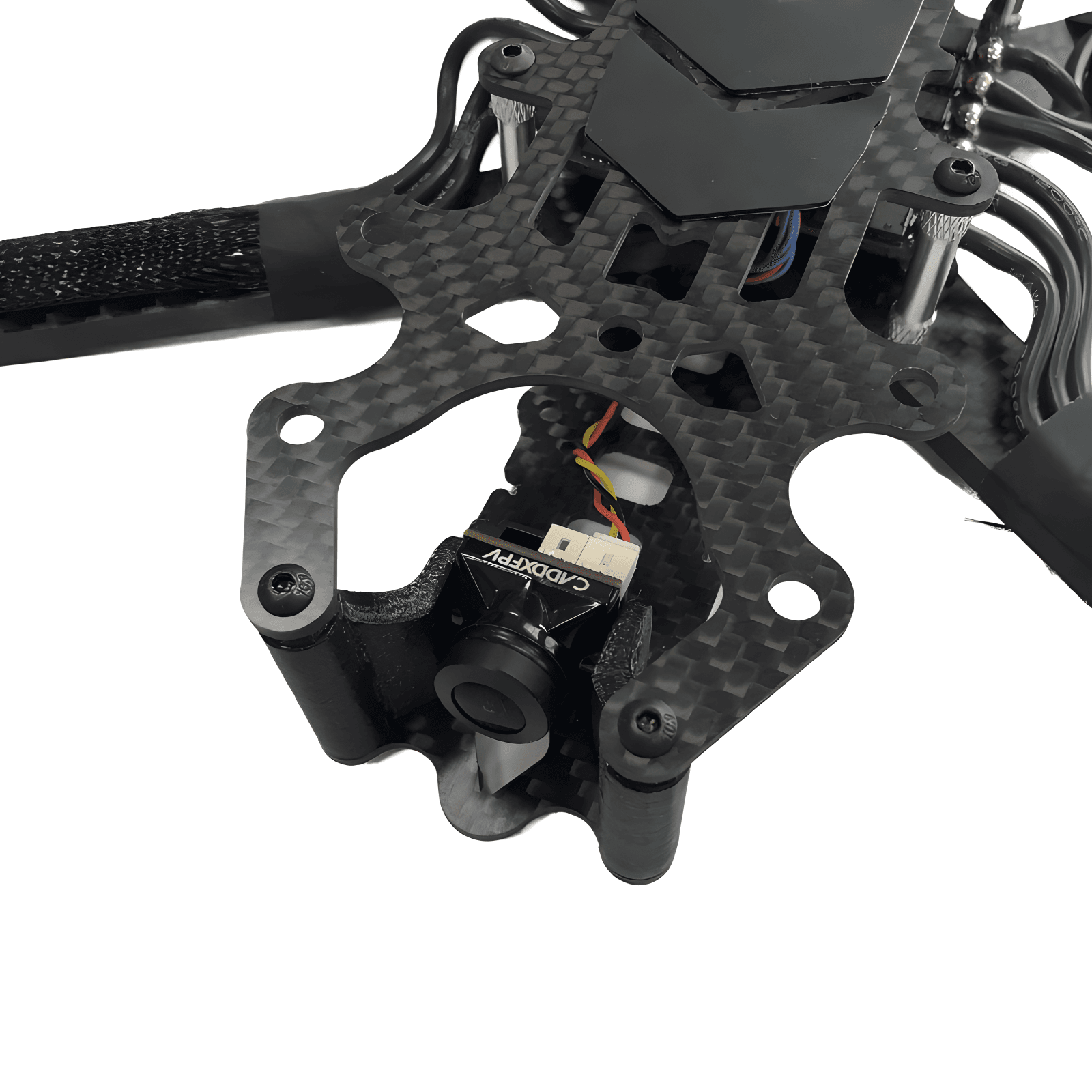

| Camera | Caddx H1 |
| Antenna | Momoda 5.8G RHCP SMA |
| Motor | CADDXFPV 4214 400kv |
| Propeller | Gemfan 1308-3 |
| Weight | 1.55kg |
| Receiver | PNP/TBS NanoRX/GEPRC ELRS24/GEPRC ELRS |
| Recommended battery | Lipo 8S 10000mah |
| Flight time | 30-40 minutes |
| Flight speed | 140-160km/h |
| flying distance | 15-20km |
| flying distance（payload） | 7km |
| carrying | 8-10kg |
Additional information
| Performance parameters | parameters |
|---|
