D-10PNP2 10-Inch PNP FPV Drone | 3K Carbon Fiber, 60 A ESC
SKU:D-10PNP2
10-inch PNP FPV drone with 3K carbon-fiber body, MARK4 frame and F405V3 controller with ICM42688 gyro, OSD, black box and barometer. Includes 3115 900 KV motors, 10×5×3 tri-blade propellers and a 4-in-1 60 A ESC rated for 70 A peak current. Supports 3–6S power, ELRS reception, a 1200 TVL camera and 5.8 GHz 1.6 W/2.5 W video transmission. Net weight is 909 g, integrating flight-control, propulsion and video hardware in a PNP platform.
- 10X5X3 Three Blade Propeller
- F405V3 ICM42688/OSD/Black Box/Barometer
- 3115 900KV
- 5.8G 1.6W / 2.5W
- 400 * 330 * 90mm
- 909g
- 60A / Peak Current: 70A (20S) Integrated Ammeter / 3-6S / BL-S
- Mark4 10"
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Model highlights
Core specifications
909gNet Weight
60A / Peak Current: 70A (20S) Integrated Ammeter / 3-6S / BL-SContinuous Current

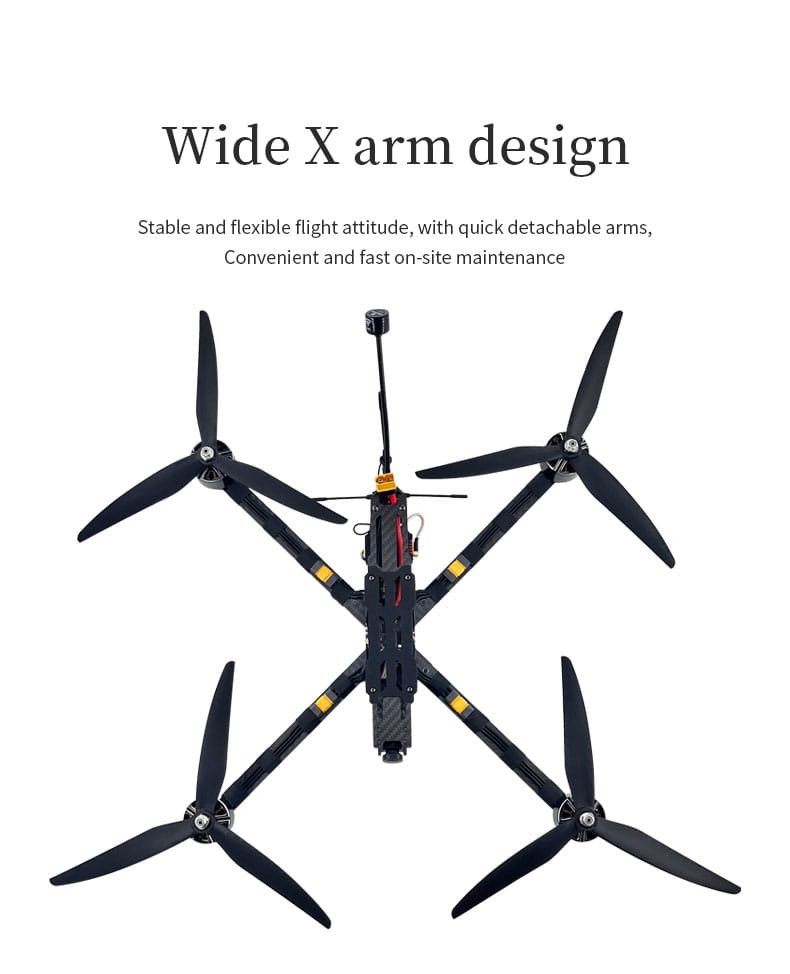

Mark4 10"Frame
Technical data
| Frame | Mark4 10" |
| Spiral Propeller Blade | 10X5X3 Three Blade Propeller |
| Flight Control | F405V3 ICM42688/OSD/Black Box/Barometer |
| Four in One Electrical Regulation | 3060S |
| Continuous Current | 60A / Peak Current: 70A (20S) Integrated Ammeter / 3-6S / BL-S |

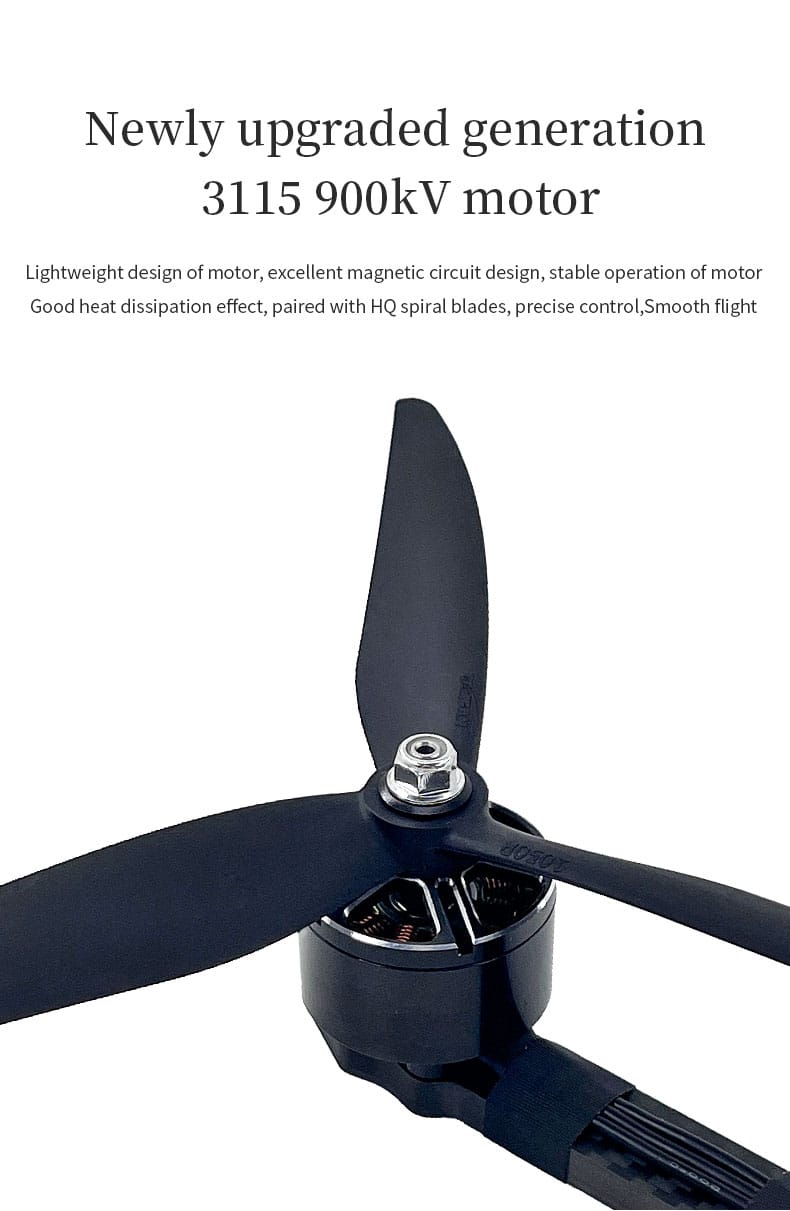

| Brushless Motor | 3115 900KV |
| Image Transmission | 5.8G 1.6W / 2.5W |
| Lollipop Antenna | SMA Internal Needle (150mm) |

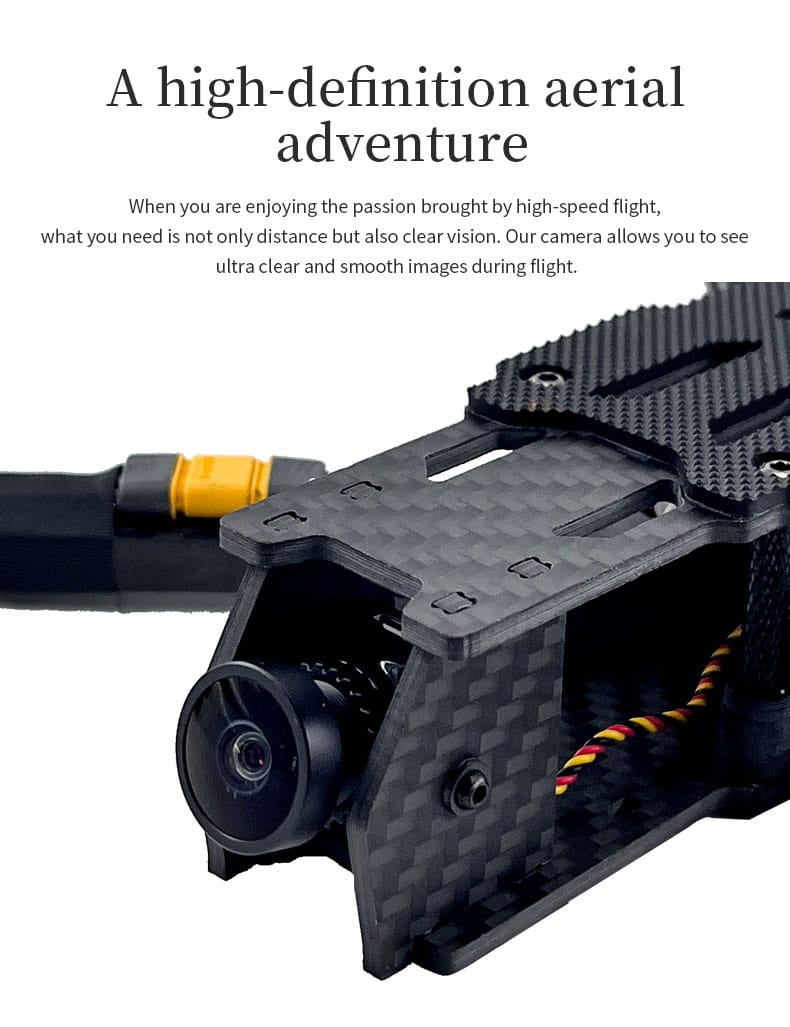

| Camera | 1200TVL 19X19mm |
| Receiver | ELRS |
| Net Weight | 909g |

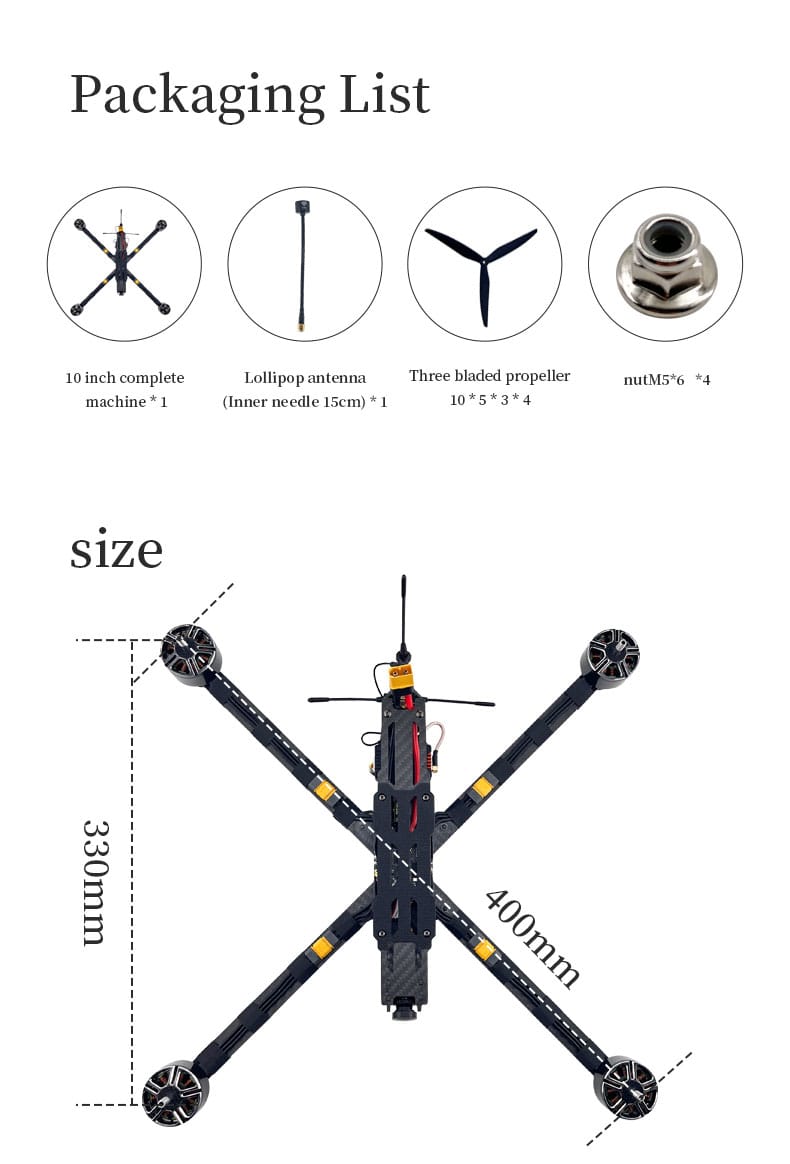

| Packaging Size | 400 * 330 * 90mm |
1. Features & applications

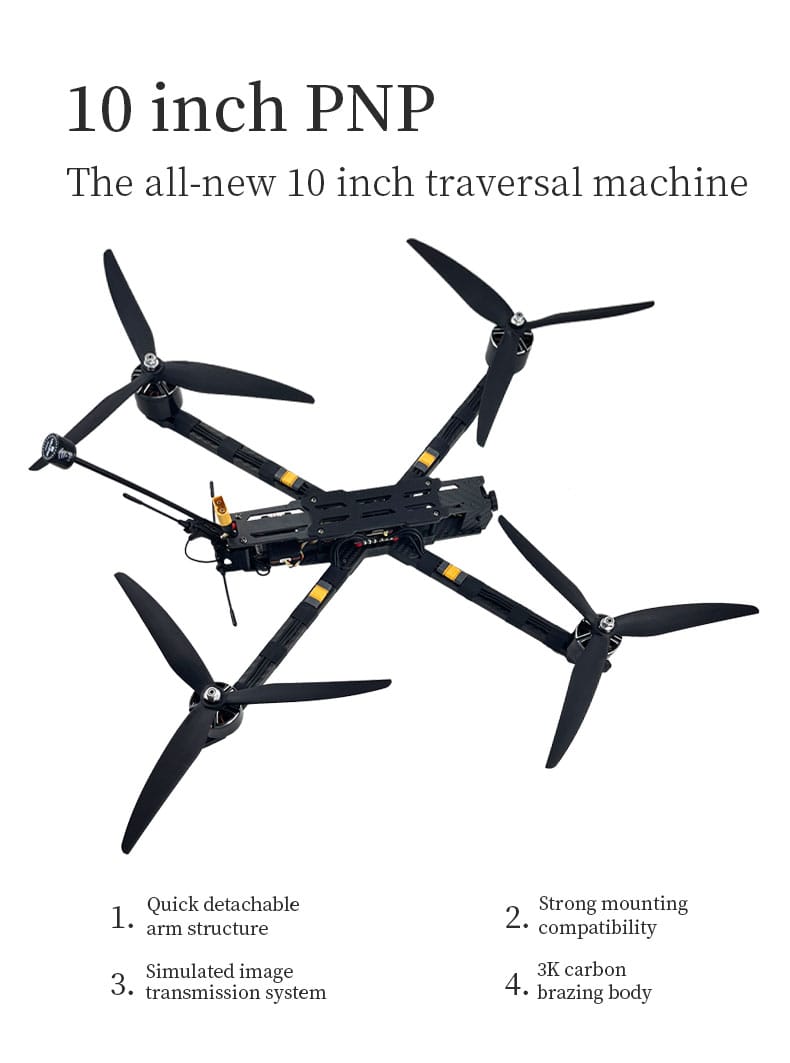

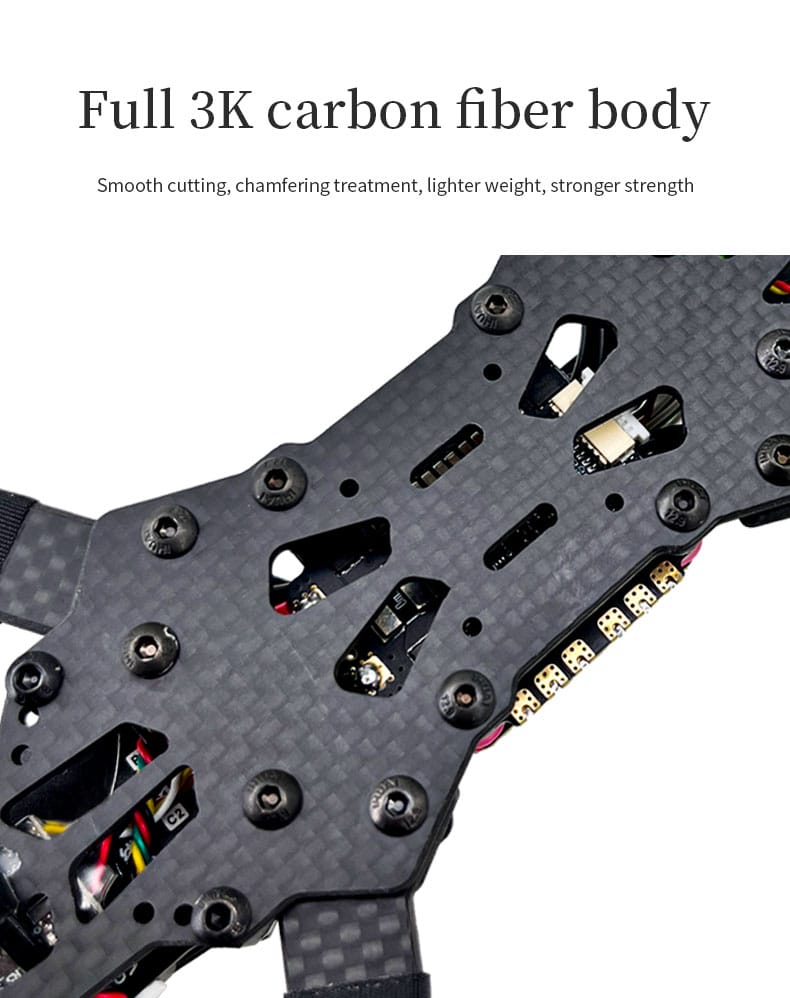

10-inch PNP Traversal Machine, 3K Carbon Fibre Body Device Specifications
