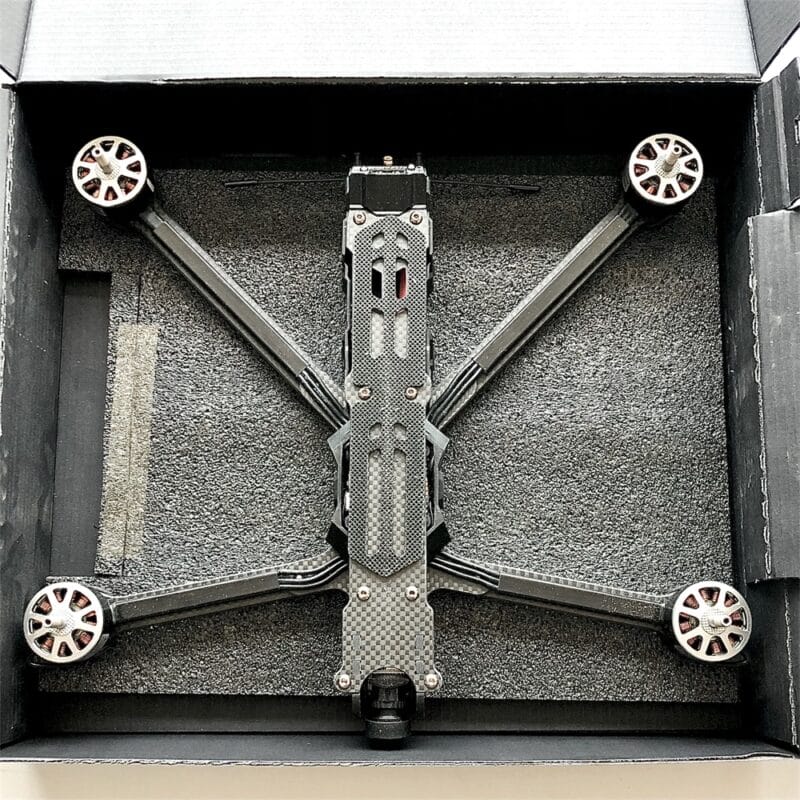

DA-015 15-Inch MARK4 FPV Drone | 110 A ESC, 30–40 min Flight Time
15-inch MARK4 FPV with GEP-MK4-15 frame, HAKRC F405 V2 controller, 110 A ESC and CADDXFPV 4315 450 KV motors. Includes Betaflight OSD, 5.8 GHz 3 W pandaRC VTX and selectable TBS NanoRX/ELRS receivers. Weighs 1.65 kg; recommended battery is 8S 12,600 mAh LiPo. Published figures include 30–40 min flight time, 140–160 km/h speed, 15–20 km flight distance, 7 km loaded flight distance and 10–12 kg carrying capacity.
- GEP-MK4-15
- HAKRC F405 V2
- CADDXFPV 4315 450kv
- Lipo 8S 12600mah
- 15-20km
- 7km
- 1.65kg
- 140-160km/h
- 110A
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Core specifications
Technical data
| Model |
MARK4 15-inch FPV |
| Frame |
GEP-MK4-15 |
| FC/ Flight Control |
HAKRC F405 V2 |
| ESC/Electron Speed Control |
110A |
| MCU |
STM32F405RGT6 |
| Gyroscope |
ICM-42688-P |
| OSD/On Screen Display |
Betaflight OSD w/AT7456E chip |
| VTX/Video Transmitter |
pandaRC 5.8G VTX 3W |
| Camera |
MINI |
| Antenna |
Momoda 5.8G RHCP SMA |
| Motor |
CADDXFPV 4315 450kv |
| Propeller |
Gemfan 1308-3 |
| Weight |
1.65kg |
| Receiver |
PNP/TBS NanoRX/GEPRC ELRS24/GEPRC ELRS 915 |
| Recommended battery |
Lipo 8S 12600mah |
| Flight time |
30-40 minutes |
| Flight speed |
140-160km/h |
| flying distance |
15-20km |
| flying distance（payload） |
7km |
| carrying |
10-12kg |
1. Features & applications
MARK4 15-inch FPV
GEP-MK4-15
HAKRC F405 V2
Control
110A
STM32F405RGT6
ICM-42688-P
Betaflight OSD w/AT7456E chip
pandaRC 5.8G VTX 3W
MINI
Momoda 5.8G RHCP SMA
CADDXFPV 4315 450kv
Gemfan 1308-3
1.65kg
PNP/TBS NanoRX/GEPRC ELRS24/GEPRC ELRS
915
Lipo 8S 12600mah
30-40 minutes
140-160km/h
15-20km
distance（payload）
7km
10-12kg
