D-7PNP1 7-Inch PNP FPV Drone | MARK4, 60 A ESC, ELRS

SKU:D-7PNP1

7-inch PNP FPV drone built on a wide-X MARK4 frame with RCF405V3 controller, ICM42688 gyro, OSD, black box and barometer. Includes 2810 1350 KV motors, HQProp 7×3.5×3 propellers and a 4-in-1 60 A ESC rated for 70 A peak current. Supports 3–6S power, ELRS reception, a 1200 TVL camera and 5.8 GHz 1.6 W/2.5 W video transmission. Net weight is 500 g, combining the listed flight-control, propulsion and video hardware in one PNP configuration.

Mark4 7'
HQProp 7X3.5X3 Three bladed propeller
RCF405V3 ICM42688/OSD/Black Box/Barometer/
2810 1350kv
5.8G 1.6W/2.5W
340*300*80mm
500g
60A/peak current:70A [20S] Integrated ammeter/3-6S/BL-S
Type-C

Plan your product inquiry.

Add this product to your quote list or contact our team to discuss product selection and integration.

Add To Quote

Model highlights

Core specifications

500gNet weight

60A/peak current:70A [20S] Integrated ammeter/3-6S/BL-SContinuous current

Type-COutput power supply

Technical data

Parameter	Specification
Frame	Mark4 7'

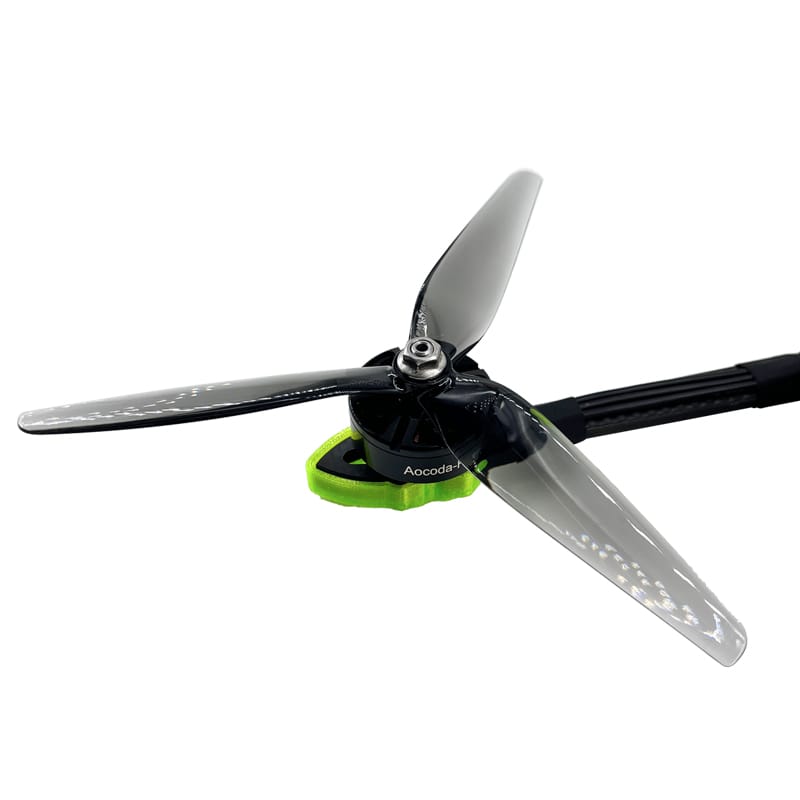

Spiral propeller blade	HQProp 7X3.5X3 Three bladed propeller
Flight control	RCF405V3 ICM42688/OSD/Black Box/Barometer/
Four in one electrical regulation	RC 3060S
Continuous current	60A/peak current:70A [20S] Integrated ammeter/3-6S/BL-S
Brushless motor	2810 1350kv
Image transmission	5.8G 1.6W/2.5W
Lollipop antenna	SMA internal needle (150mm)
Camera	1200TVL 19X19mm
Receiver	ELRS
Output power supply	Type-C
Net weight	500g
Packaging size	34030080mm
