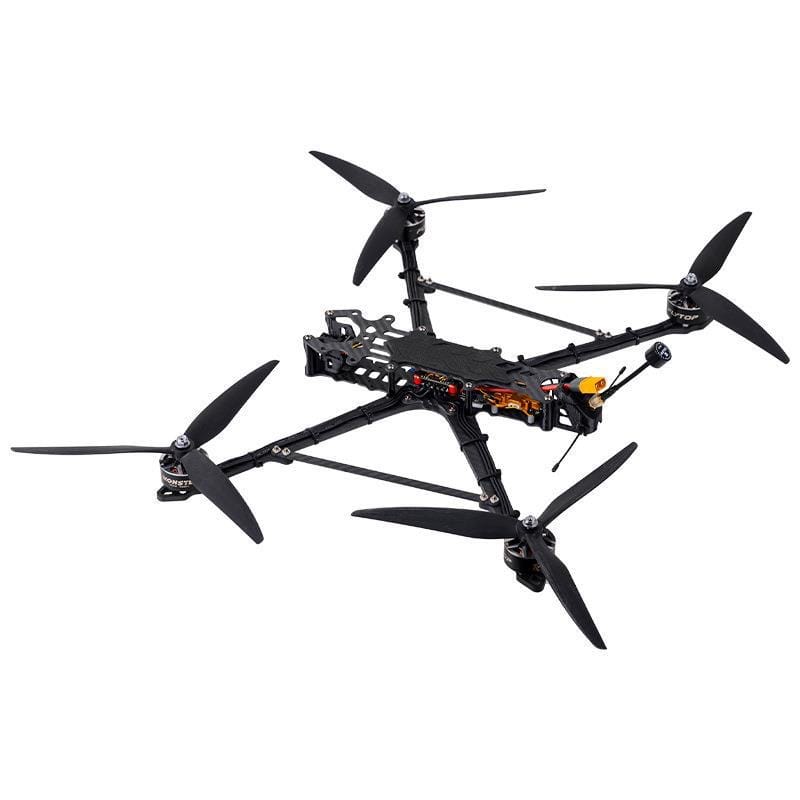

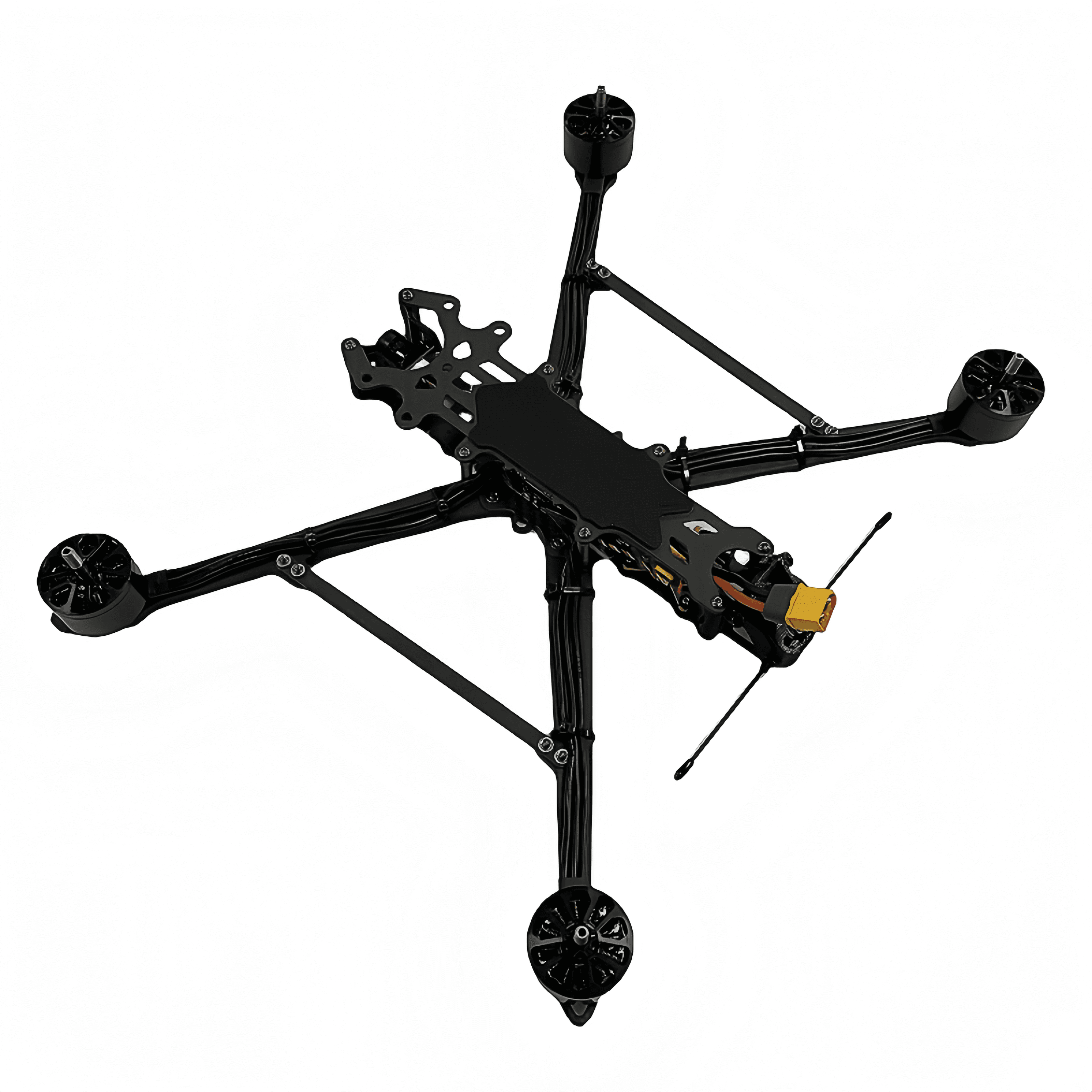

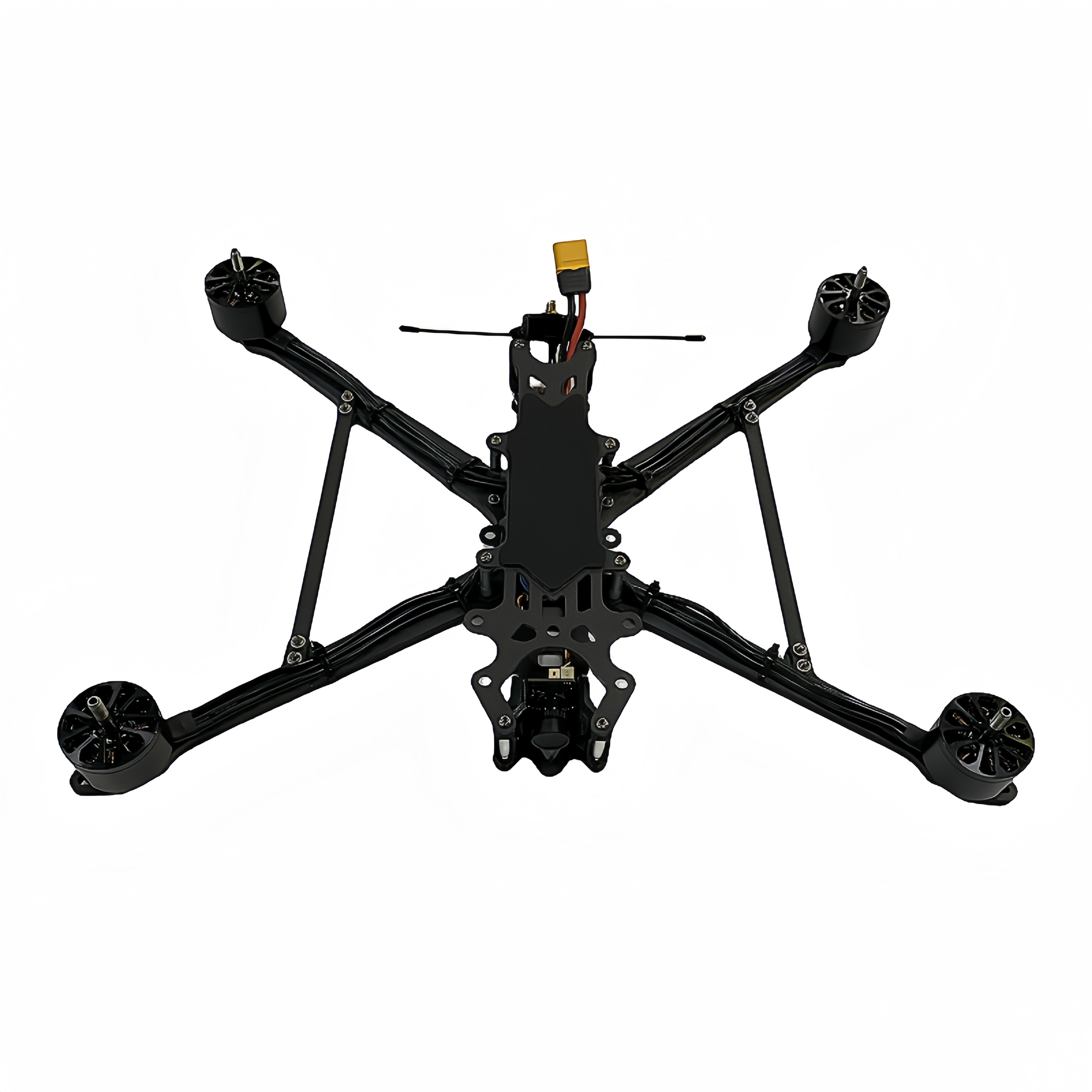

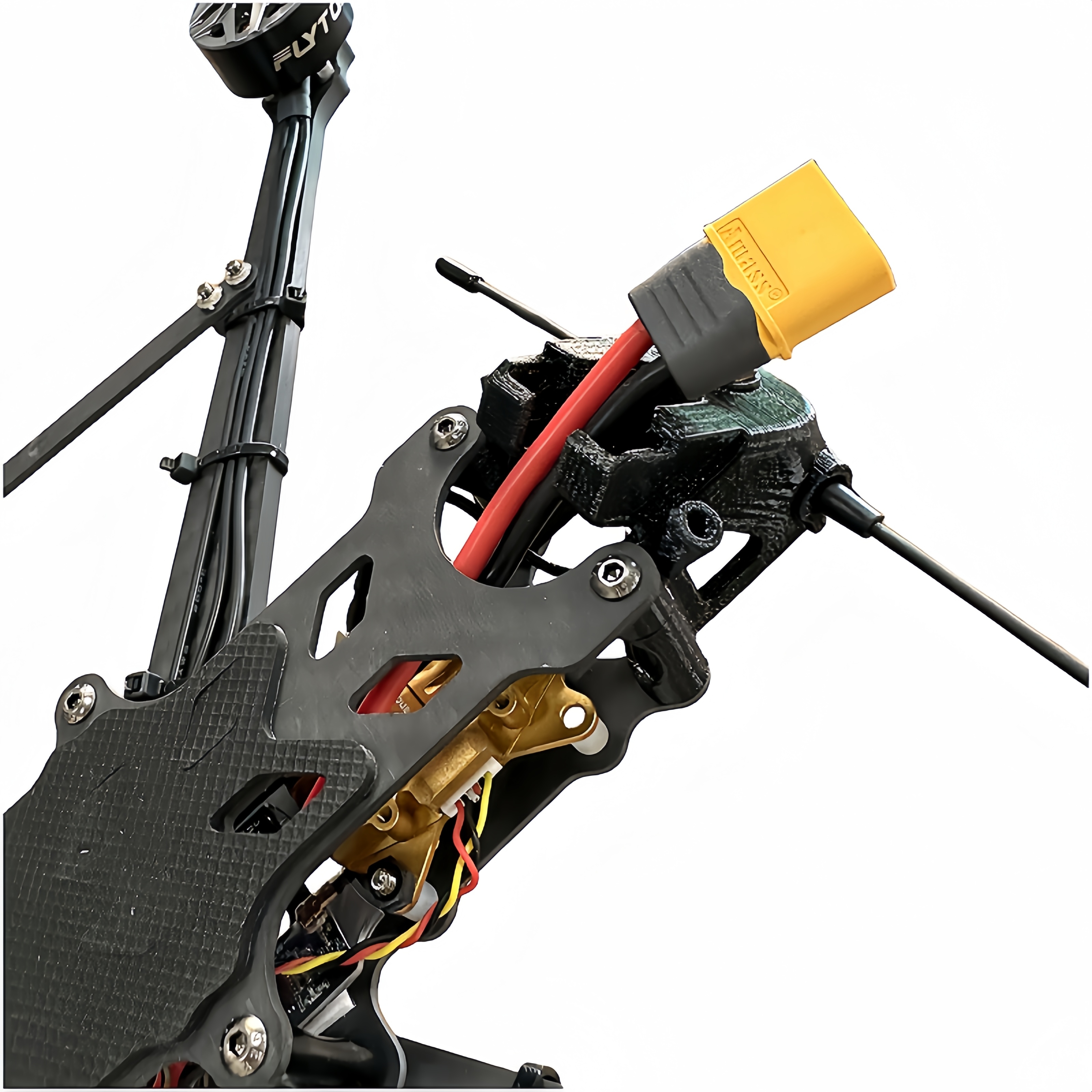

DA-009 9-Inch MARK4 FPV Drone | F405 V2, 21–30 min Flight Time
9-inch MARK4 FPV with GEP-MK4-9 frame, HAKRC F405 V2 controller, ICM-42688-P gyro and 4-in-1 50 A ESC. Includes CADDXFPV 2812 900 KV motors, Caddx H1 camera and 5.8 GHz 2.5 W pandaRC VTX. Recommended battery is 22.2 V 6,000 mAh 100C. Published flight time is 21–30 min, speed 120–150 km/h and flight distance 15–20 km, with 15 km video transmission. Receiver options include PNP, TBS NanoRX and GEPRC ELRS.
- GEP-MK4-9
- HAKRC F405 V2
- CADDXFPV 2812 900kv
- 22.2V 6000mAh 100C
- 15km
- 15-20km
- 120-150km/h
- 4-in-1 50A
- ICM-42688-P
Plan your product inquiry.
Add this product to your quote list or contact our team to discuss product selection and integration.
Core specifications
Technical data
| Model |
MARK4 9-inch FPV |
| Frame |
GEP-MK4-9 |
| FC/ Flight Control |
HAKRC F405 V2 |
| ESC/Electron Speed Control |
4-in-1 50A |
| MCU |
STM32F405RGT6 |
| Gyroscope |
ICM-42688-P |
| OSD/On Screen Display |
Betaflight OSD w/AT7456E chip |
| VTX/Video Transmitter |
pandaRC 5.8G VTX 2.5W |
| Camera |
Caddx H1 |
| Antenna |
Momoda 5.8G RHCP SMA |
| Motor |
CADDXFPV 2812 900kv |
| Propeller |
9 inch propeller |
| Receiver |
PNP/TBS NanoRX/GEPRC ELRS24/GEPRC ELRS 915 |
| Recommended battery |
22.2V 6000mAh 100C |
| Flight time |
21-30 minutes |
| Flight speed |
120-150km/h |
| Image transmission distance |
15km |
| Flying distance |
15-20km |
| Transmitter |
2.5W |
1. Features & applications
MARK4 9-inch FPV
GEP-MK4-9
HAKRC F405 V2
Control
4-in-1 50A
STM32F405RGT6
ICM-42688-P
Betaflight OSD w/AT7456E chip
pandaRC 5.8G VTX 2.5W
Caddx H1
Momoda 5.8G RHCP SMA
CADDXFPV 2812 900kv
9 inch propeller
PNP/TBS NanoRX/GEPRC ELRS24/GEPRC ELRS
915
22.2V 6000mAh 100C
21-30 minutes
120-150km/h
distance
15km
15-20km
2.5W
