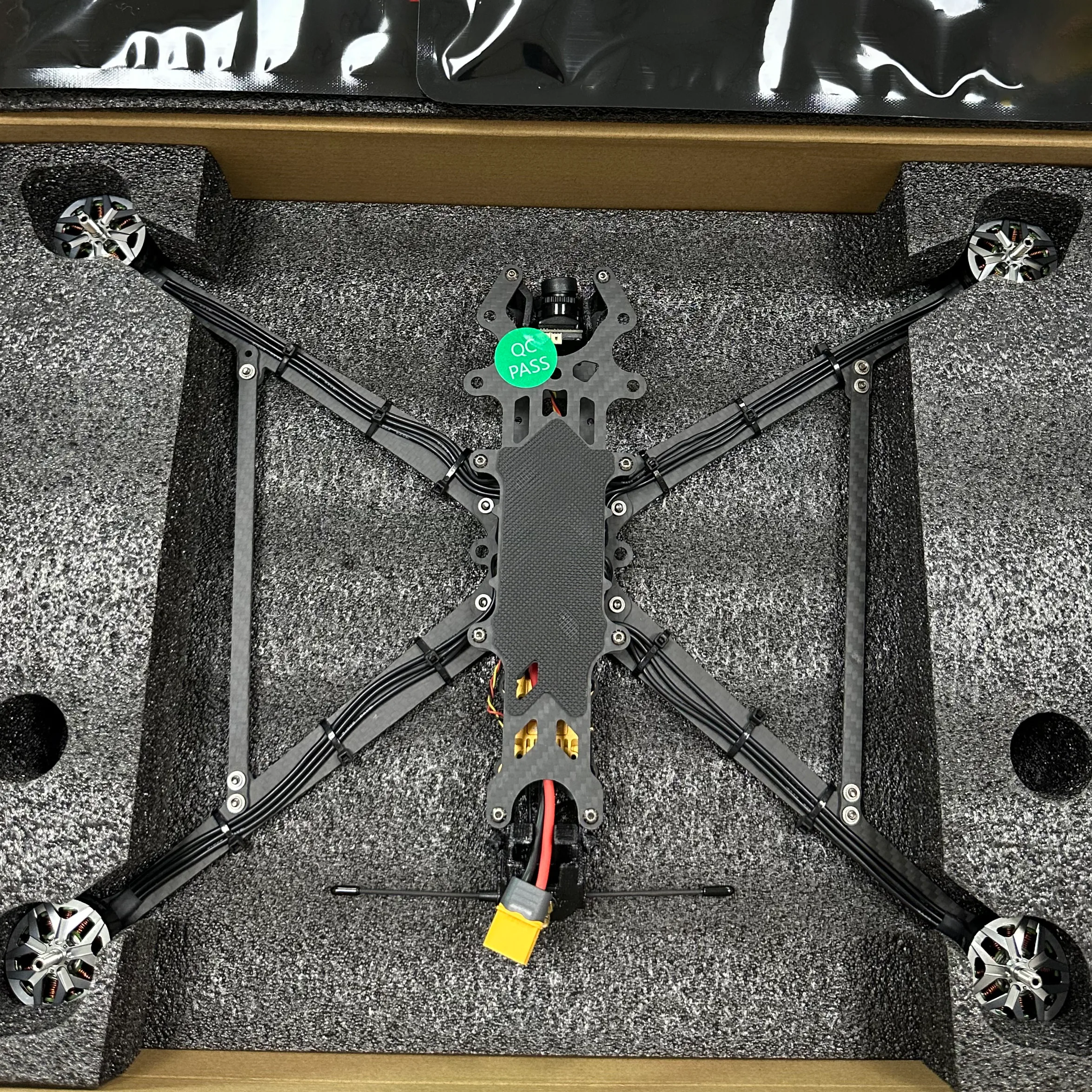

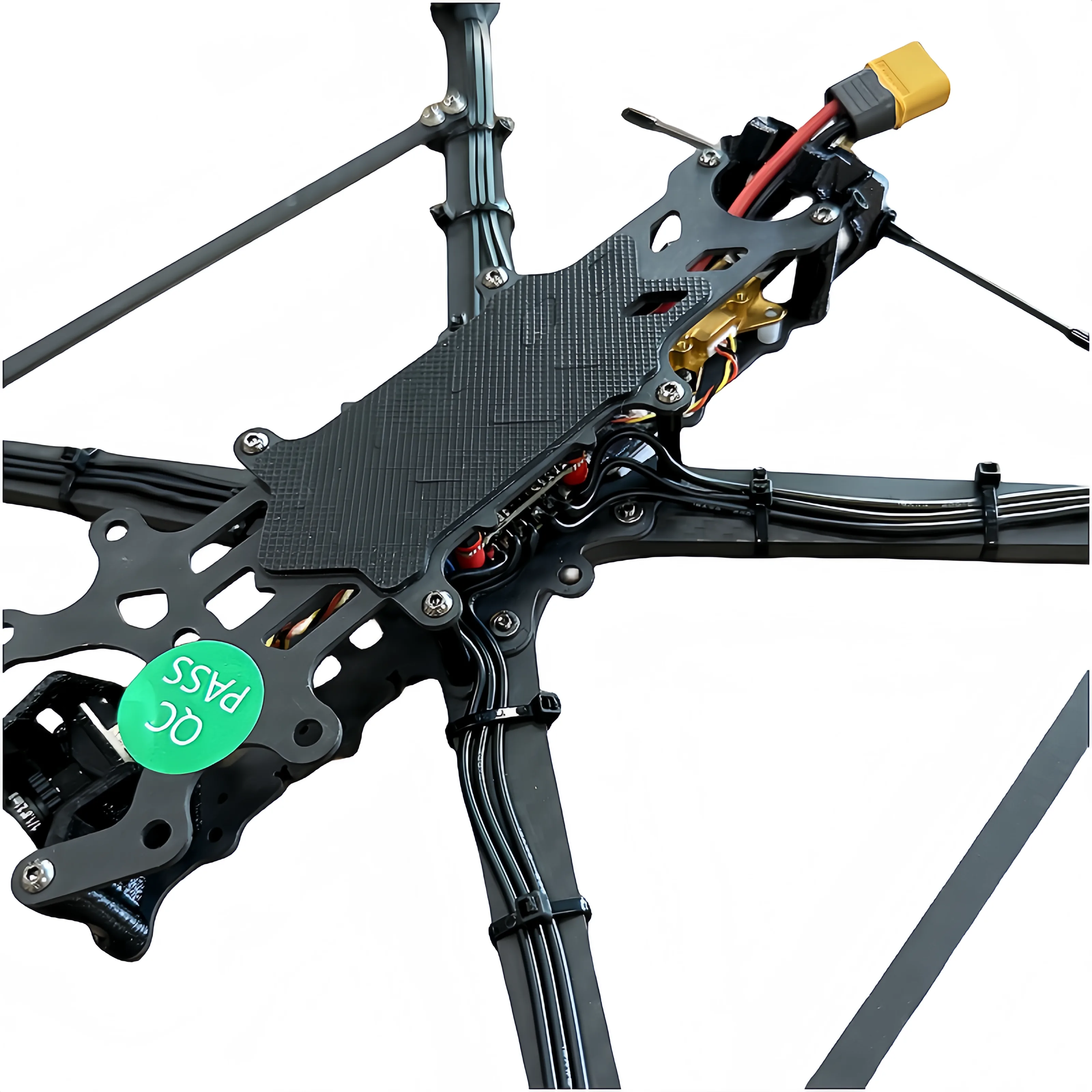

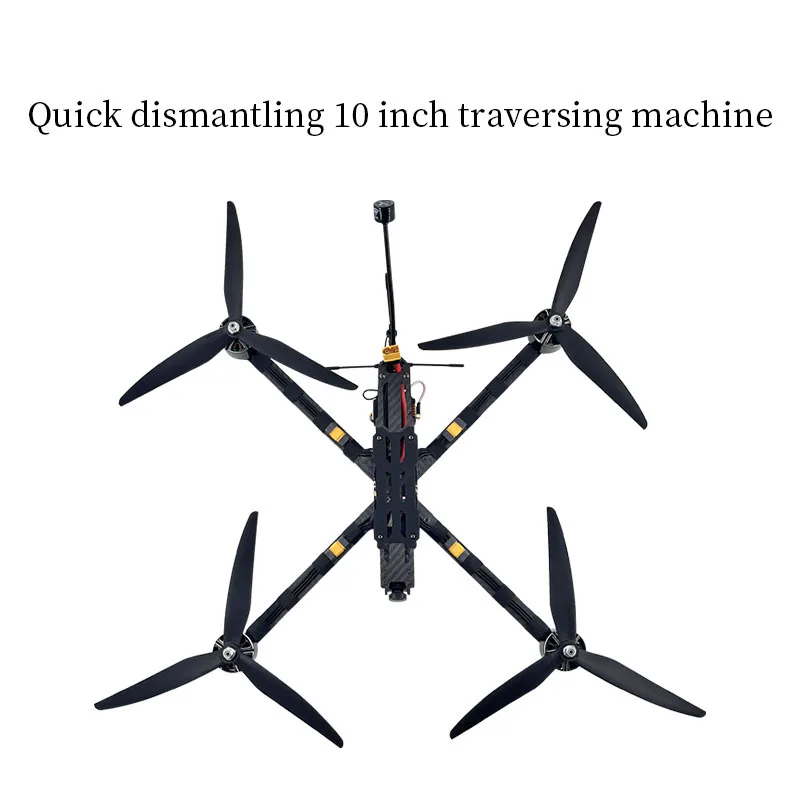

10-inch traversing drone
10-inch traversing drone

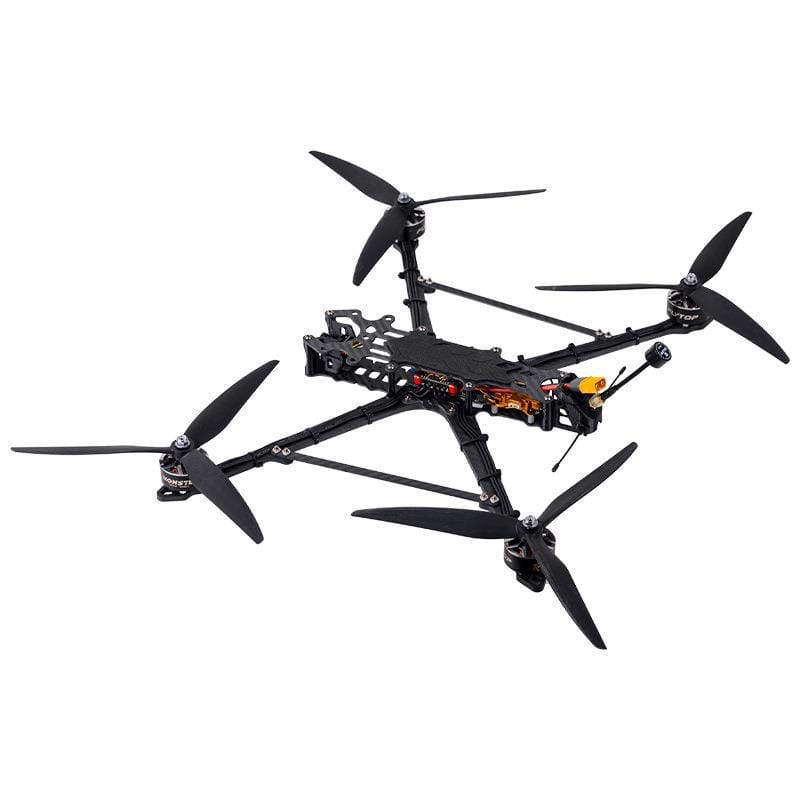

This 10-inch FPV drone is a rugged, high-performance quadcopter designed for long-range and high-speed flights. It features a HAKRC F405 V2 flight controller and HK3115 60A ESC with 3115 900kv motors and 10-inch Gemfan propellers for enhanced stability and control. It is equipped with a 2.5W video transmitter and a Caddx H1 camera that provides live video transmission over 15km. The drone’s 6S 9000mAh battery provides 21-30 minutes of flight time and can reach speeds of up to 150 kilometers per hour. It can carry a payload of 3-5 kilograms, making it ideal for heavy-duty FPV applications.
This 10-inch FPV drone is a rugged, high-performance quadcopter designed for long-range and high-speed flights. It features a HAKRC F405 V2 flight controller and HK3115 60A ESC with 3115 900kv motors and 10-inch Gemfan propellers for enhanced stability and control. It is equipped with a 2.5W video transmitter and a Caddx H1 camera that provides live video transmission over 15km. The drone’s 6S 9000mAh battery provides 21-30 minutes of flight time and can reach speeds of up to 150 kilometers per hour. It can carry a payload of 3-5 kilograms, making it ideal for heavy-duty FPV applications.
Description

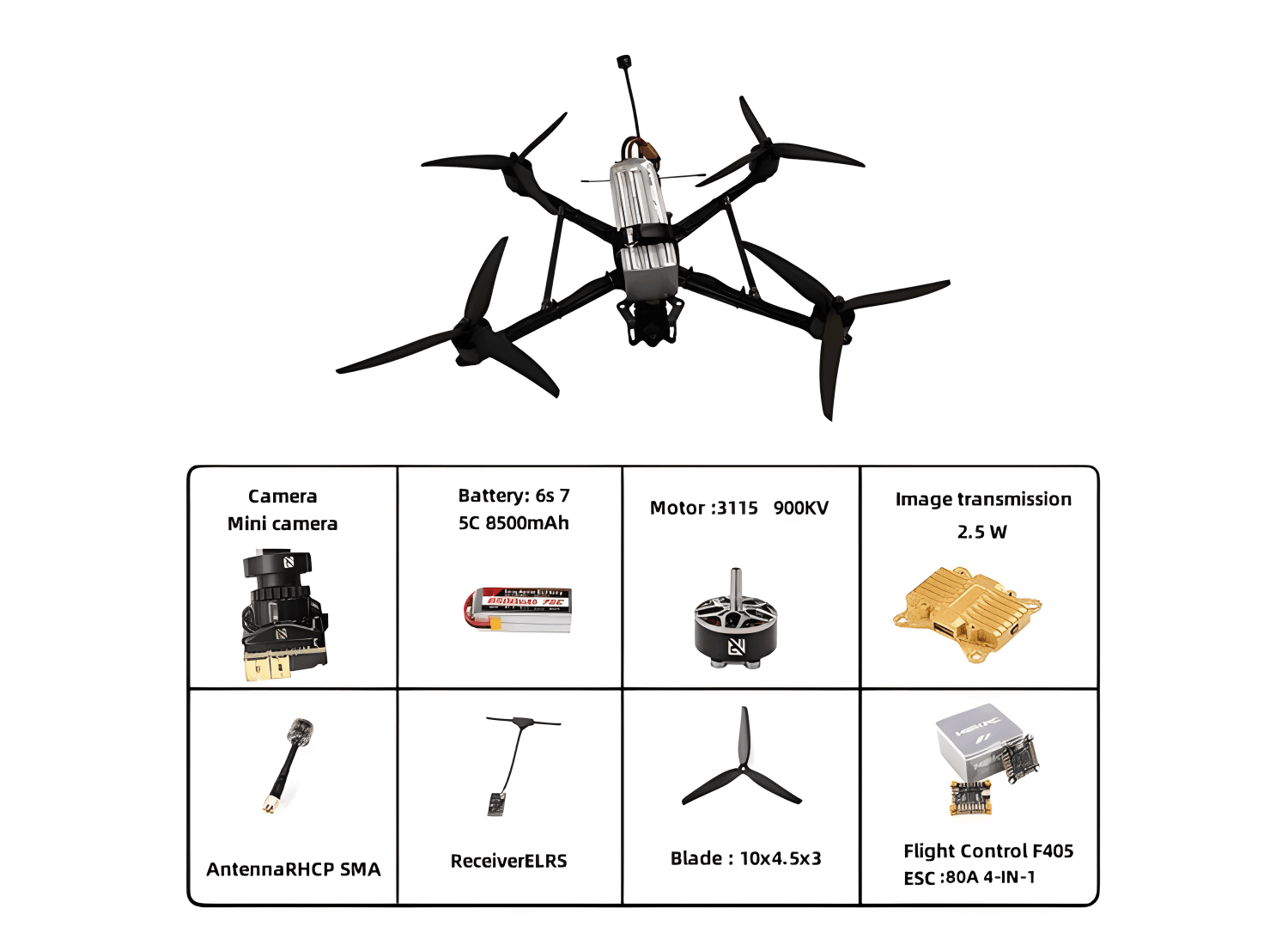

| Model | MARK4 10-inch FPV |
| Frame | GEP-MK4-10 |
| FC/ Flight Control | HAKRC F405 V2 |
| ESC/Electron Speed Control | HK3115 60A |
| MCU | STM32F405RGT6 |
| Gyroscope | ICM-42688-P |
| OSD/On Screen Display | Betaflight OSD w/AT7456E chip |

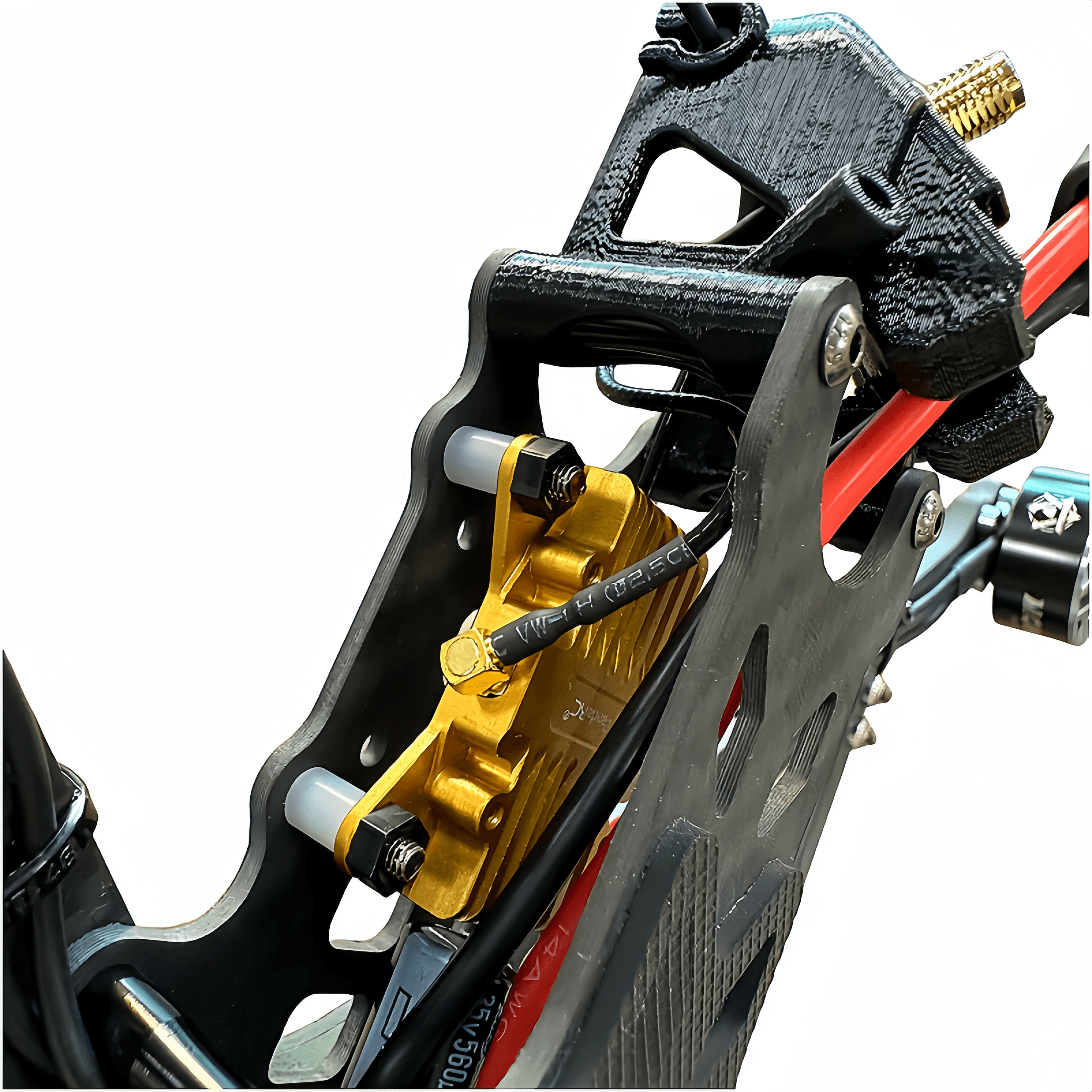

| VTX/Video Transmitter | pandaRC 5.8G VTX 2.5W |
| Camera | Caddx H1 |
| Antenna | Momoda 5.8G RHCP SMA |
| Motor | CADDXFPV 3115 900kv |
| Propeller | Gemfan 1050-3 |
| Weight | 1500g |
| Receiver | PNP/TBS NanoRX/GEPRC ELRS24/GEPRC ELRS |
| Recommended battery | Lipo 6S 9000mah |
| Flight time | 21-30 minutes |
| Flight speed | 120-150km/h |
| Image transmission distance | 15km |
| Flying distance | 15-20km |
| Payload | 3-5kg |
Additional information
| Performance parameters | parameters |
|---|
