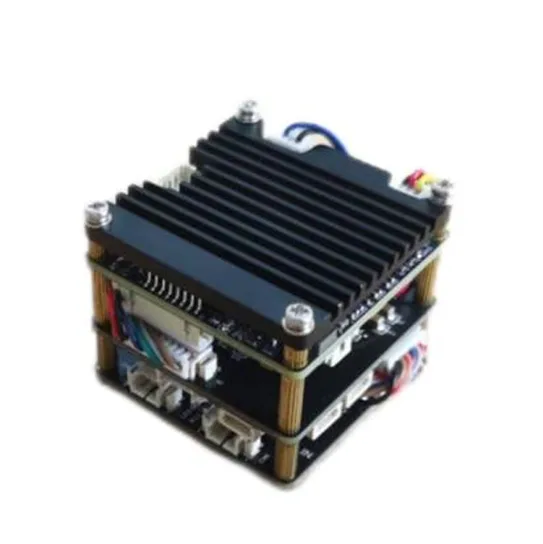

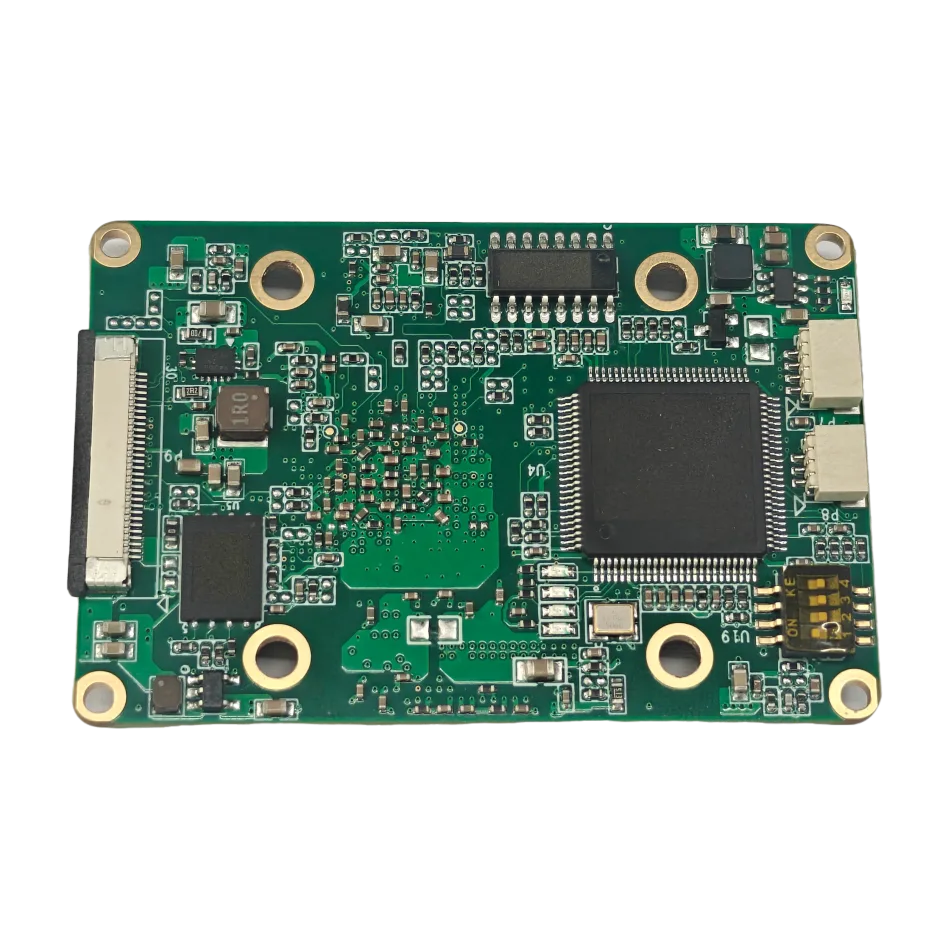

Drone AI Intelligent Tracking Module
Drone AI Intelligent Tracking Module
This drone AI intelligent tracking module integrates multiple video transmission and control interfaces, designed for precise target tracking in complex environments. It achieves accurate target locking and automatic tracking through image contrast technology and supports manual adjustments. Its automatic stabilization in ANGLE mode provides enhanced stability and control experience for drone operations. The module is compatible with BF and INAV flight control firmware and is suitable for long-distance control needs, with a maximum control range of up to 20 km.
This drone AI intelligent tracking module integrates multiple video transmission and control interfaces, designed for precise target tracking in complex environments. It achieves accurate target locking and automatic tracking through image contrast technology and supports manual adjustments. Its automatic stabilization in ANGLE mode provides enhanced stability and control experience for drone operations. The module is compatible with BF and INAV flight control firmware and is suitable for long-distance control needs, with a maximum control range of up to 20 km.
Description
Drone AI Intelligent Tracking Module
This drone AI intelligent tracking module integrates multiple video transmission and control interfaces, designed for precise target tracking in complex environments. It achieves accurate target locking and automatic tracking through image contrast technology and supports manual adjustments. Its automatic stabilization in ANGLE mode provides enhanced stability and control experience for drone operations. The module is compatible with BF and INAV flight control firmware and is suitable for long-distance control needs, with a maximum control range of up to 20 km.
Product Features
- Intelligent Tracking: Automatically locks onto targets using image contrast technology, supports various video transmission formats, and adapts to efficient tracking in complex environments.
- Automatic Stabilization: In ANGLE mode, the drone maintains level attitude automatically, suitable for stable flight and precise shooting tasks.
- Multiple Interfaces: Supports a wide range of communication and video transmission interfaces, facilitating integration with different types of drone systems.
- Long-Distance Control: Supports a control range of up to 20 km, ideal for long-distance missions.
Parameter Table
| Category | Parameter | Description |
|---|---|---|

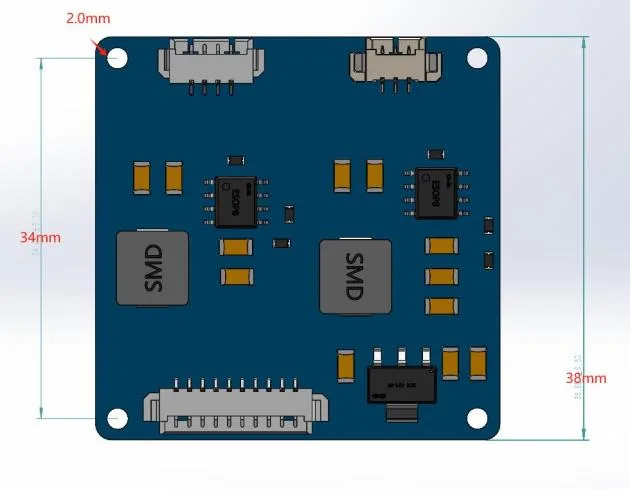

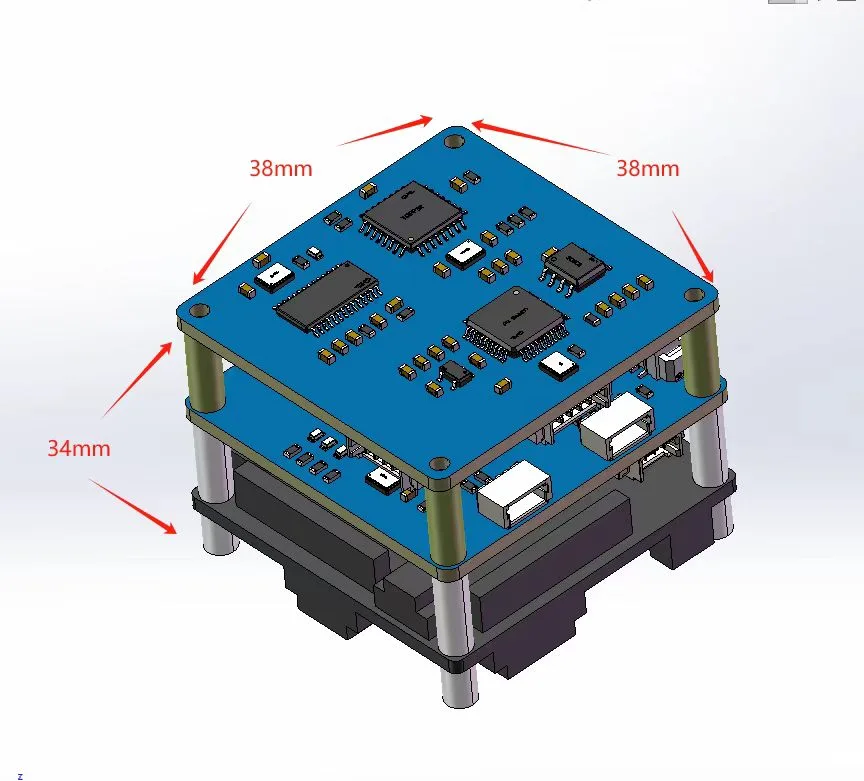

| Basic Parameters | Size | 38mm × 38mm × 40mm |
| Weight | 55g | |
| Power Consumption | ≤ 6W | |
| Operating Voltage | 16-30V (4S-6S) | |

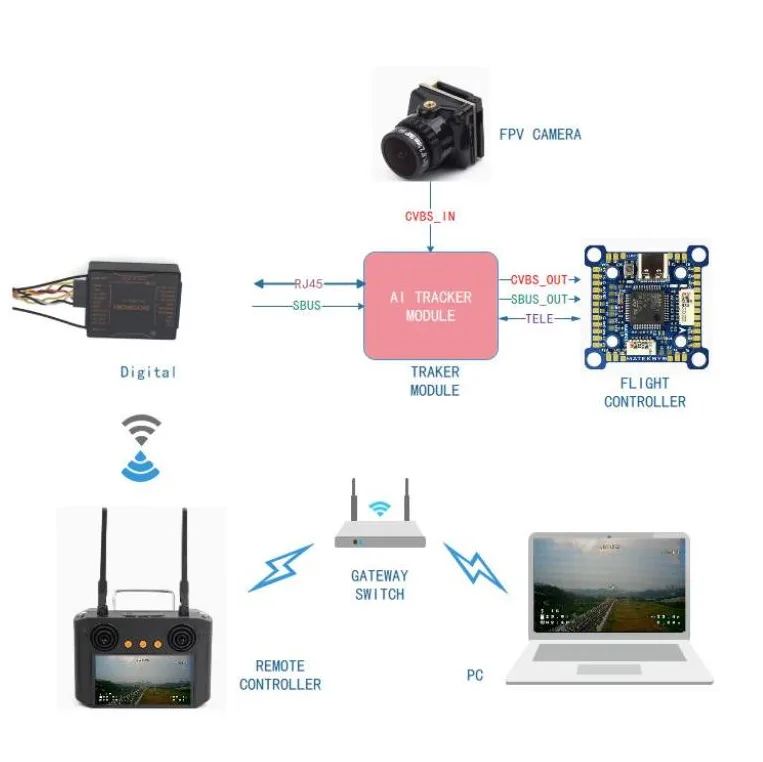

| Interface | Supported Interfaces | CVBS, UART, RJ45, USB, SBUS, CRSF |
| Features | Mode | ANGLE mode, automatic stabilization of drone attitude |
| Video Transmission | Supports analog and digital video transmission, RTSP stream supported | |
| Maximum Control Distance | 20 km | |
| Manual Adjustment | Supports manual adjustment of the tracking target position | |
| Initial Tracking Box Selection | Supports multiple initial tracking boxes (large, medium, small) | |
| Compatibility | Flight Control Firmware | Supports BF and INAV firmware |
| Power Support | Can provide 12V power to the camera | |

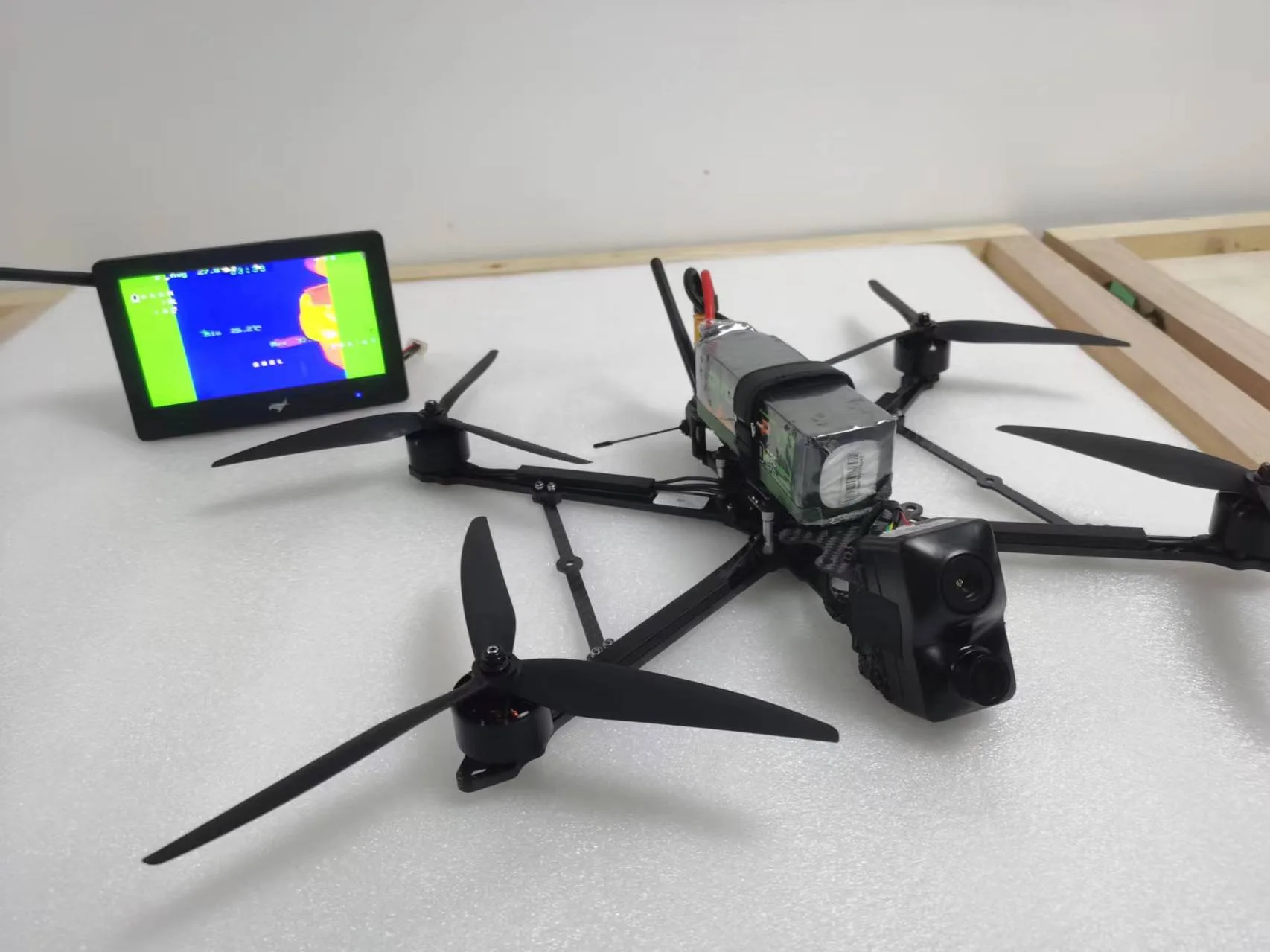

| Installation | Installation Options | Can be embedded in the FPV frame or installed in other suitable locations |

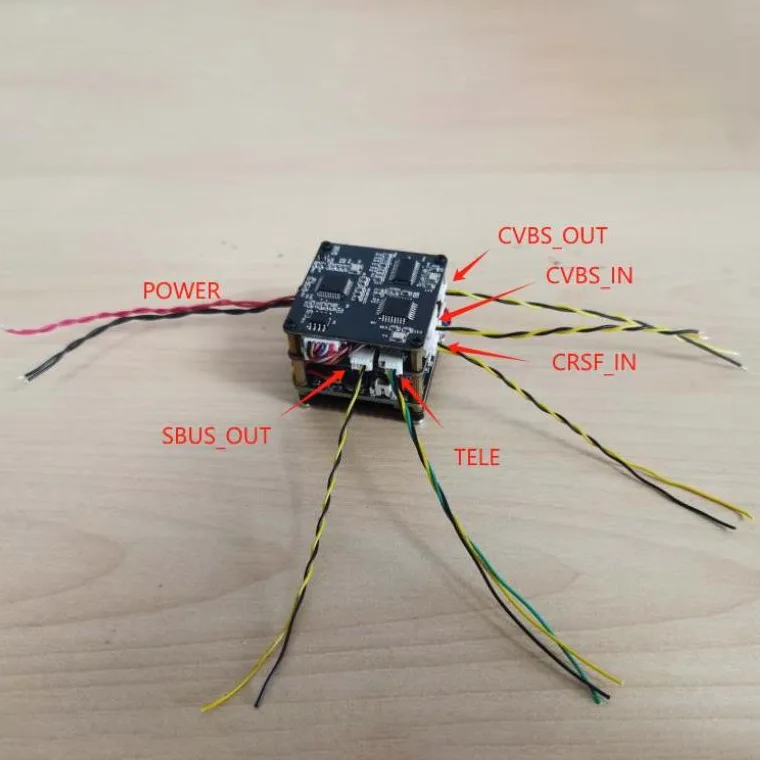

Shipment List
- (1) Tracker Module x 1
- (2) Power cable MX1.25(4p) x 1
- (3) CVBS signal cable MX1.25mm(3p) x 2
- (4) CRSF signal cable SH1.0MM(4p) x 1
- (5) SBUS signal cable SH1.0MM(4p) x 1
- (6) Tele signal cable SH1.0MM(4p) x 1
This module is designed for professional drone applications, providing a reliable solution for precise target tracking and strong anti-interference capabilities, suitable for various challenging environments.
Additional information
| Category | Drone Module |
|---|
