D900 drone, high-precision RTK positioning, 5KG payload, 4G dual link and laser obstacle avoidance
D900 drone, high-precision RTK positioning, 5KG payload, 4G dual link and laser obstacle avoidance
The D900 is a multifunctional logistics drone designed to usher in a new era of logistics. Equipped with advanced features, it enhances performance and adaptability in various logistics scenarios.
The D900 is a multifunctional logistics drone designed to usher in a new era of logistics. Equipped with advanced features, it enhances performance and adaptability in various logistics scenarios.
Description
1. Product Overview
The D900 is a multifunctional logistics drone designed to usher in a new era of logistics. Equipped with advanced features, it enhances performance and adaptability in various logistics scenarios.
2. Product Features
- High-Precision RTK: Equipped with high-precision RTK to achieve centimeter-level positioning.
- Maximum Load Capacity of 5KG: The D900 can carry up to 5KG, enabling it to deliver heavier items in a single trip.
- 8KM Distribution Range: The distribution radius of the D900 can reach up to 8KM, covering most urban areas and outdoor scenes.
- Support for Multi-User Viewing: The D900 supports multi-user remote point-to-point control.
- 4G Dual Links: The D900 has stable, reliable, and low-latency 4G dual links.
- Laser Obstacle Avoidance: Equipped with laser obstacle avoidance modules in the front and at the bottom, ensuring effective avoidance of obstacles even in low light or reflective conditions.
- Aerial Lighting: Two high-brightness searchlights at the bottom allow for easy operation in low-light environments.
- High-Volume Loudspeaker: Built-in high-volume loudspeaker with automatic noise reduction, clear and full sound, up to 120 decibels, and a shouting distance of nearly 100 meters.

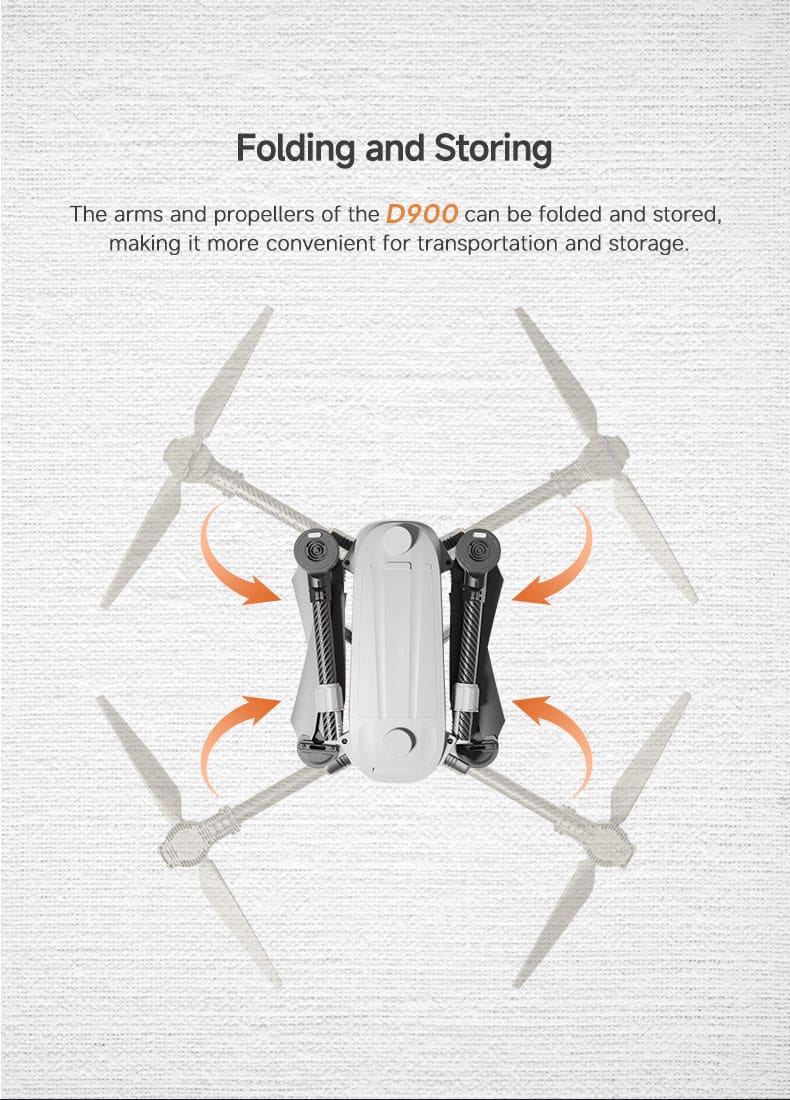

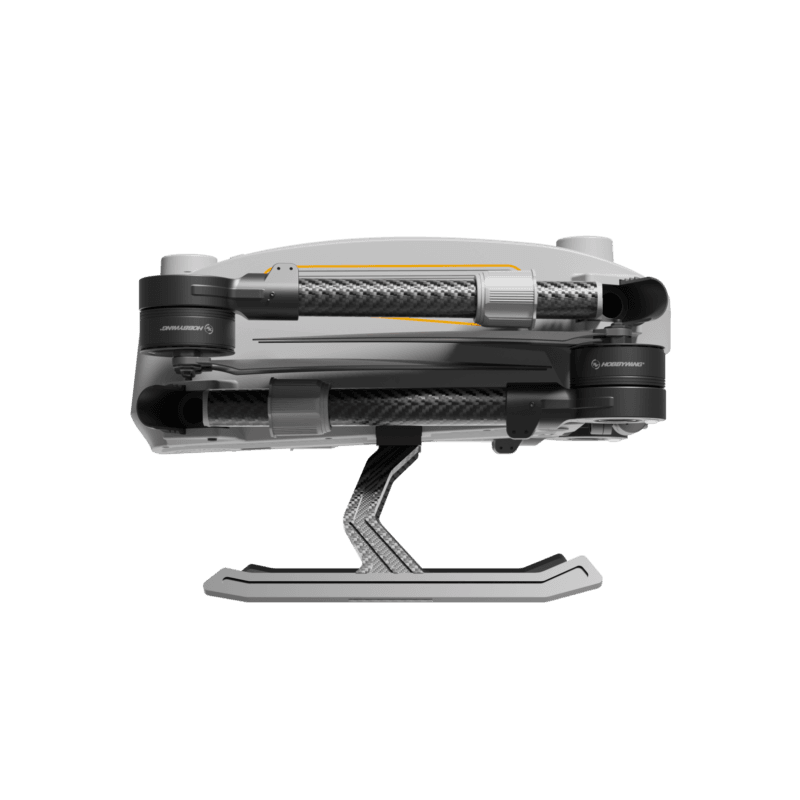

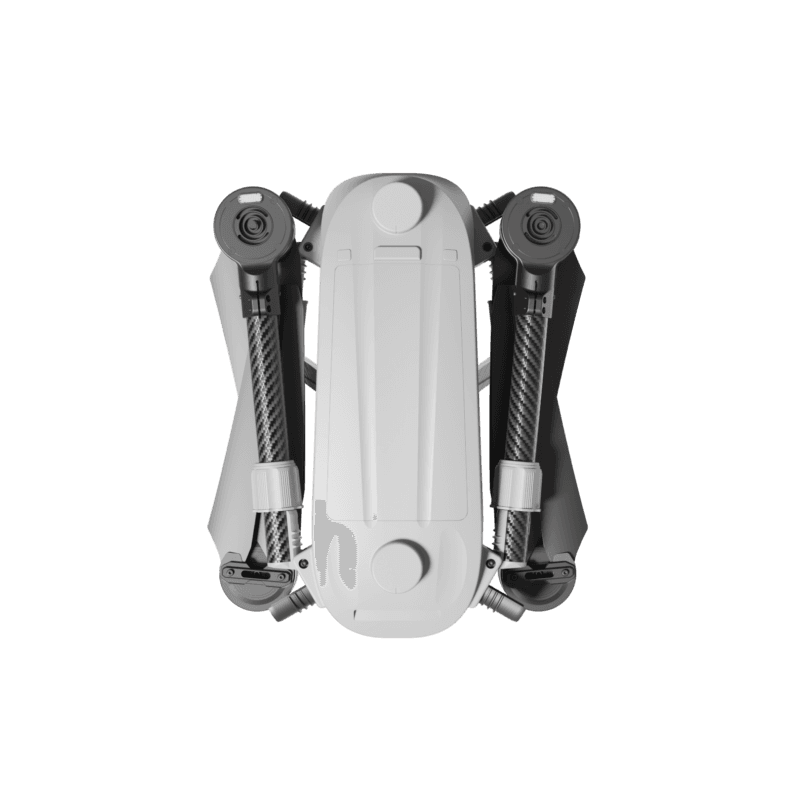

- Folding and Storing: The arms and propellers can be folded and stored, making transportation and storage more convenient.

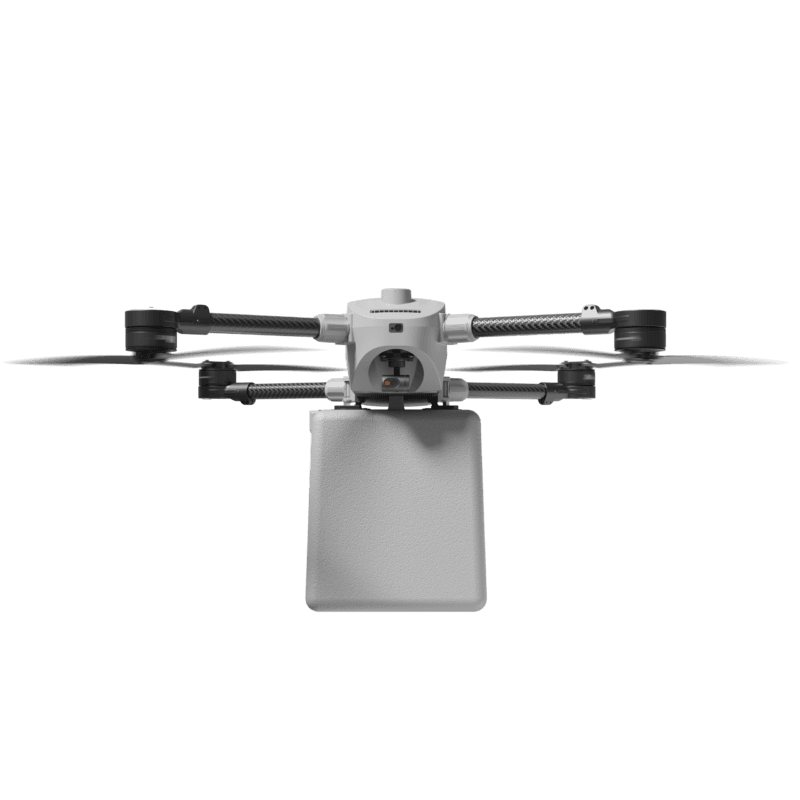

- Replaceable Logistics Boxes: The D900 can detach its landing gear, change its form, and replace the corresponding logistics boxes, making it flexible and adaptable to various application scenarios.
3. Detailed Technical Parameters
Parameter | D900 |
---|---|
Weight (without battery) | 4.82kg |
Dimensions (LxWxH) | 73.5cm x 69cm x 28cm |
Folded Dimensions (LxWxH) | 36cm x 41.5cm x 28cm |
Propeller model | 2270 |
Diagonal wheelbase | 92cm |
Input voltage | 12S (50.4V) |
Battery capacity | 22000mAh |
Battery weight | 3.66kg |
Maximum take-off weight | 13kg |
Maximum load capacity | 5kg |
Endurance mileage (no load) | 30KM |
Endurance mileage (full load) | 15KM |
Maximum ascent speed | 3m/s |
Maximum descent speed | 1.5m/s |
Maximum horizontal flight speed | 12m/s |
Endurance (no load) | About 60min |
Endurance (full load with 5KG) | About 30min |
Working environment temperature | 0-45℃ |
Working frequency | 2.4G/4G |
Radio frequency power | max 24dBm |
Hovering accuracy | Autonomous: 2.0m CEP, DGNSS: 0.5m CEP, RTK: 2cm+1ppm |
4. Application Scenarios
- Low-Altitude Distribution Services: Ideal for short-distance, small-batch, high-frequency, and emergency services within the same city.
- Logistics Terminal Business: Combines software and hardware to meet the logistics terminal business needs of both B2B and B2C sectors.
Additional information
Performance parameters | D900 |
---|
