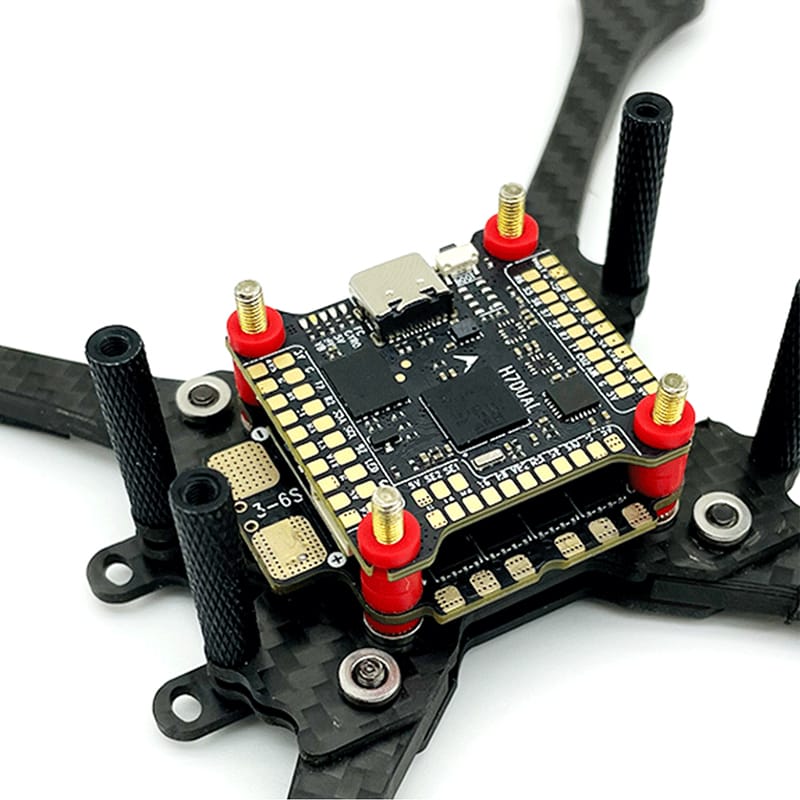

D-H760 Stack H7DUAL FC AM32 60A ESC 30X30mm for Racing Drone

SKU:D-H760

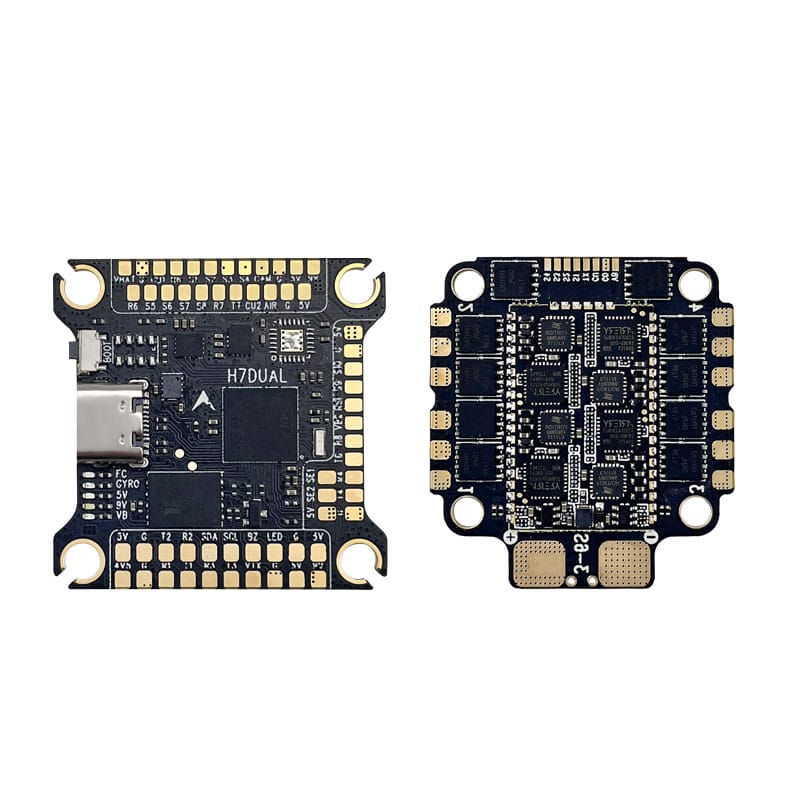

This product includes the H7DUAL flight controller and 3060 V1 ESC. The flight controller is equipped with STM32H743VIH6 processor, supports BMI270 X2 or MPU6000 gyro, with SPL06-001 barometer and 128MB black box storage, supports 3-6S Li-polymer battery power supply, 10-channel motor output and 2-channel servo output. ESC supports 60A continuous current and 70A peak current, compatible with 3-6S Li-polymer batteries, supports Dshot300/Dshot600/PWM/bi-directional Dshot signals, with ammeter function. , weight is 13.9g, mounting hole is M3 30.5mm x 30.5mm.

Share on:

D-H760Stack H7DUAL FC AM32 60A ESC 30X30mm for Racing Drone

D-H760Stack H7DUAL FC AM32 60A ESC 30X30mm for Racing Drone

D-H760Stack H7DUAL FC AM32 60A ESC 30X30mm for Racing Drone

D-H760Stack H7DUAL FC AM32 60A ESC 30X30mm for Racing Drone

D-H760Stack H7DUAL FC AM32 60A ESC 30X30mm for Racing Drone

H760 AM32 60A Stack Device Specifications

H7DUAL FC
CpuSTM32H743VIH6
GyroscopeBMI270 X2/MPU6000
BarometerSPL06-001
Black Box Storage128MB
Power Supply3-6S Lipo
Motor Output10ch
UART8ch
Servo Output2ch
FirmwareRCH7DUAL
BEC Output5V/2.5A, 9V/3A
Dimensions37mm x 37mm
Weight8.8g
Mounting Hole30.5mm x 30.5mm

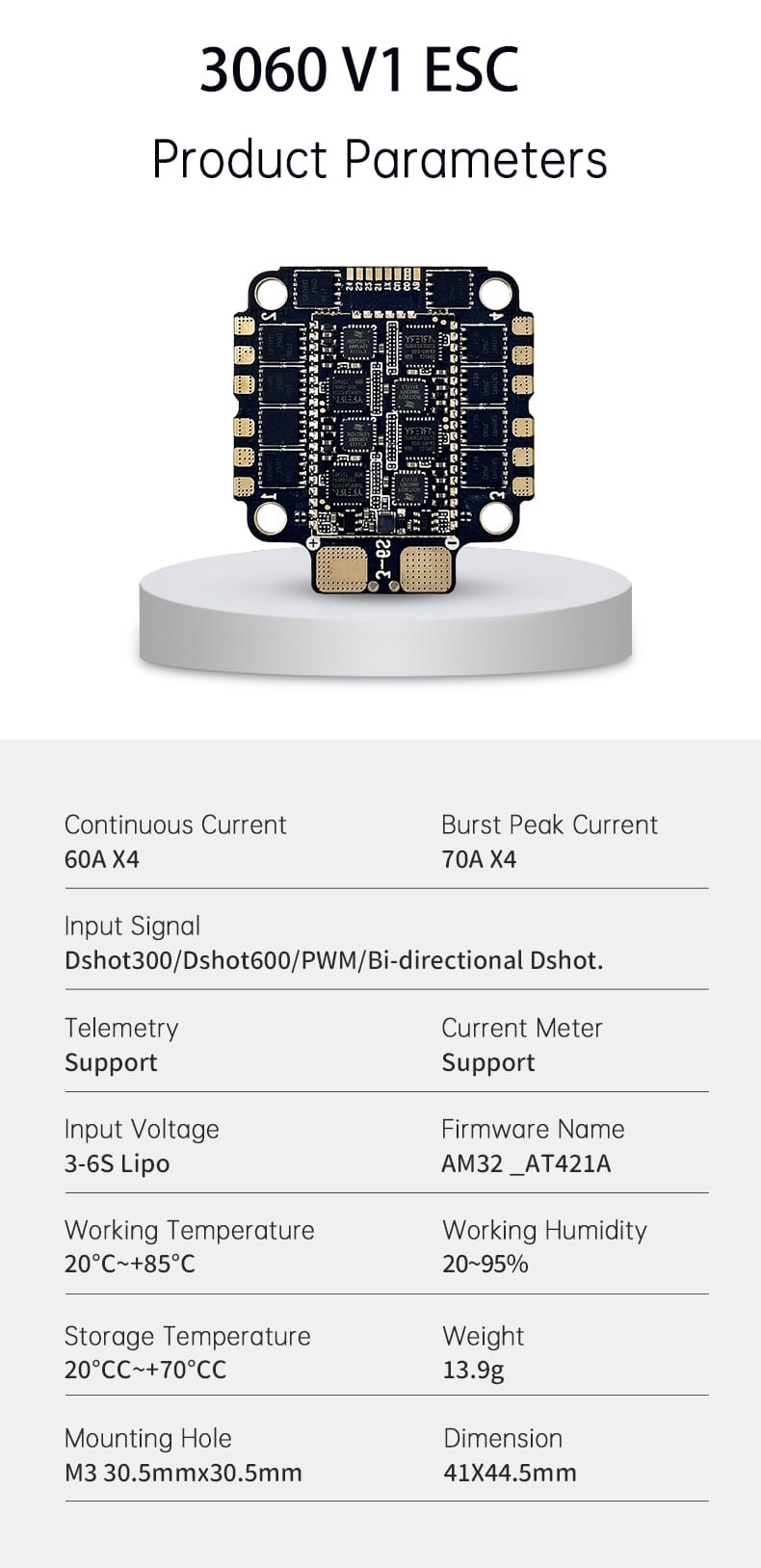

3060 V1 ESC
Continuous Current60A X4
Burst Peak Current70A X4
Input SignalDshot300/Dshot600/PWM/Bi-directional Dshot
TelemetryCurrent Meter
SupportSupport
Input Voltage3-6S Lipo
Firmware NameAM32_AT421A
Working Temperature20℃ ~ +85℃
Working Humidity20% ~ 95%
Storage Temperature20°CC ~ +70°CC
Weight13.9g

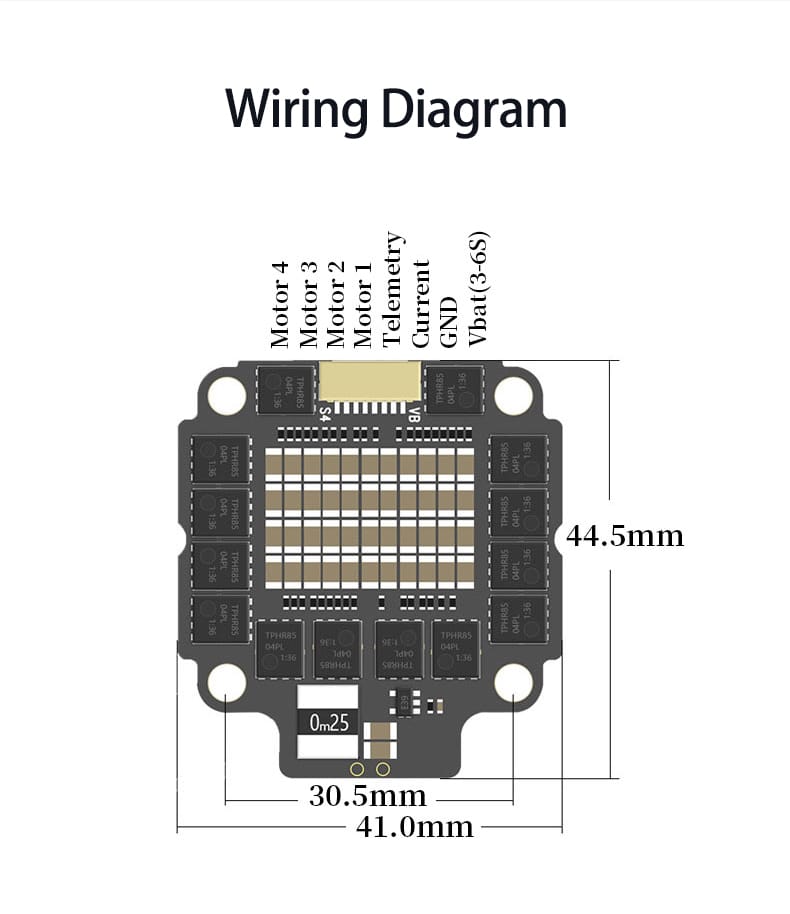

Mounting HoleM3 30.5mm x 30.5mm
Dimensions41mm x 44.5mm
