D-H743 flight controller MPU6000x1 BMI270x2 BMP280 BlackBox 128MB for Racing Drone
SKU:D-H743

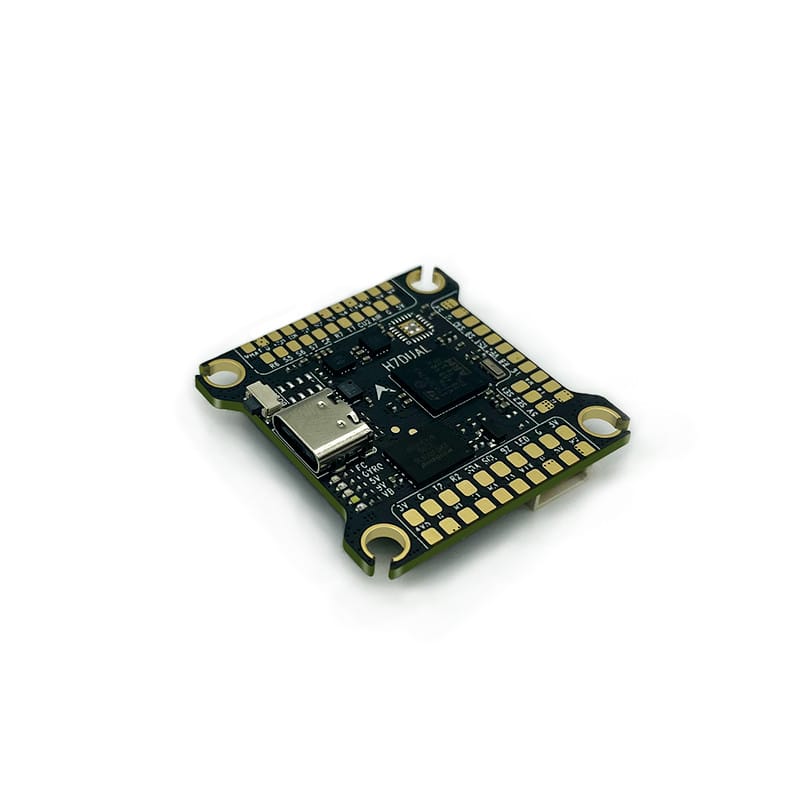

The D-RC H743 Flight Controller is a high-performance flight control system designed for racing drones. Equipped with an STM32H743VIH6 MCU, MPU6000x1 and optional BMI270x2 gyroscope, and 128MB BlackBox storage, this controller offers precision and stability for high-speed drone racing. It supports 8-channel motor output, multiple sensor integrations, and is designed with a compact form factor for easy installation.
Share on:

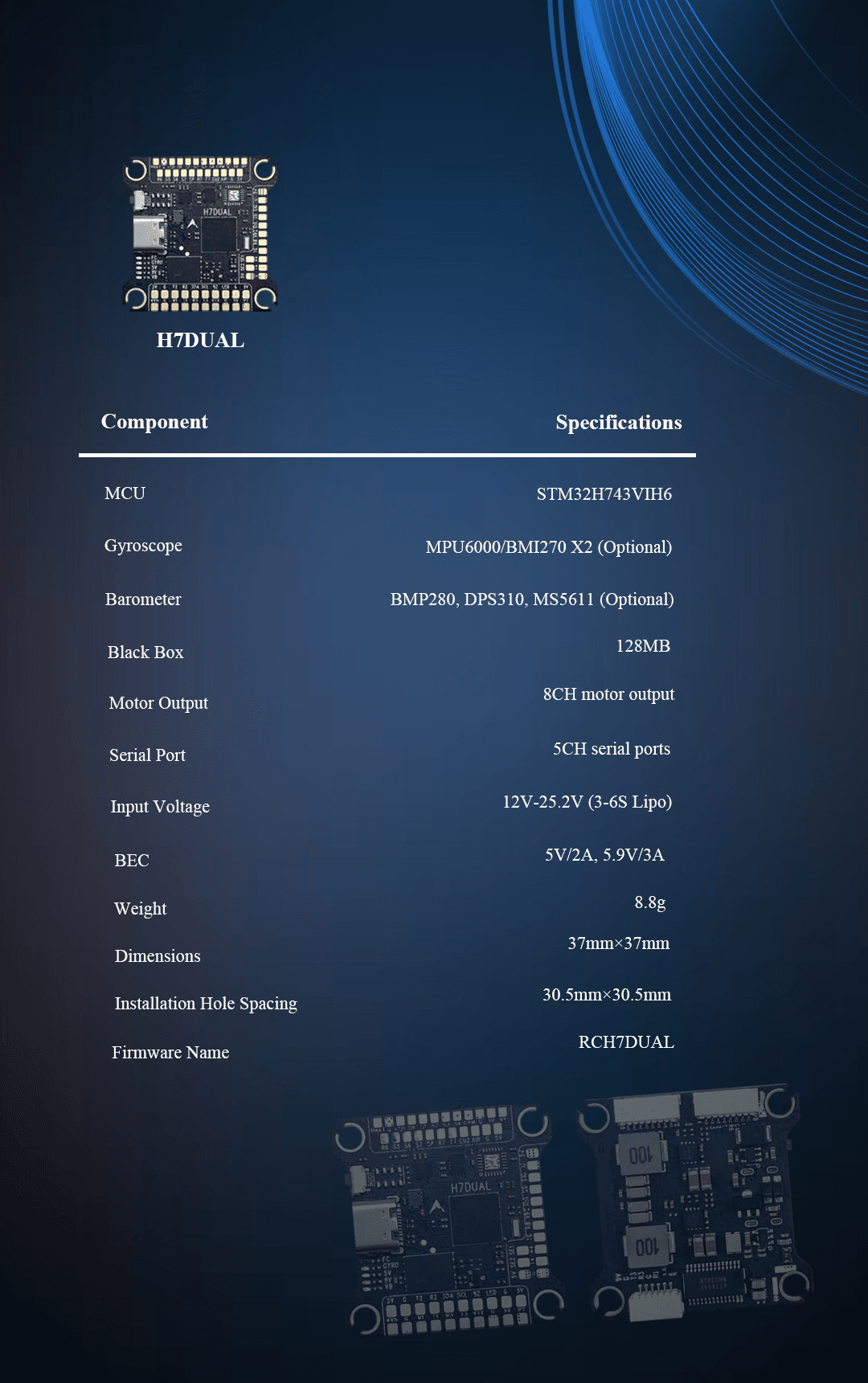

D-RC H743 flight controller MPU6000x1 BMI270x2 BMP280 BlackBox 128MB for Racing Drone Device Specifications
| Component | Specifications |
|---|---|
| MCU | STM32H743VIH6 |
| Gyroscope | MPU6000/BMI270 X2 (Optional) |
| Barometer | BMP280, DPS310, MS5611 (Optional) |
| Black Box | 128MB |
| Motor Output | 8CH motor output |
| Serial Port | 5CH serial ports |
| Input Voltage | 12V-25.2V (3-6S Lipo) |
| BEC | 5V/2A, 5.9V/3A |

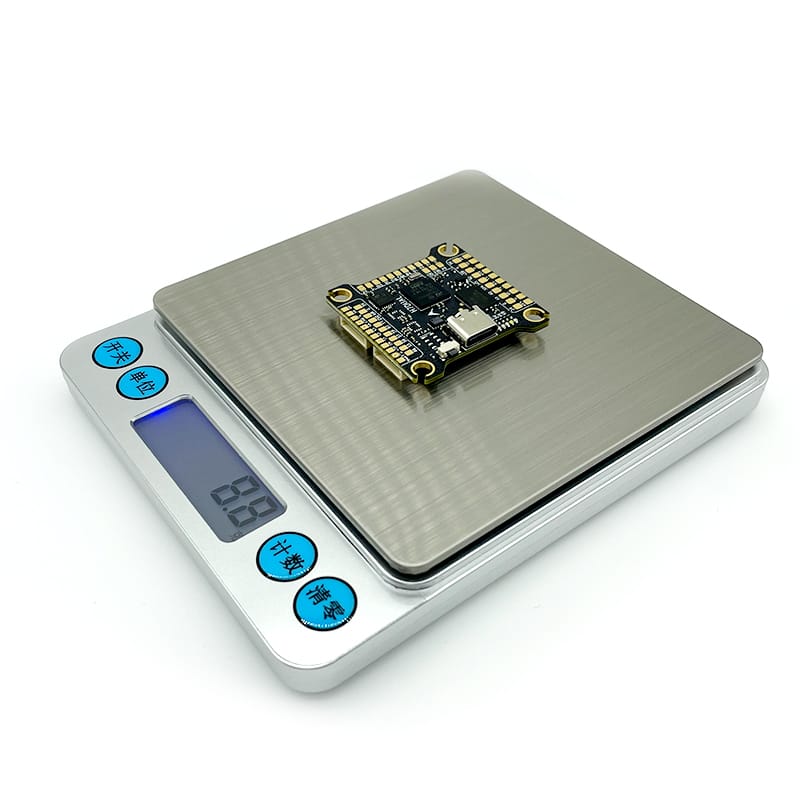

| Weight | 8.8g |
| Dimensions | 37mm×37mm |

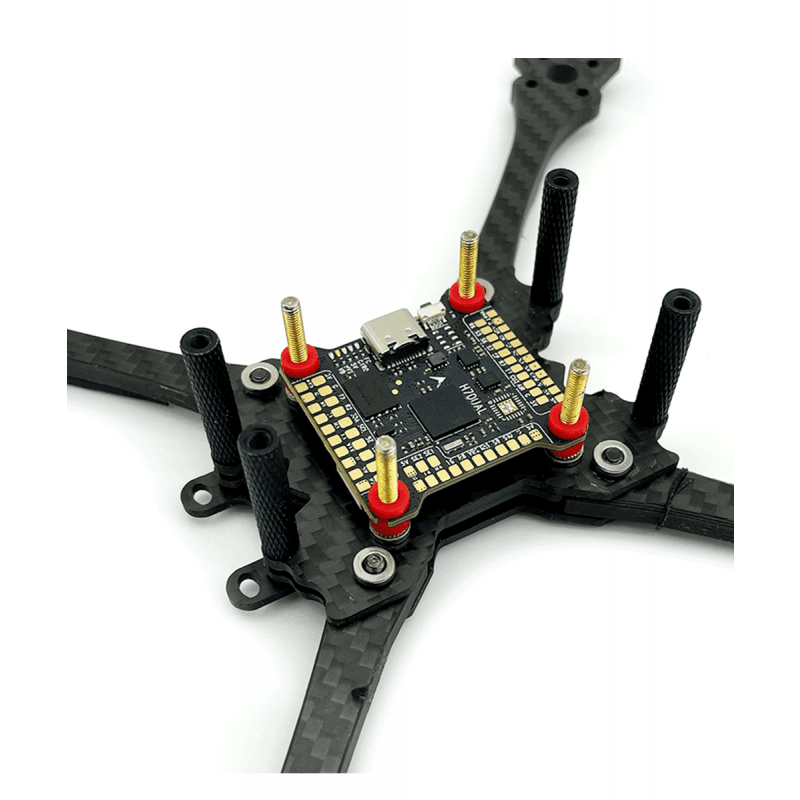

| Installation Hole Spacing | 30.5mm×30.5mm |
| Firmware Name | RCH7DUAL |
Accessory List
| Accessory | Quantity |
|---|---|
| D-RC BEETLE H7DUAL | X1 |
| 8PIN SH1.0 Signal Wires | X2 |
| M3*8 Shock Absorbing Ball | X4 |
