D-F722MINI V2 Flight Controller MPU6500/MPU6000 OSD Barometer 16M BlackBox for Racing Drone
SKU:D-F7MINIV2

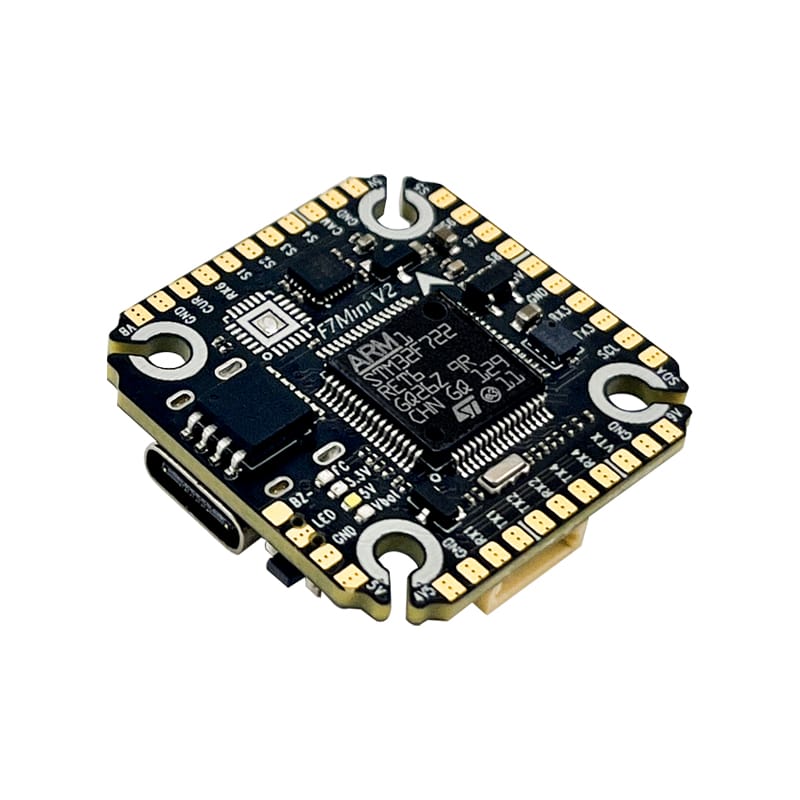

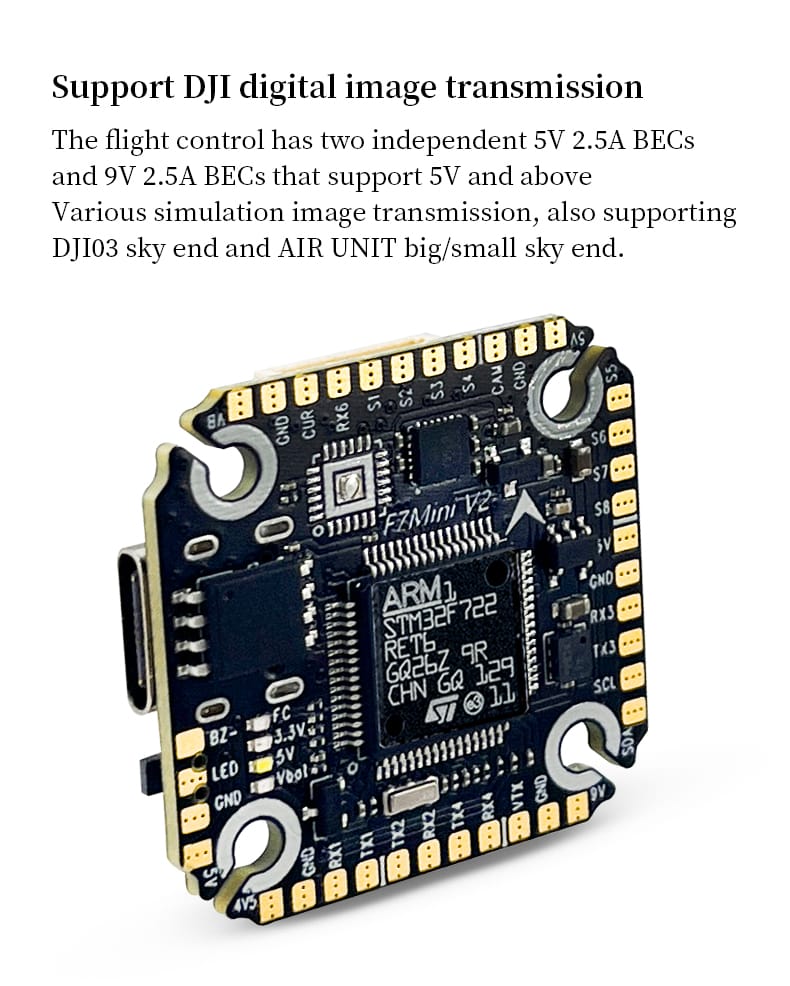

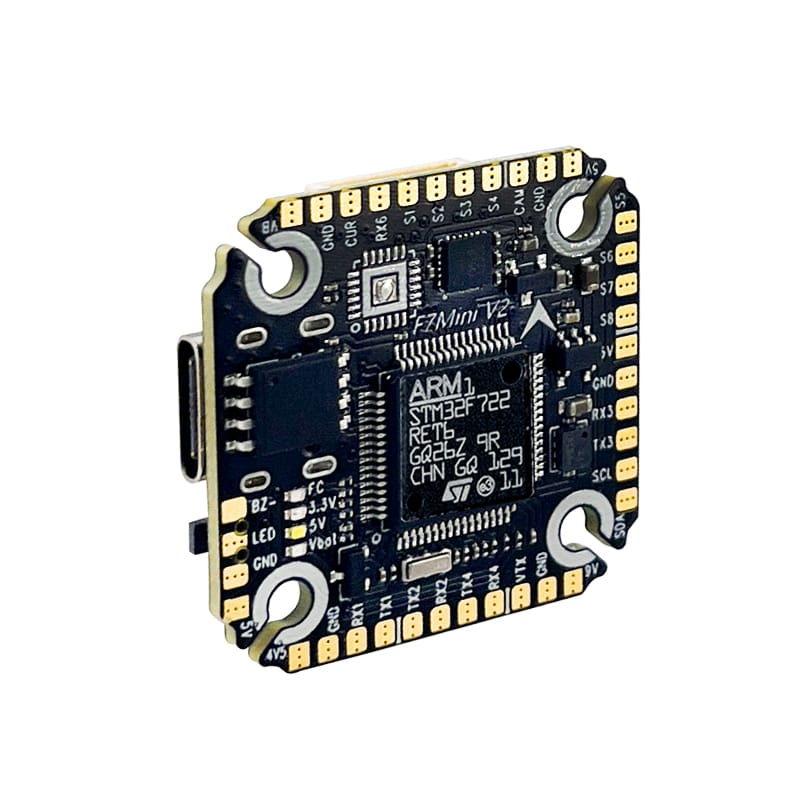

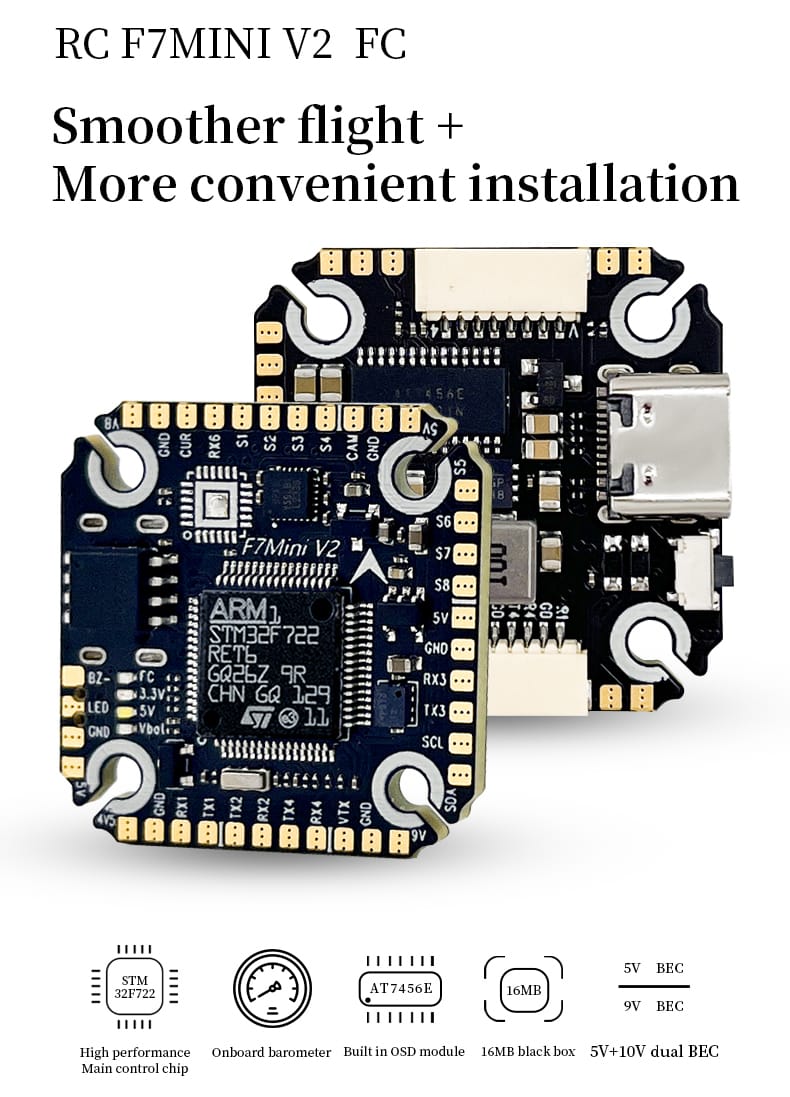

The RC F7MINI V2 Flight Controller is an advanced solution for drone racing and high-performance flights. Featuring an STM32F722 main control chip and a built-in MPU6500 gyroscope for stable flight control, it supports DJI digital image transmission, making it ideal for FPV setups. The controller includes a DPS310 barometer and a 16MB black box for comprehensive data logging.
Share on:
D-F722MINI V2 Flight Controller MPU6500/MPU6000 OSD Barometer 16M BlackBox for Racing Drone
D-RC F722MINI V2 Flight Controller MPU6500/MPU6000 OSD Barometer 16M BlackBox for Racing Drone

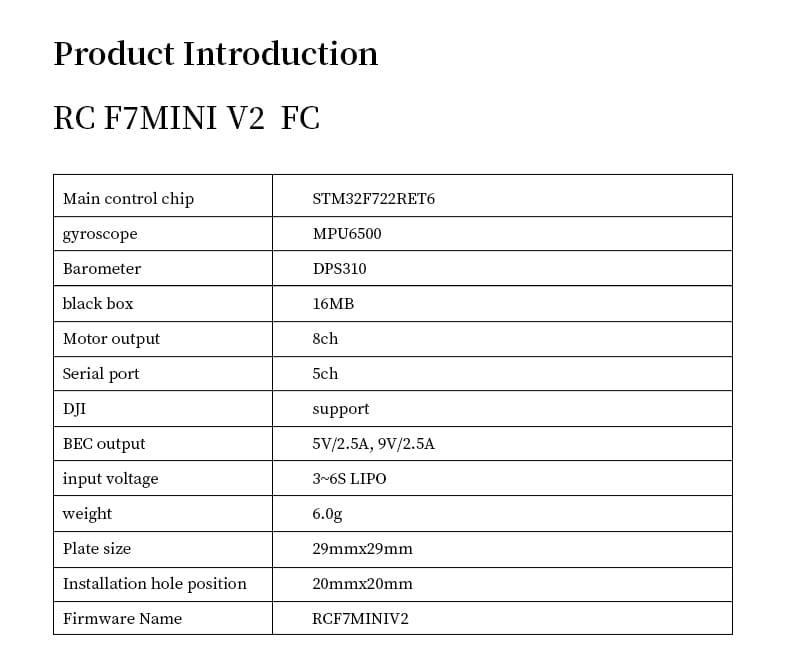

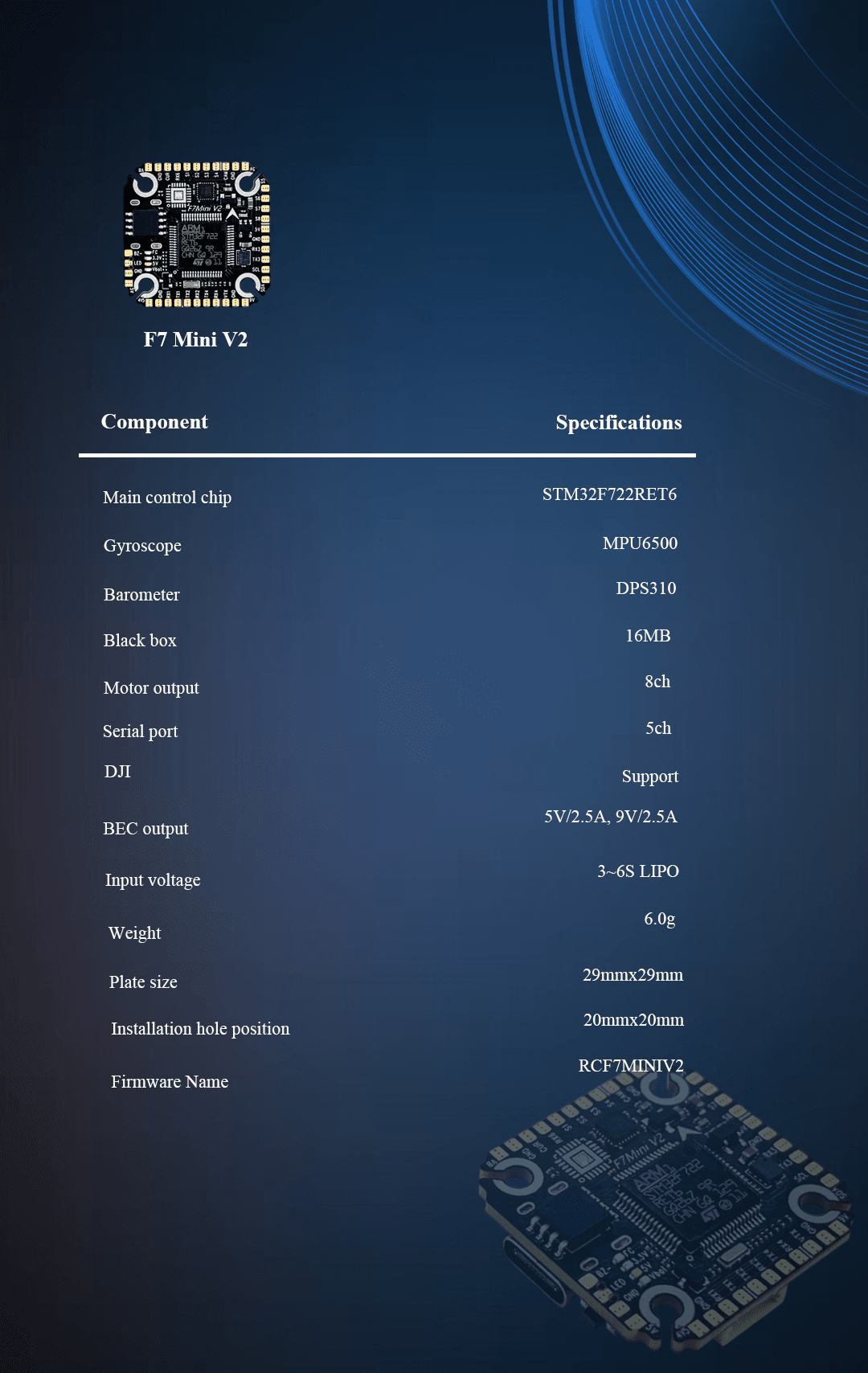

| Main control chip | STM32F722RET6 |
| Gyroscope | MPU6500 |
| Barometer | DPS310 |
| Black box | 16MB |

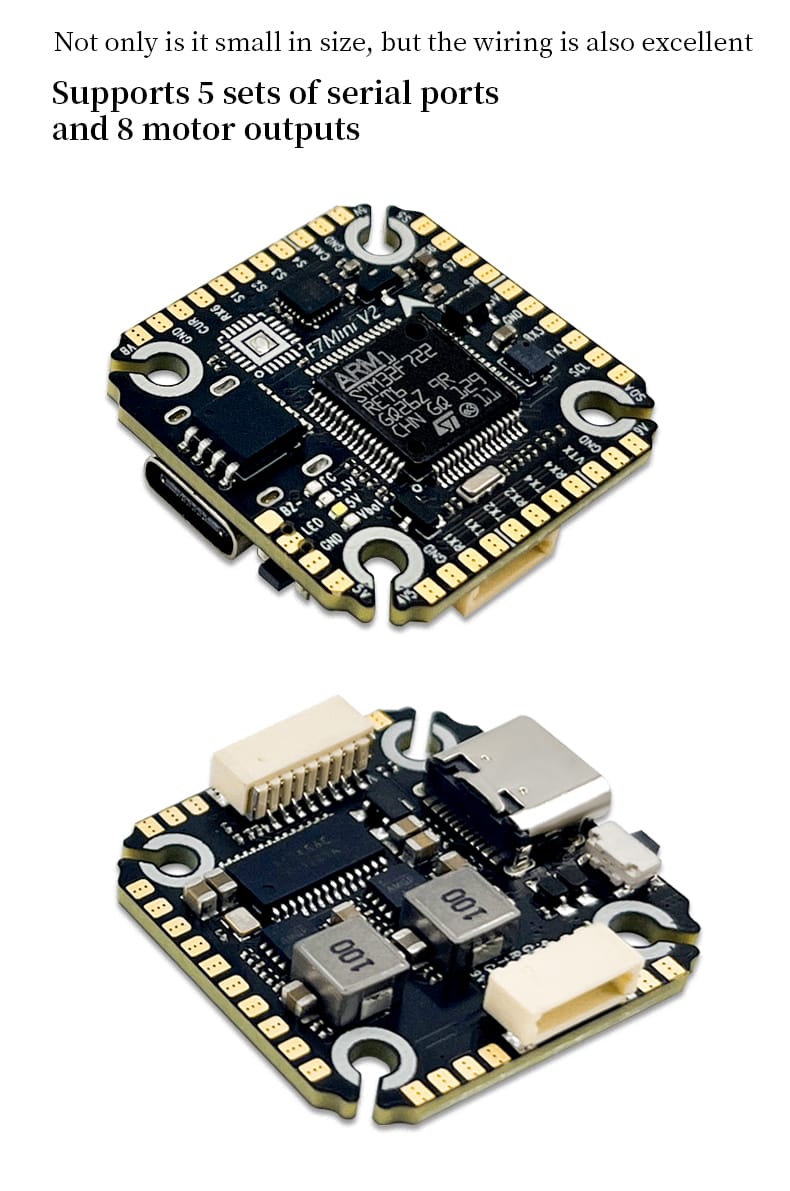

| Motor output | 8ch |
| Serial port | 5ch |
| DJI | Support |
| BEC output | 5V/2.5A, 9V/2.5A |
| Input voltage | 3~6S LIPO |
| Weight | 6.0g |
| Plate size | 29mmx29mm |
| Installation hole position | 20mmx20mm |
| Firmware name | RCF7MINIV2 |
