D-F405 V3 Flight Control

SKU:D-F405 V3
The D-Rc F405 V3 flight controller delivers high performance and seamless control for racing drones. Featuring the STM32F405RGT6 main controller, ICM42688P gyroscope and SPL06 barometer, supporting 8 motor outputs and including an on-board OSD, the flight controller offers advanced features that support DJI Vista digital skycam, camera switching, Bluetooth tuning and wireless firmware refresh, all at a much faster speed. It weighs just 9.6 grams and measures only 36 mm x 36 mm, making it ideal for lightweight drones.

Quantity:

Share on:

D-Rc F405 V3 Flight Control D-Rc F405 V3 Flight Control D-Rc F405 V3 Flight Control D-Rc F405 V3 Flight Control [caption id="attachment_3931" align="alignnone" width="167"]D-F405 V3 Flight Control D-F405 V3 Flight Control[/caption] D-Rc F405 V3 Flight Control D-Rc F405 V3 Flight Control

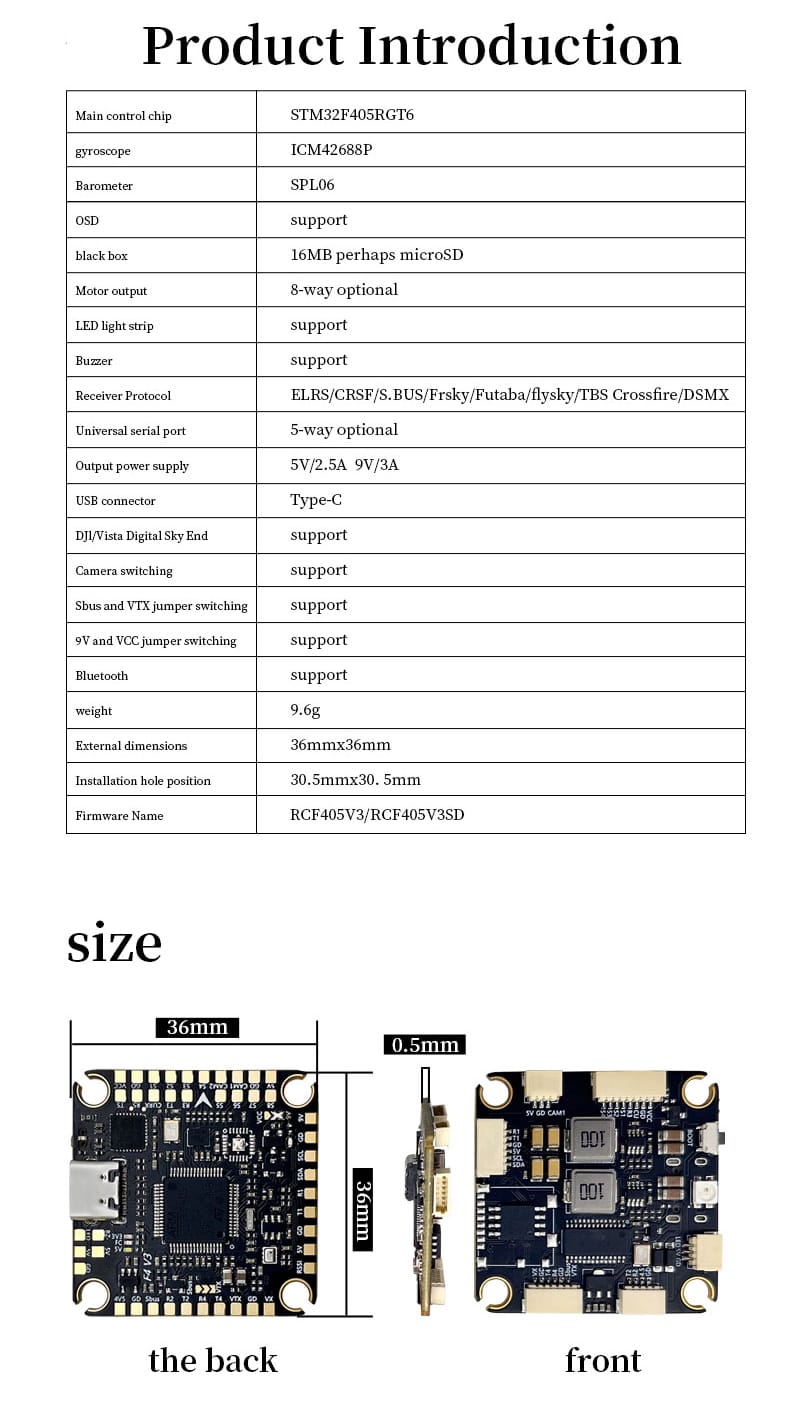

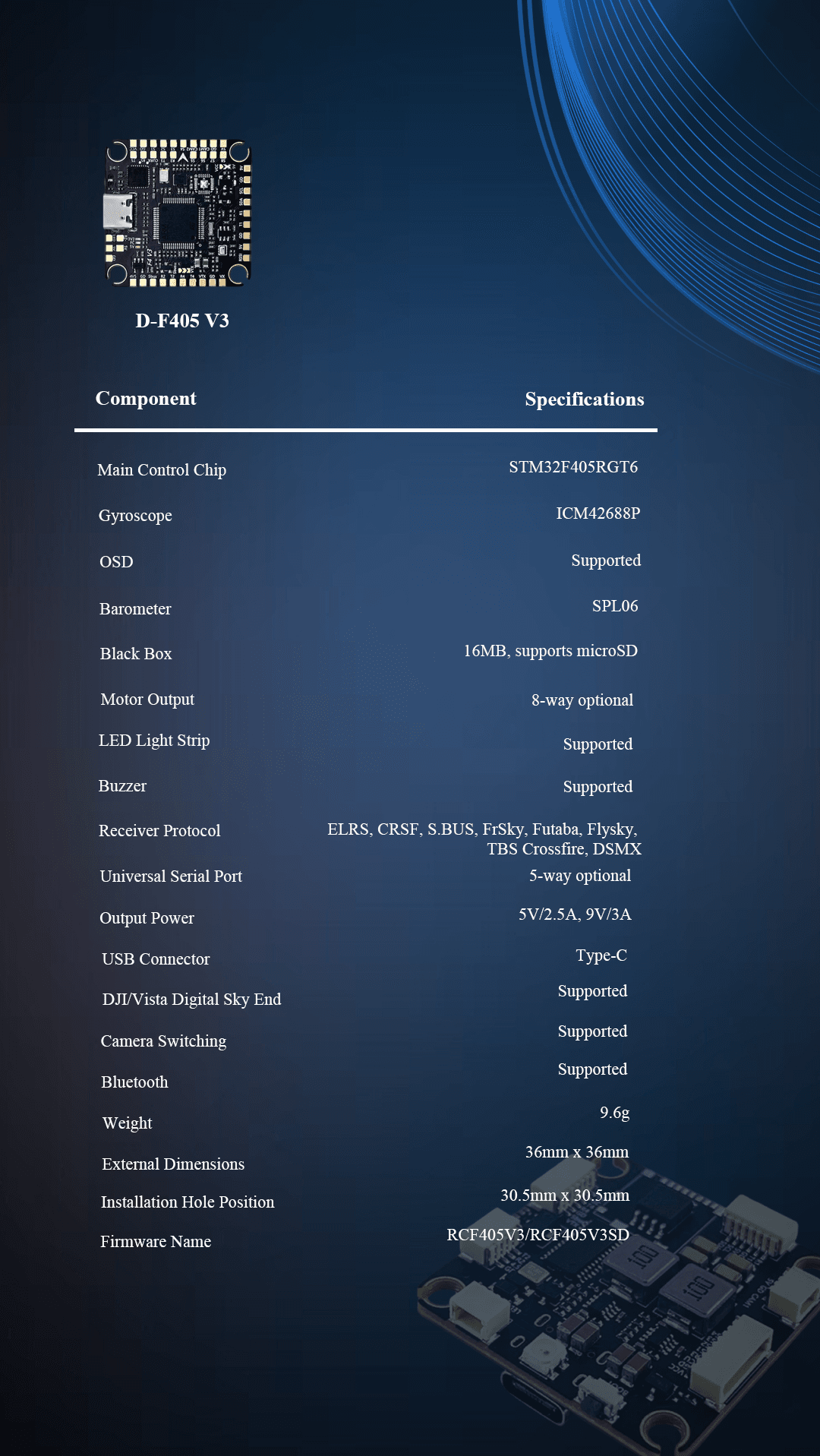

D-Rc F405 V3 Flight Control

Main Control Chip STM32F405RGT6

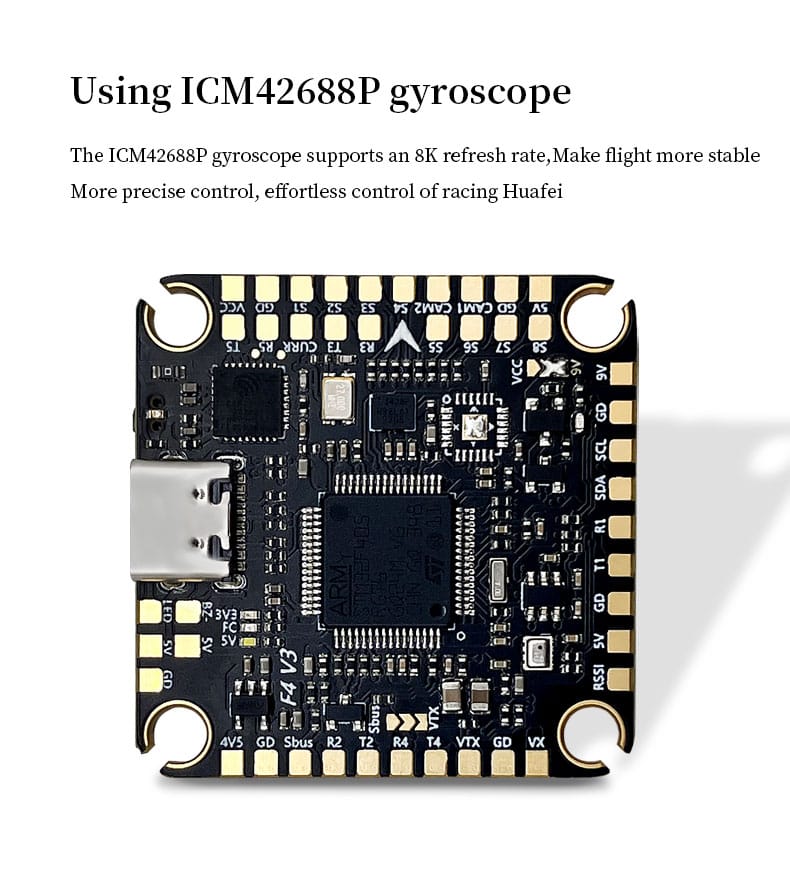

Gyroscope ICM42688P
OSD Supported
Barometer SPL06
Black Box 16MB, supports microSD
Motor Output 8-way optional
LED Light Strip Supported
Buzzer Supported
Receiver Protocol ELRS, CRSF, S.BUS, FrSky, Futaba, Flysky, TBS Crossfire, DSMX
Universal Serial Port 5-way optional
Output Power 5V/2.5A, 9V/3A
USB Connector Type-C
DJI/Vista Digital Sky End Supported
Camera Switching Supported

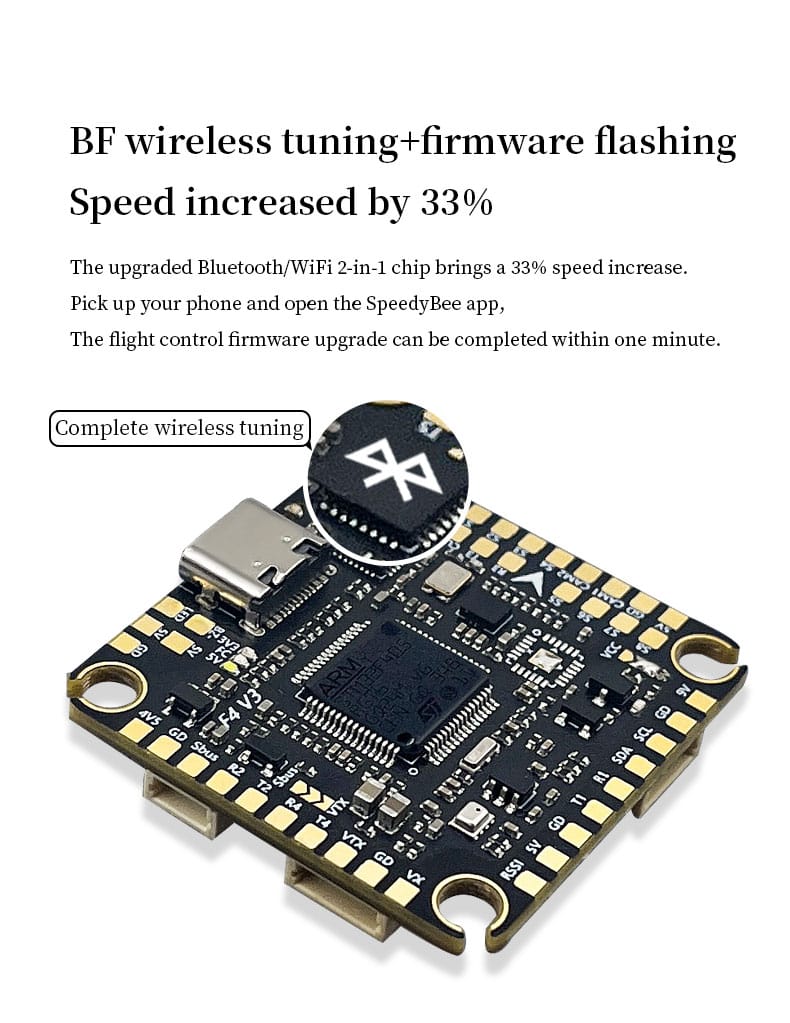

Bluetooth Supported
Weight 9.6g
External Dimensions 36mm x 36mm
Installation Hole Position 30.5mm x 30.5mm
Firmware Name RCF405V3/RCF405V3SD
