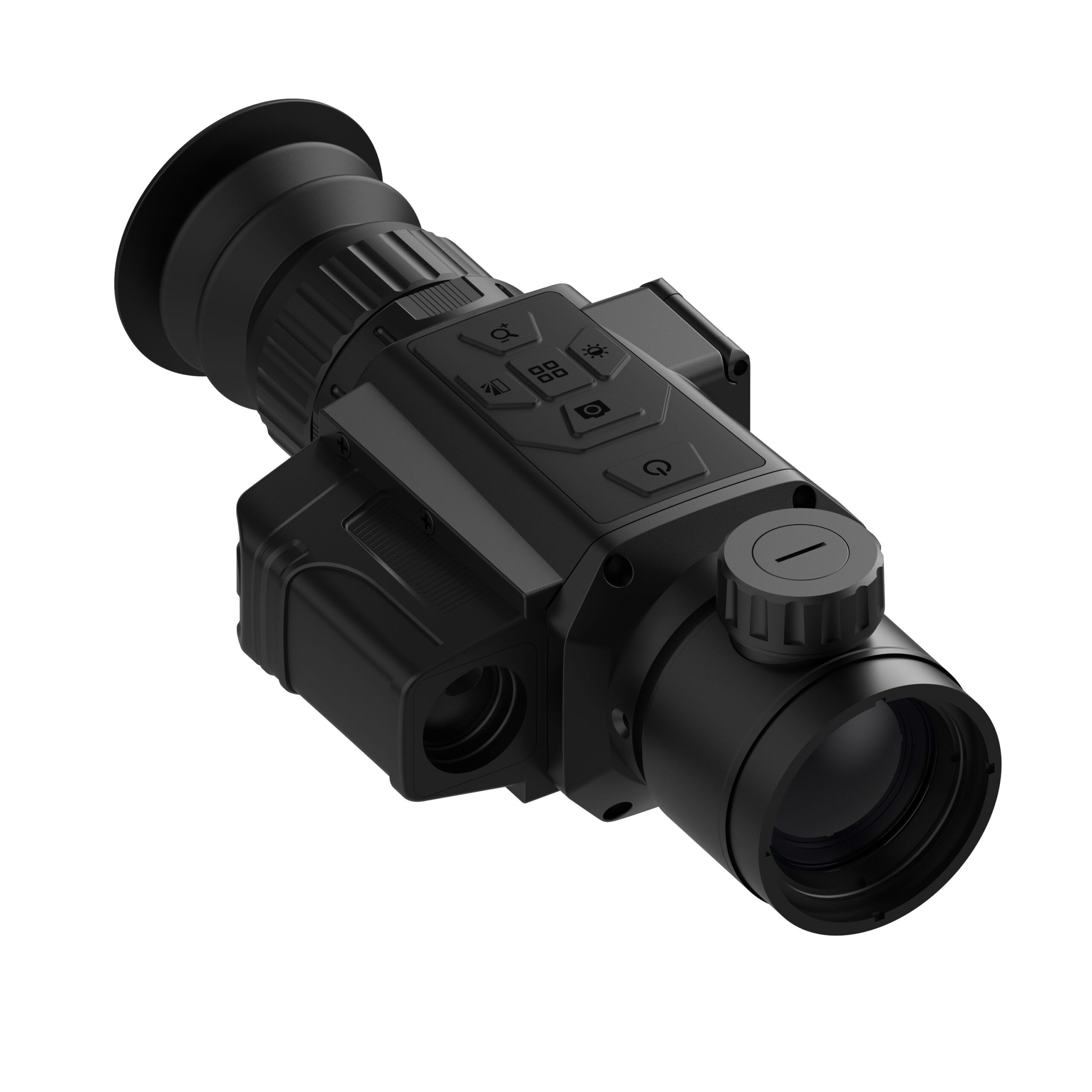

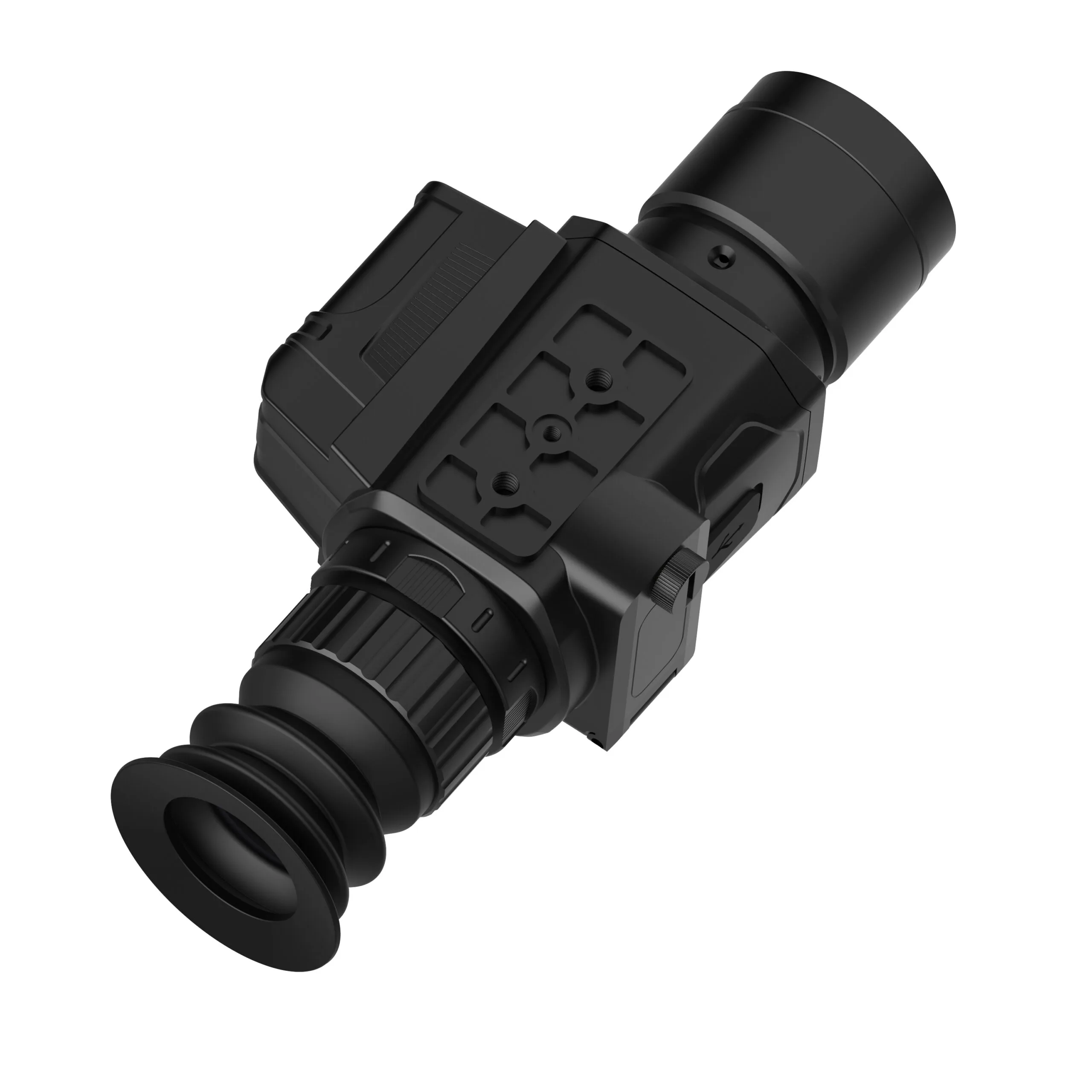

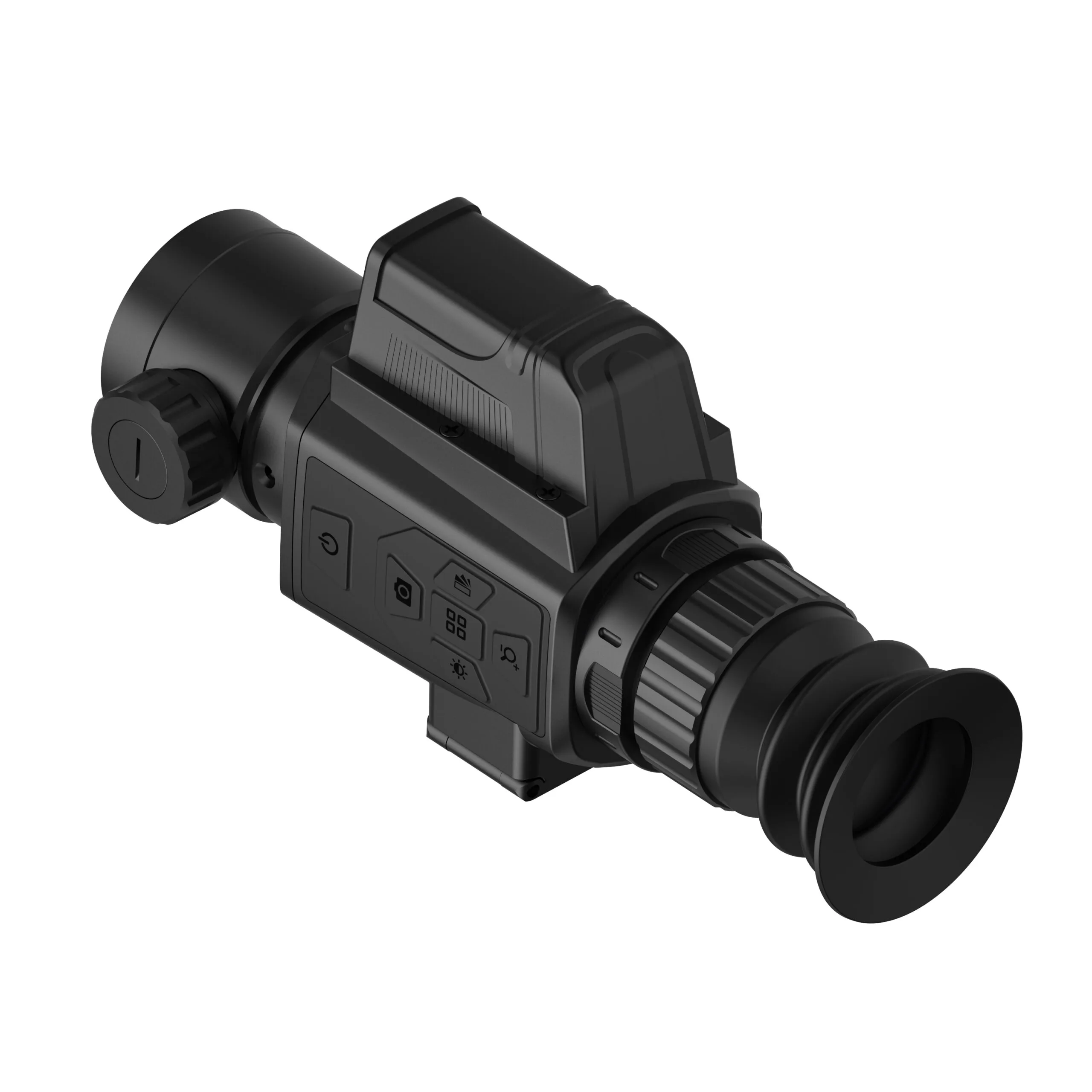

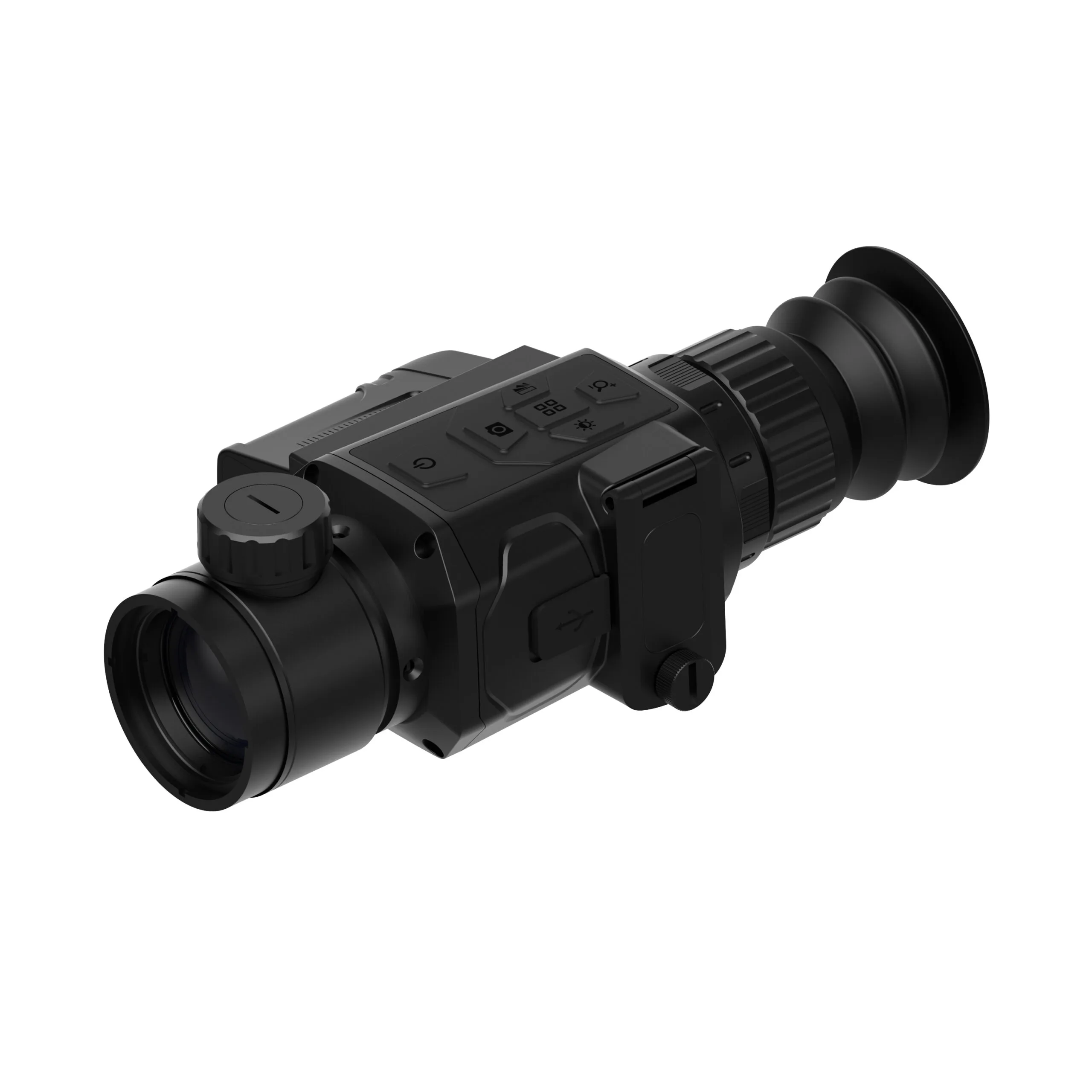

D-C18L/D-C19L Outdoor Thermographic Telescope

D-C18L/D-C19L Outdoor Thermographic Telescope

The D-C18L/DC19L Outdoor Thermal Imaging Telescope is a high-precision thermal imaging device designed for outdoor applications. It uses an advanced VOx detector to provide 384 x 288 and 640 x 512 IR resolution with multiple lens options to efficiently detect and identify human and vehicle targets at different distances. The device supports multiple color modes, manual focus, hotspot tracking functions, and is equipped with a high-resolution OLED display and rechargeable lithium battery, making it suitable for security, search and rescue, and outdoor observation scenarios.

The D-C18L/DC19L Outdoor Thermal Imaging Telescope is a high-precision thermal imaging device designed for outdoor applications. It uses an advanced VOx detector to provide 384 x 288 and 640 x 512 IR resolution with multiple lens options to efficiently detect and identify human and vehicle targets at different distances. The device supports multiple color modes, manual focus, hotspot tracking functions, and is equipped with a high-resolution OLED display and rechargeable lithium battery, making it suitable for security, search and rescue, and outdoor observation scenarios.

SKU: D-C18L/D-C19L

Description





D-C18L/D-C19L Outdoor Thermographic Telescope

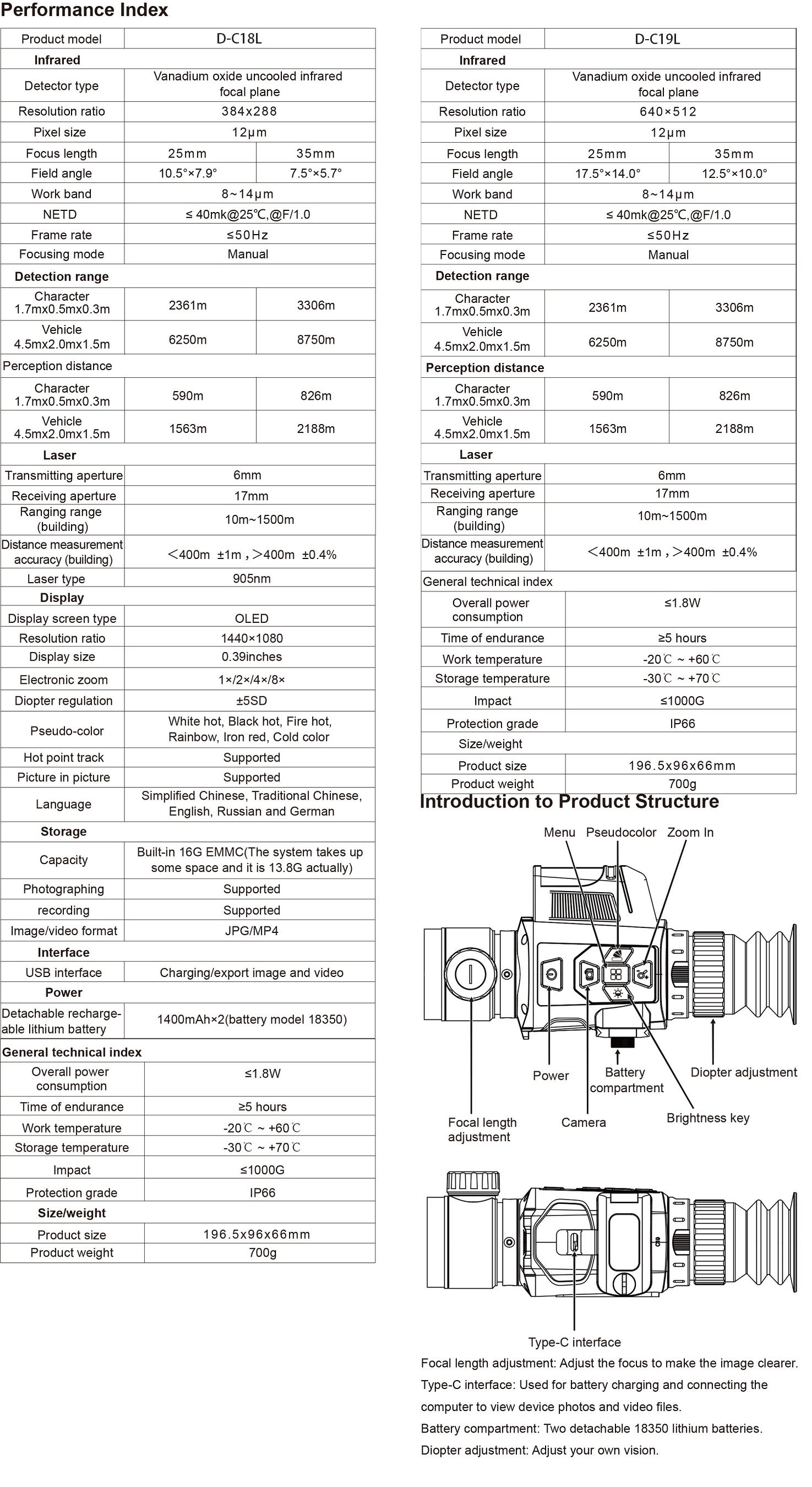

ModelDC18LDC19L
Detector typeVOxVOx
Infrared image resolution384×288640×512
Pixel spacing12μm12μm
Infrared focal length25mm; 35mm
Wavelength coverage8μm ~ 14μm
NETD≤ 40mK@25°C, F/1.0
Frame rate≤ 50Hz
Ranging range10m~1200m
Ranging accuracy<400m ±1m , >400m ±0.4%
Focusing modeManual
Display screen type0.39 inch OLED
Visible image resolution1440 × 1080
Magnification1× / 2× / 4× / 8×
Diopter adjustment±5D
Hot point trackSupport
Picture in pictureSupport
Color paletteWhite hot, Black hot, Fire hot, Rainbow, Iron red, Cold color
LanguageSimplified Chinese, Traditional Chinese, English, Russian, German
Image/Video formatJPG/MP4
USB interfaceType-C, Charging/export image and video

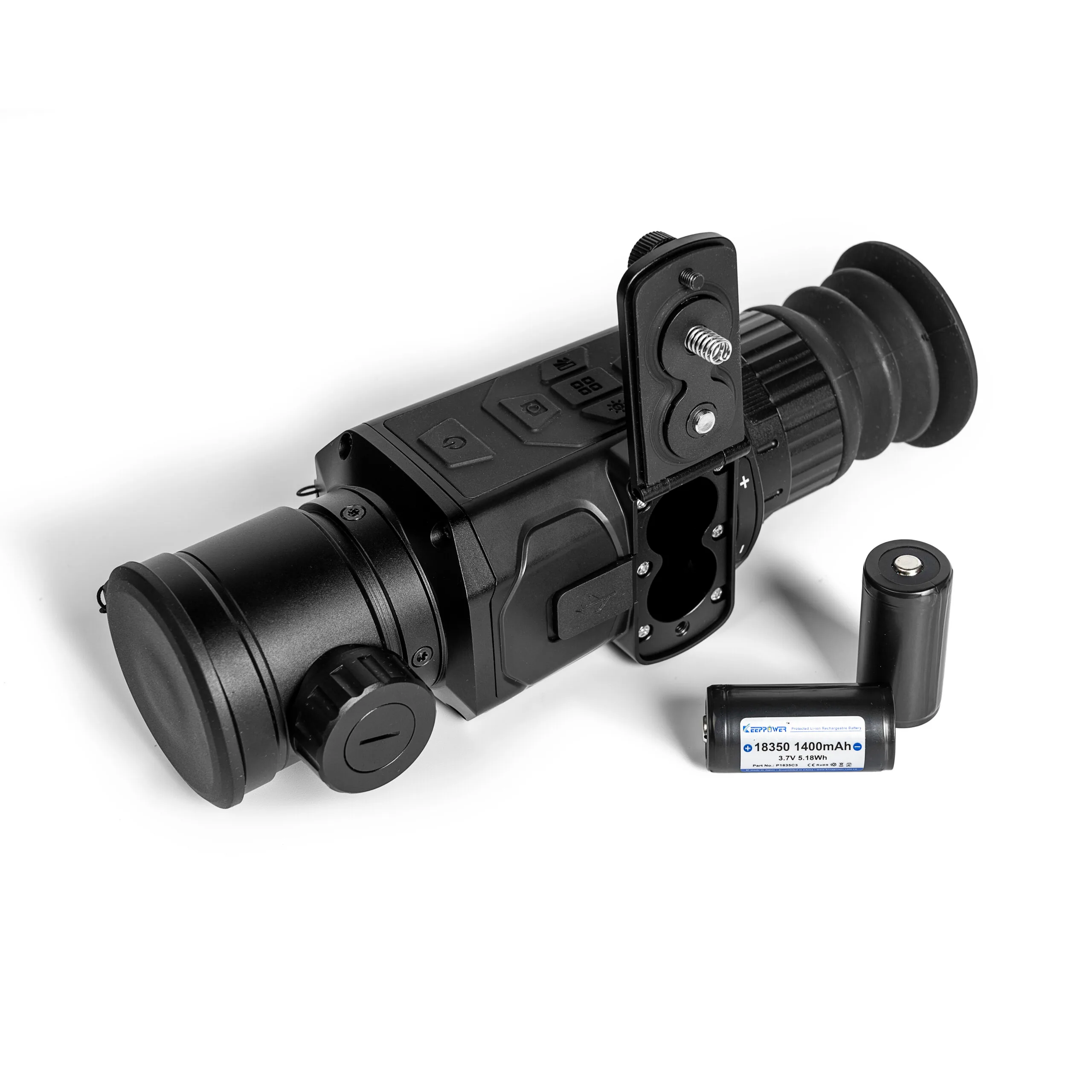

Battery type18350 Detachable rechargeable lithium battery (1400mAh×2)
Impact≤1000G
Product size196.5×96×66mm
Product weight700g
Specification
Lens25mm35mm
Detection distanceHuman (1.7mx0.5mx0.3m)1181m1653m
Cars (4.5mx2.0mx1.5m)3125m4375m
Identification distanceHuman (1.7mx0.5mx0.3m)295m413m
Cars (4.5mx2.0mx1.5m)781m1094m
