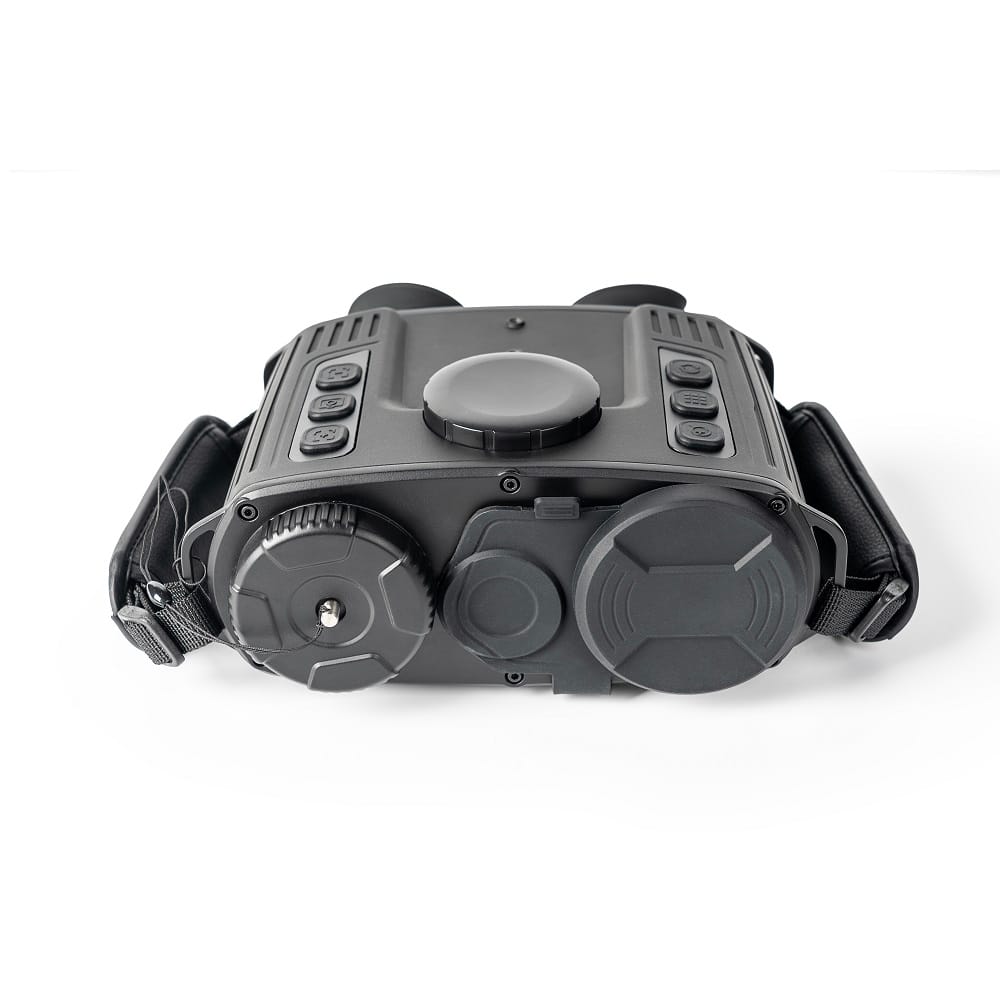

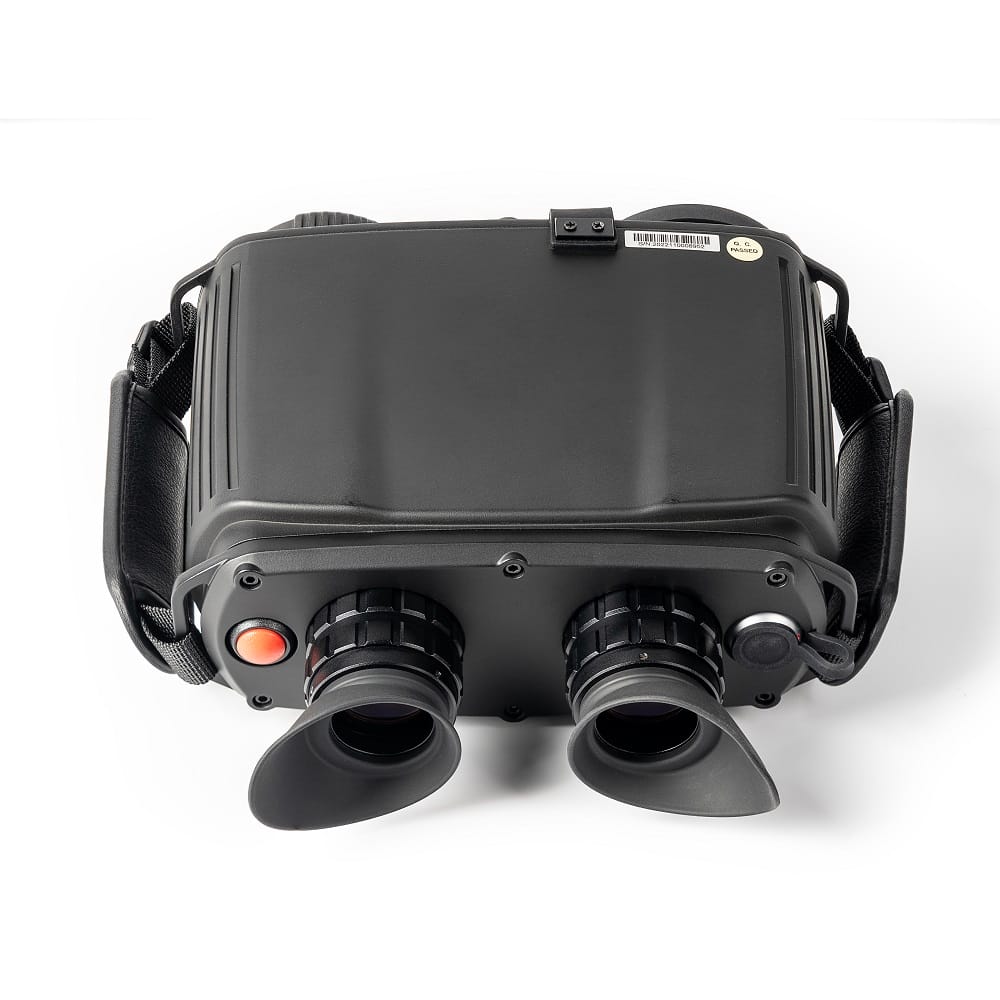

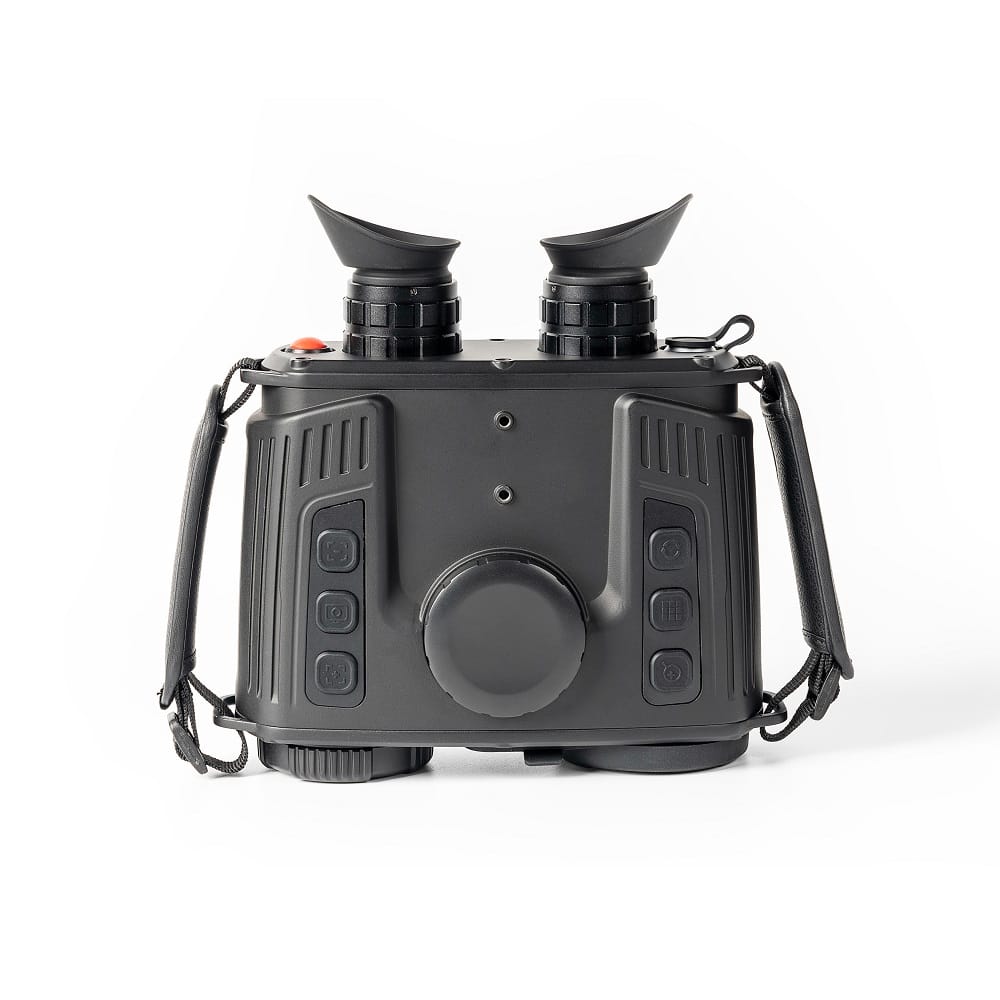

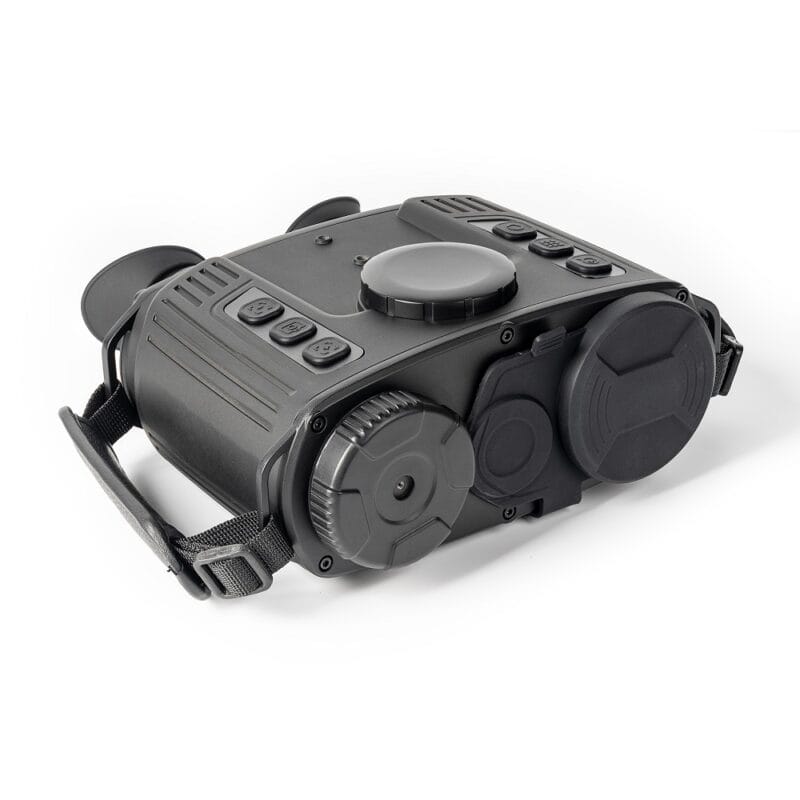

D-C600/D-C640 Binocular Thermal Imaging Telescope

SKU:D-C600/D-C640
The D-C600/D-C640 Binocular Thermal Imaging Telescope is a high-performance thermal imaging device designed for long-range detection and identification. Equipped with a VOx detector and a 50mm lens, it provides clear thermal images with a resolution of either 384×288 (D-C600) or 640×512 (D-C640). The device features a wide range of display modes, including Infrared, Shimmer, and Dual Light Fusion, and offers 1x, 2x, and 4x magnification for versatile observation. With a detection range of up to 6250m for vehicles and 2361m for human targets, it is ideal for various professional applications. The OLED display, electric focus, and long battery life (up to 6 hours) ensure reliable and efficient operation in challenging conditions.

Quantity:

Share on:

D-C600 Binocular Thermal Imaging Telescope

D-C600 Binocular Thermal Imaging Telescope

D-C600 Binocular Thermal Imaging Telescope

D-C600 Binocular Thermal Imaging Telescope

D-C600 Binocular Thermal Imaging Telescope

D-C600 Binocular Thermal Imaging Telescope

D-C600 Binocular Thermal Imaging Telescope

Detector Specifications

ModelDC600DC640DC680DC690
Detector typeVOx
Infrared image resolution384×288640×512384×288640×512
Pixel spacing12µm
Field angle5.3°×4°8.8°×7.0°5.3°×4°8.8°×7.0°
Range10m-2500m
Wavelength coverage8µm~14µm
Focal length50mm
NETD≤50mK@25°C, F/1.0
Frame rate≤50Hz
Focus modeElectric focus
Display resolution1024×768
Display screen type0.39 Inch OLED
Display screen modeInfrared / Shimmer / Dual light fusion / Picture in pictures
Magnification1× / 2× / 4×
Color PaletteWhite hot, Black hot, Rainbow, Iron red, Cold color
WIFI2.4G image transmission

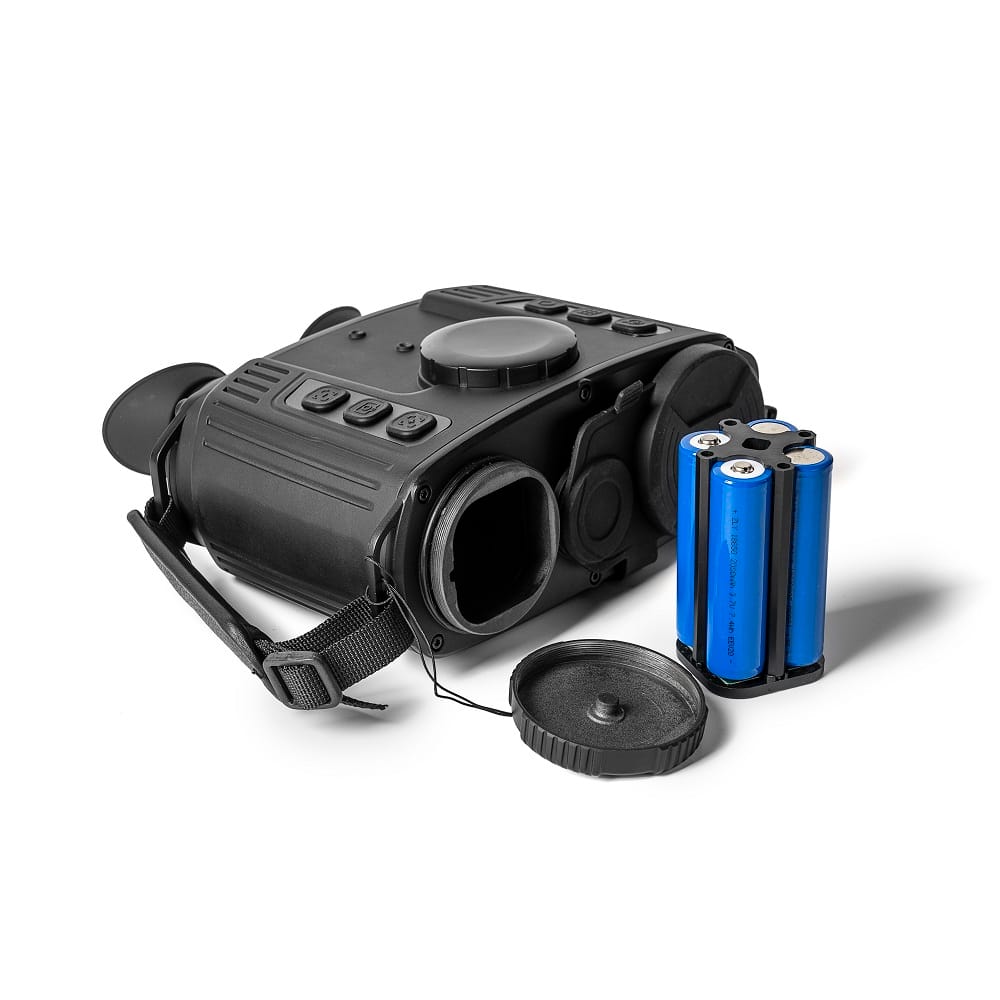

Battery type2000mAh×4 rechargeable lithium battery3200mAh×2 rechargeable lithium battery
Battery working time≥ 6 hours≥ 4 hours
Working temperature-20°C~+50°C
Storage temperature-30°C~+70°C
Product size193.1×176.8×99mm192.8×86.9×189.6mm
Product weight1.65kg

Specification

LensDC600DC640DC680DC690
Detection distanceHuman 1.7m×0.5m×0.3m 2361m2361m2361m2361m2361m
Vehicle 4.5m×2.0m×1.5m 6250m6250m6250m6250m6250m
Identification distanceHuman 1.7m×0.5m×0.3m 590m590m590m590m590m
Vehicle 4.5m×2.0m×1.5m 1563m1563m1563m1563m1563m
