D-04D Handheld Thermal Imager

Name: D-04D Handheld Thermal Imager
Brand: UAVAUTO
SKU: D-04D
Price: 299 USD
Availability: InStock

SKU:D-04D

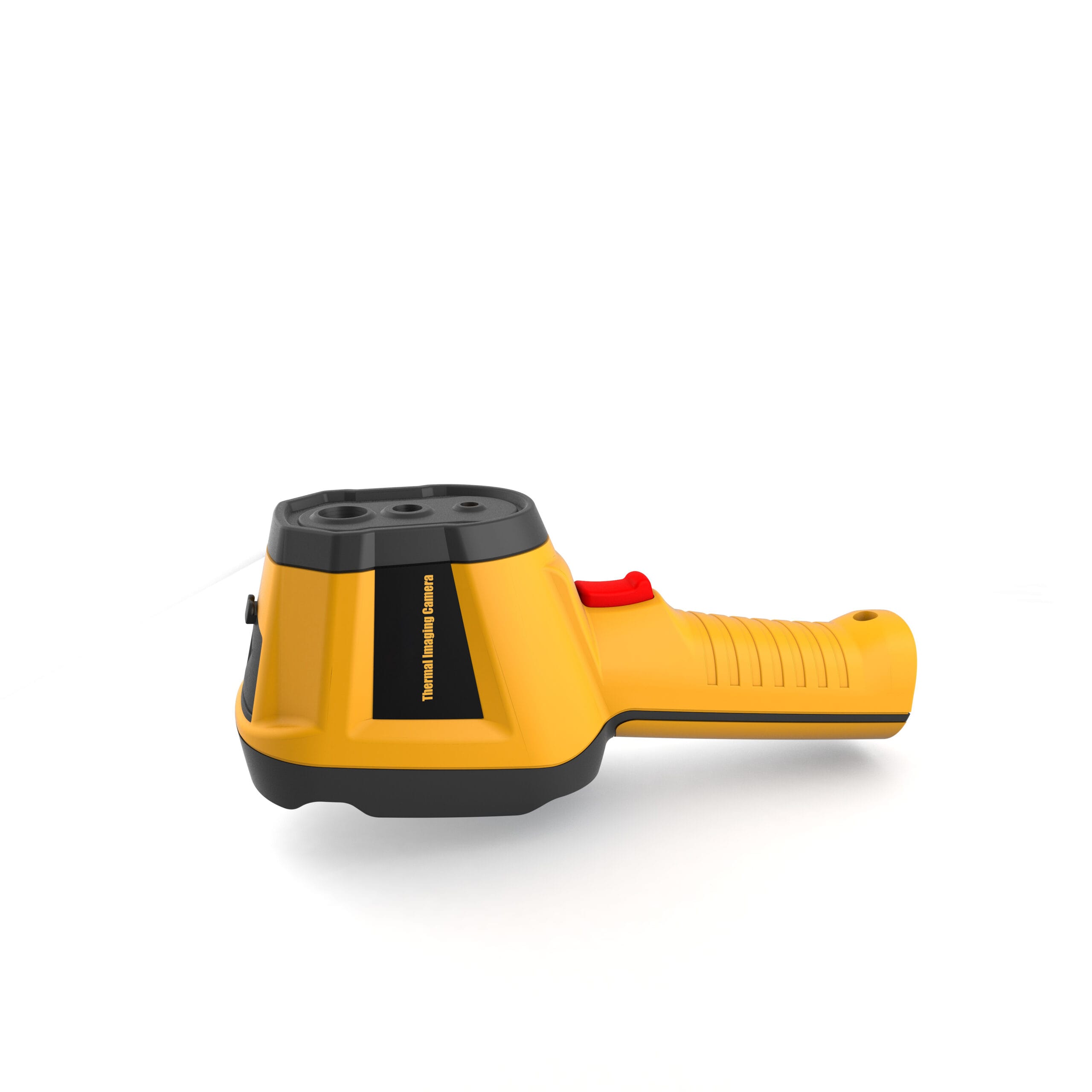

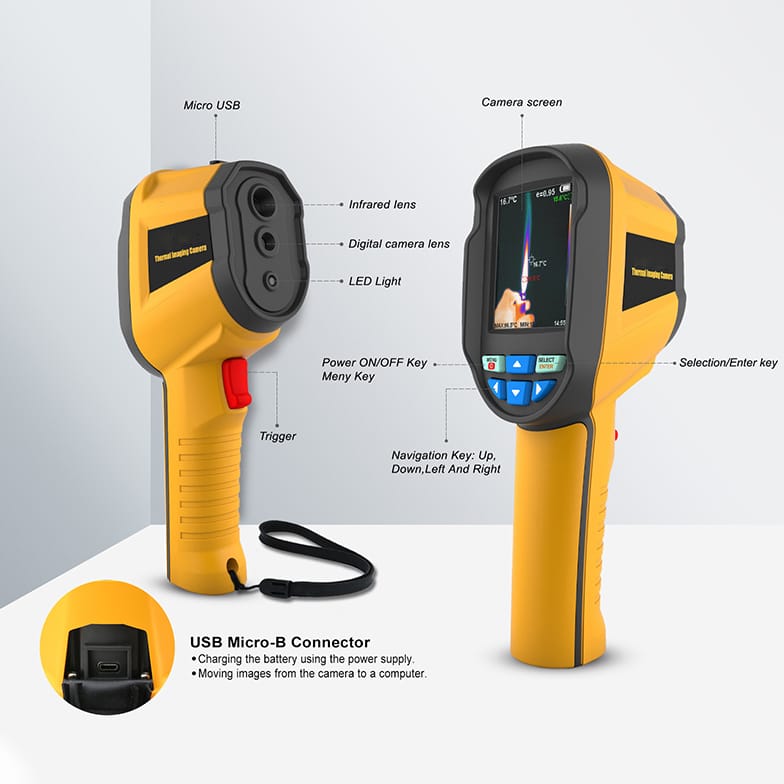

The D-04D Handheld Thermal Imager is a compact and advanced thermal imaging device designed for precision temperature measurement and imaging. With a 2.8-inch color display and a resolution of 160×120, it offers clear infrared imaging. Its features include high thermal sensitivity (0.07°C), a wide temperature measurement range (-20°C to 300°C), and various adjustable palettes such as iron, rainbow, and black/white. The device supports JPG image storage on an SD card and is powered by a rechargeable lithium battery, making it ideal for both professional and industrial applications.

Share on:

D-04D Handheld Thermal Imaging Camera Device Specifications

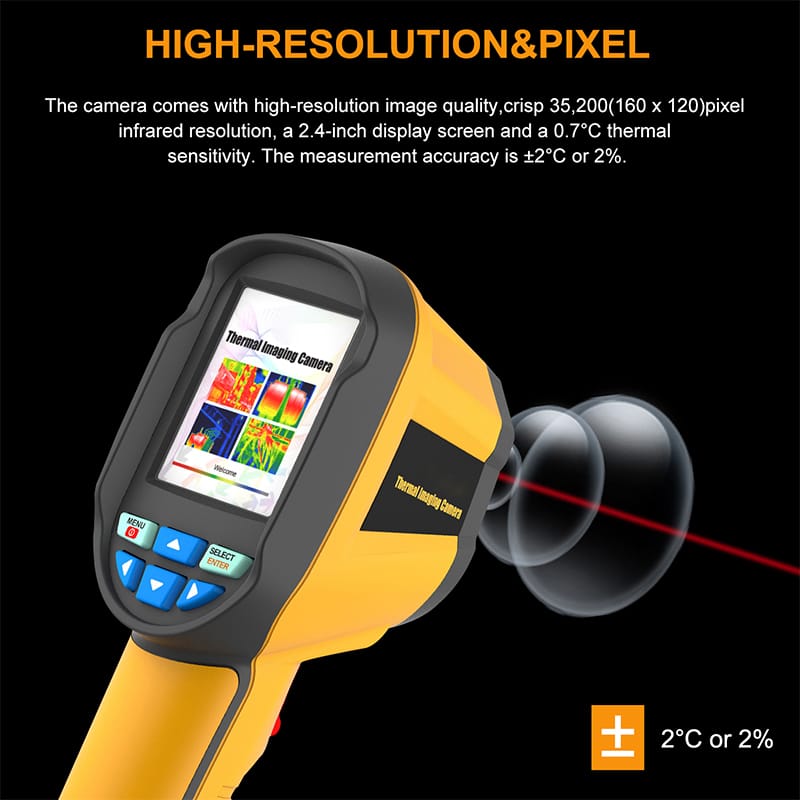

Display	2.8″ Color Screen (Upgraded)	Infrared Image Resolution	160×120
Total Pixels	35200	Field of View/Min Focus Distance	35°×27° / 0.5m
Thermal Sensitivity	0.07°C	Measurement Mode	Infrared Planar Temperature Measurement
Measurement Range	-20°C~300°C (-4°F~572°F)	Measurement Accuracy	±2% digital / ±2°C
Wavelength Range	8~14µm	Image Frequency	9Hz
Emissivity	0.1-1.0 adjustable	Focusing Mode	Fixed

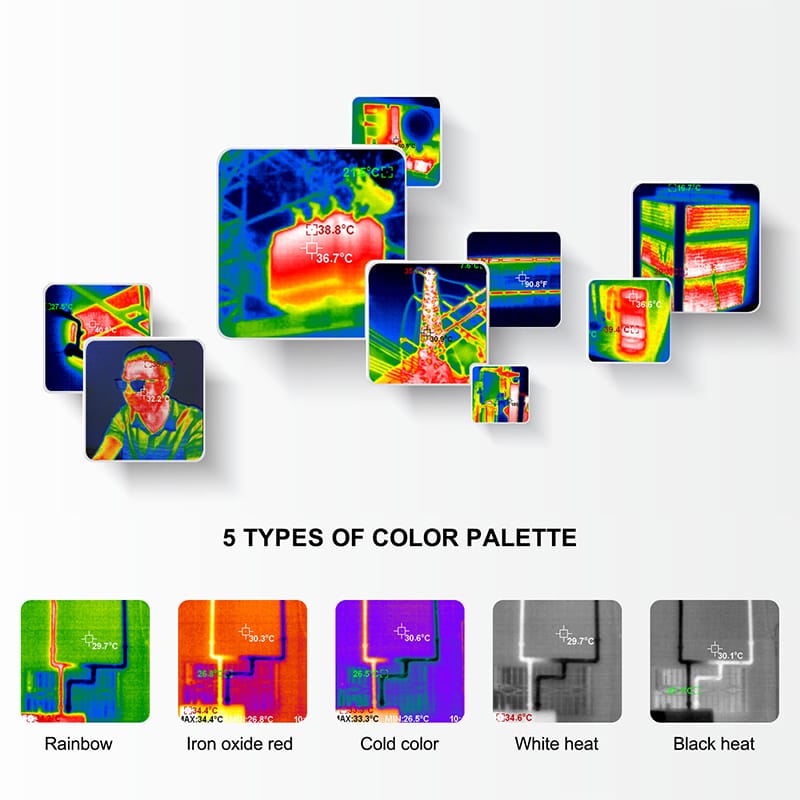

Color Palette	Iron, Rainbow, High Contrast Rainbow, Black/White	Image Storage	SD Card (3G)
File Format	JPG	Settings and Control	Local Unit Adjustment/Language/Date/Time Format/Auto Power Off

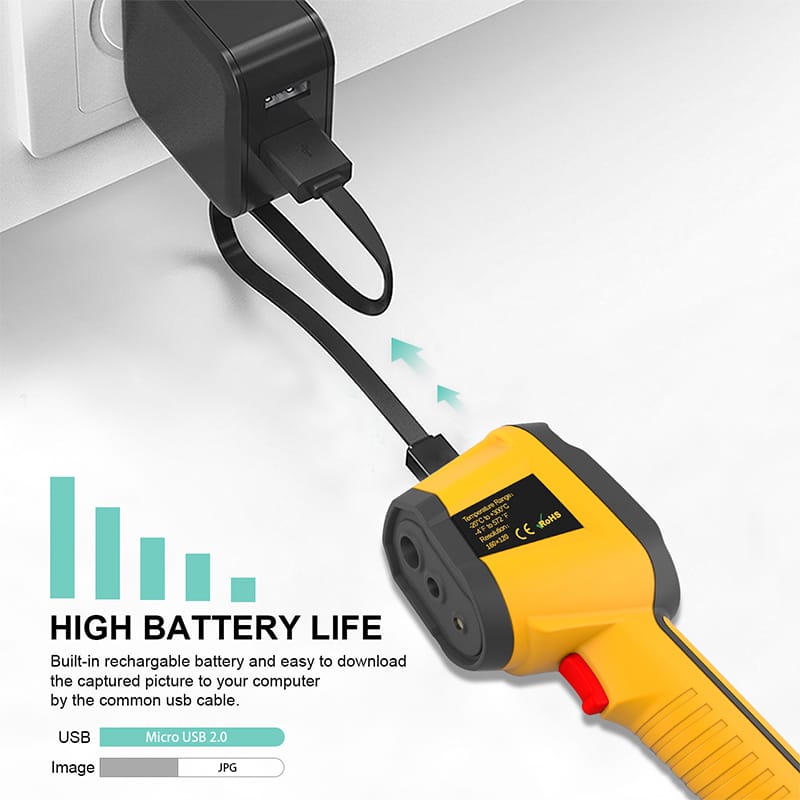

Battery Type	3.7V Rechargeable Lithium Polymer Battery	Operating Temperature	0°C~50°C
Storage Temperature	-20°C~60°C	Humidity	<85%RH
Shock Resistance	2G, IEC 60068-2-6	Dimensions	230×80×52mm
Weight	410g
