D-C680/D-C690 Binocular Thermal Imaging Telescope

SKU:D-C680/D-C690
The D-C680/D-C690 Binocular Thermal Imaging Telescope is an advanced thermal imaging solution, built for precision and clarity over long distances. It uses a VOx detector and a 50mm lens to provide high-quality thermal images at resolutions of either 384×288 (D-C680) or 640×512 (D-C690). The device supports multiple display modes, including Infrared, Shimmer, and Picture-in-Picture, with magnification levels of 1x, 2x, and 4x. Designed for rigorous field use, it can detect vehicles at a range of up to 6250m and human targets up to 2361m. With an OLED display, electric focus, and up to 4 hours of battery life, it ensures superior performance in diverse environmental conditions.

Quantity:

Share on:

D-C680/D-C690 Binocular Thermal Imaging Telescope

D-C680/D-C690 Binocular Thermal Imaging Telescope

D-C680/D-C690 Binocular Thermal Imaging Telescope

D-C680/D-C690 Binocular Thermal Imaging Telescope

Detector Specifications

ModelDC600DC640DC680DC690
Detector typeVOx
Infrared image resolution384×288640×512384×288640×512
Pixel spacing12µm
Field angle5.3°×4°8.8°×7.0°5.3°×4°8.8°×7.0°
Range10m-2500m
Wavelength coverage8µm~14µm
Focal length50mm
NETD≤50mK@25°C, F/1.0
Frame rate≤50Hz
Focus modeElectric focus
Display resolution1024×768
Display screen type0.39 Inch OLED

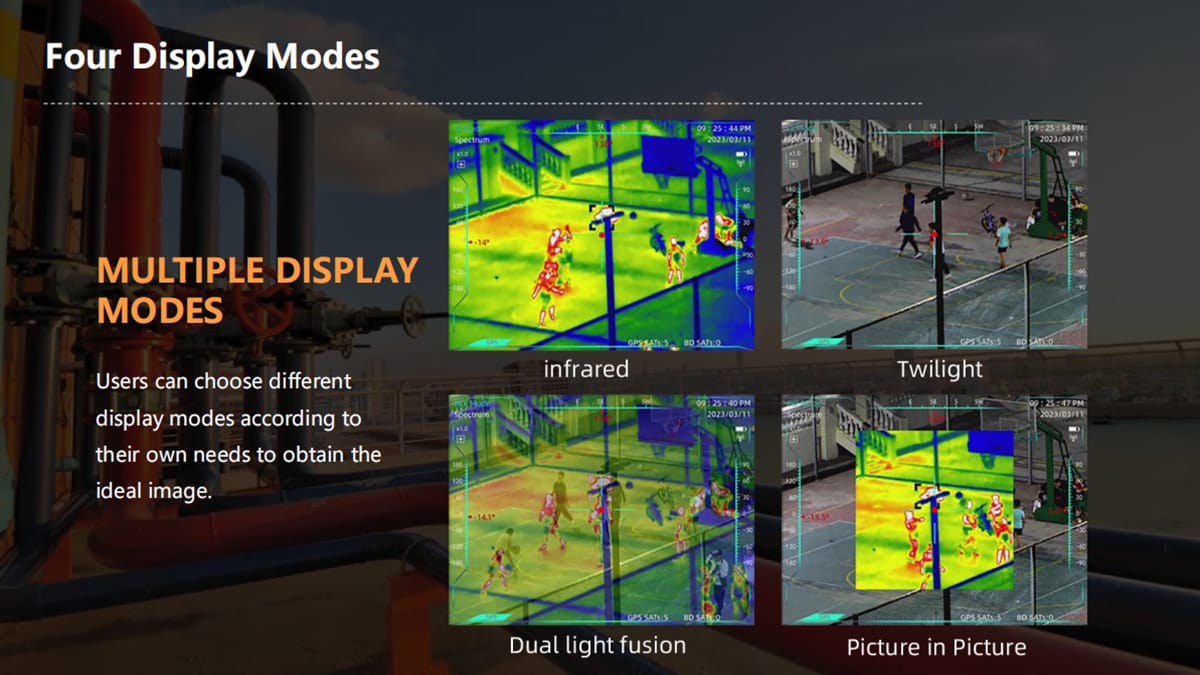

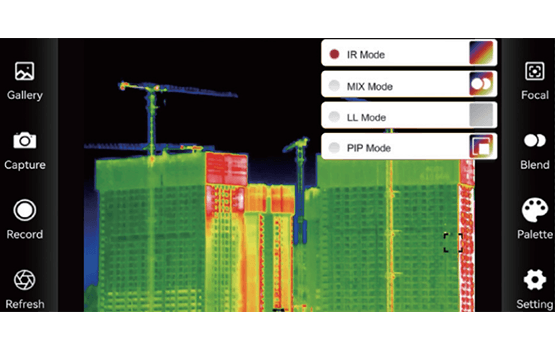

Display screen modeInfrared / Shimmer / Dual light fusion / Picture in pictures
Magnification1× / 2× / 4×
Color PaletteWhite hot, Black hot, Rainbow, Iron red, Cold color
WIFI2.4G image transmission

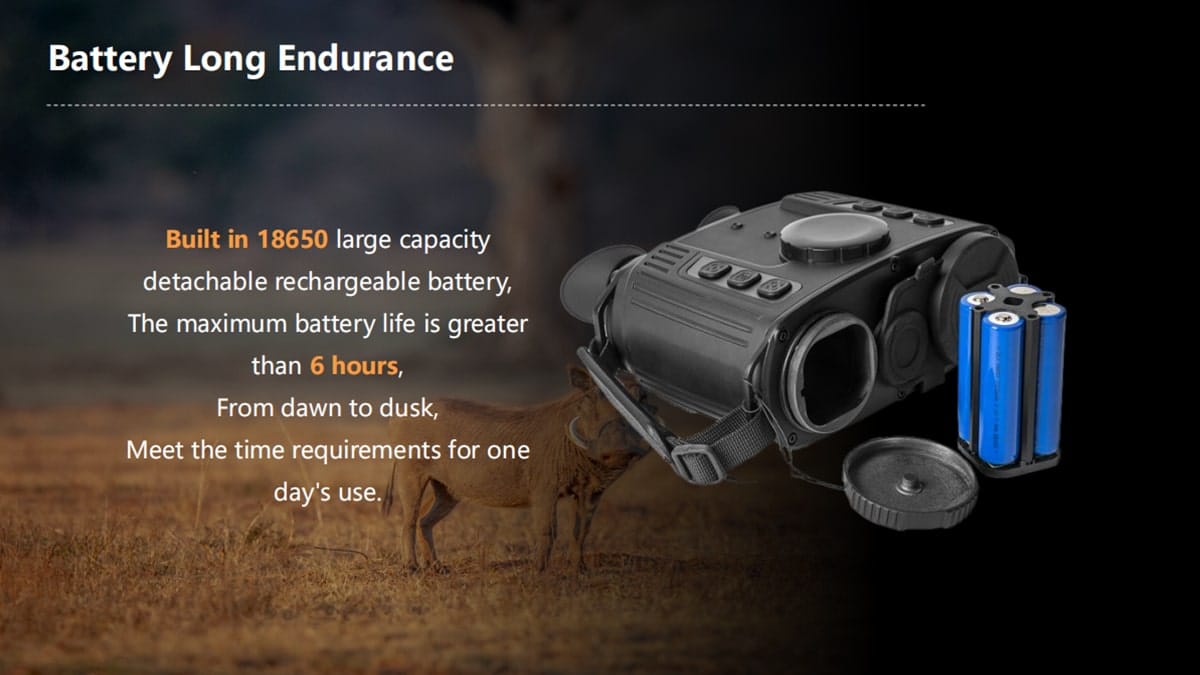

Battery type2000mAh×4 rechargeable lithium battery3200mAh×2 rechargeable lithium battery
Battery working time≥ 6 hours≥ 4 hours
Working temperature-20°C~+50°C
Storage temperature-30°C~+70°C
Product size193.1×176.8×99mm192.8×86.9×189.6mm
Product weight1.65kg

Specification

LensDC600DC640DC680DC690
Detection distanceHuman 1.7m×0.5m×0.3m 2361m2361m2361m2361m2361m
Vehicle 4.5m×2.0m×1.5m 6250m6250m6250m6250m6250m
Identification distanceHuman 1.7m×0.5m×0.3m 590m590m590m590m590m
Vehicle 4.5m×2.0m×1.5m 1563m1563m1563m1563m1563m
