D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope is a high-performance thermal imaging device designed for outdoor use. Equipped with advanced VOx detector technology, it provides clear infrared images at resolutions of 384×288 (D-C18) and 640×512 (D-C19). With multiple lens options (25mm, 35mm, 54mm), it offers extensive detection and identification ranges for humans and vehicles in various environments. The device supports manual focusing, multiple color palettes, and features like hot spot tracking and picture-in-picture mode. Ideal for surveillance, search and rescue, and wildlife observation, this versatile thermographic telescope ensures reliable performance in challenging conditions.

D-C18/D-C19 Outdoor Thermographic Telescope is a high-performance thermal imaging device designed for outdoor use. Equipped with advanced VOx detector technology, it provides clear infrared images at resolutions of 384×288 (D-C18) and 640×512 (D-C19). With multiple lens options (25mm, 35mm, 54mm), it offers extensive detection and identification ranges for humans and vehicles in various environments. The device supports manual focusing, multiple color palettes, and features like hot spot tracking and picture-in-picture mode. Ideal for surveillance, search and rescue, and wildlife observation, this versatile thermographic telescope ensures reliable performance in challenging conditions.

SKU: D-C18/D-C19

Description

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

D-C18/D-C19 Outdoor Thermographic Telescope

ModelDC18DC19
Detector typeVOxVOx
Infrared image resolution384×288640×512
Pixel spacing12μm12μm
Infrared focal length25mm; 35mm; 54mm
Wavelength coverage8μm ~ 14μm
NETD≤ 40mK@25°C, F/1.0
Frame rate≤ 50Hz
Focusing modeManual
Display screen type0.39 inch OLED
Visible image resolution1440 × 1080
Magnification1× / 2× / 4× / 8×
Diopter adjustment±5D
Hot point trackSupport
Picture in pictureSupport
Color paletteWhite hot, Black hot, Fire hot, Rainbow, Iron red, Cold color
LanguageSimplified Chinese, Traditional Chinese, English, Russian, German
Image/Video formatJPG/MP4
USB interfaceType-C, Charging/export image and video
Battery type18350 Detachable rechargeable lithium battery (1400mAh×2)
Impact≤1000G

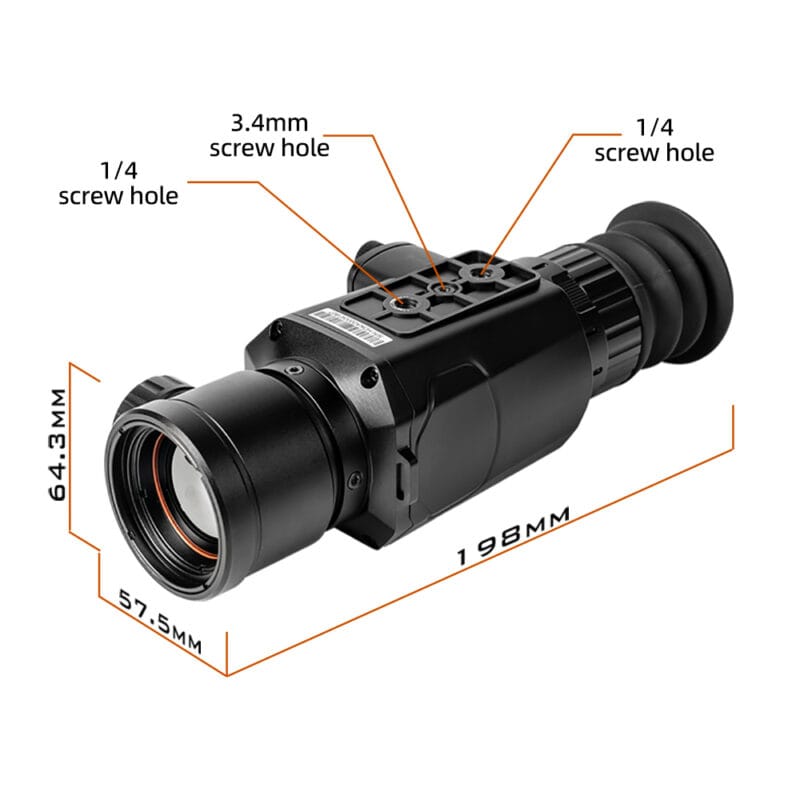

Product size201×68×73mm
Product weight605g
Specification
Lens25mm35mm54mm
Detection distanceHuman (1.7mx0.5mx0.3m)1181m1653m2550m
Cars (4.5mx2.0mx1.5m)3125m4375m6750m
Identification distanceHuman (1.7mx0.5mx0.3m)295m413m638m
Cars (4.5mx2.0mx1.5m)781m1094m1688m

Additional information

Infrared focal length

35MM
