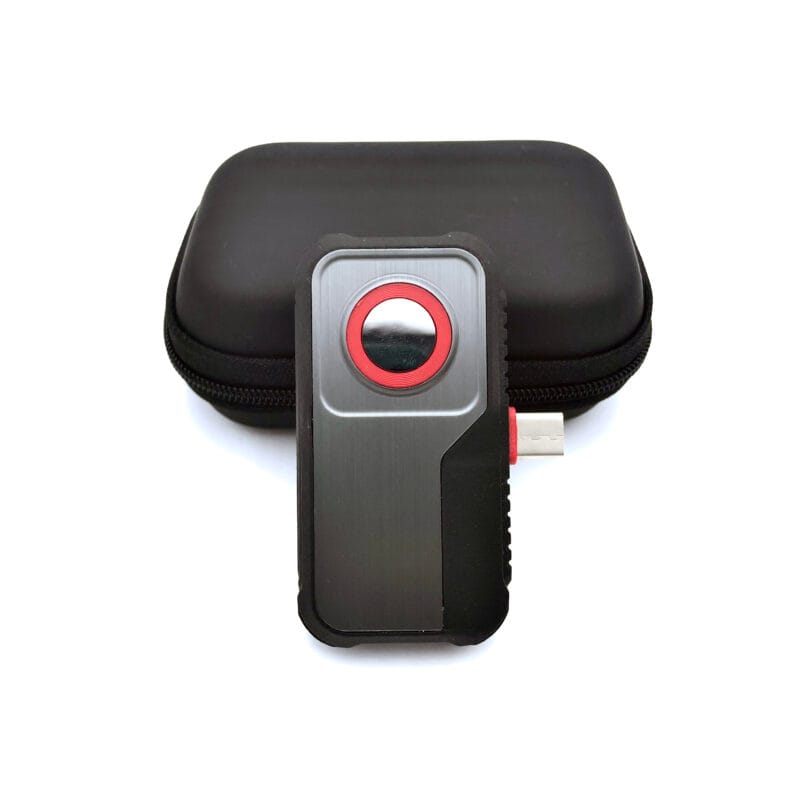

D-203U Mobile Phone Thermal Imager

Detector
type

Amorphous
silicon uncooled infrared focal plane

Resolution

256×192

Cell
size

12μm

Field of
view

56.0°×42.2°

Working
band

8~14μm

NETD

≤
50mk@25℃,@F/1.1

Focal
length

3.2mm

Frame
rate

≤25Hz

Focus
method

Free
focus

Scope

-20℃~+550℃

Precision

±2℃ or
±2%

Resolution

0.1℃

Emissivity
setting

0.01~1.00
adjustable

Temperature
measurement mode

Center
point/hot and cold spot tracking

Palette

Rainbow/Iron
Red/Cool/White Hot/Black Hot

Temperature
measurement method

Point, line,
surface temperature measurement

Range of
working temperature

-10℃ ~ 50
℃

Storage
temperature range

-20℃ ~ 60
℃

Size

49.5*36.1*29.3mm

Weight

55g
