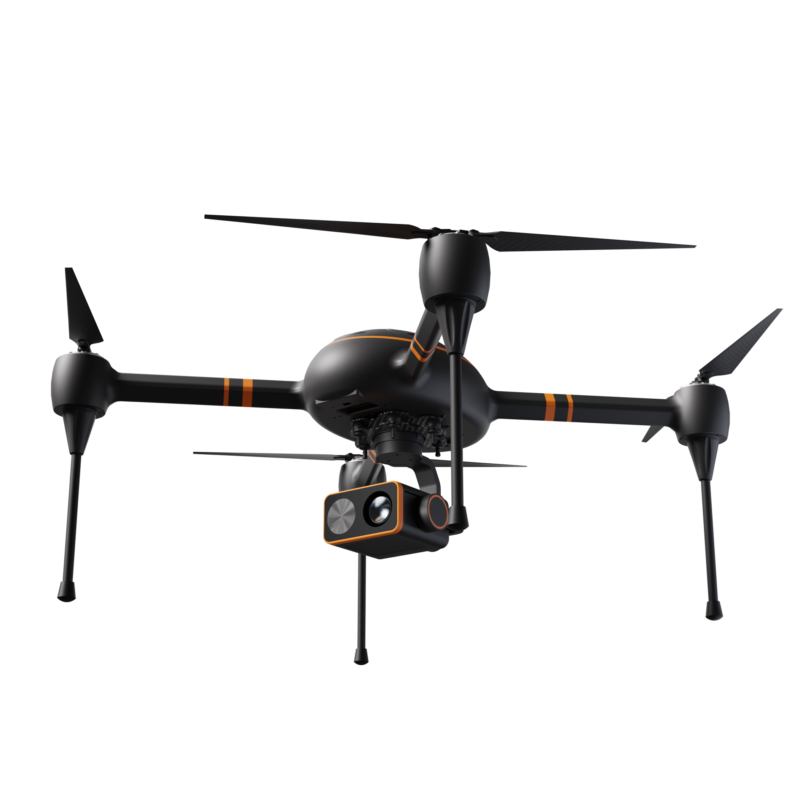

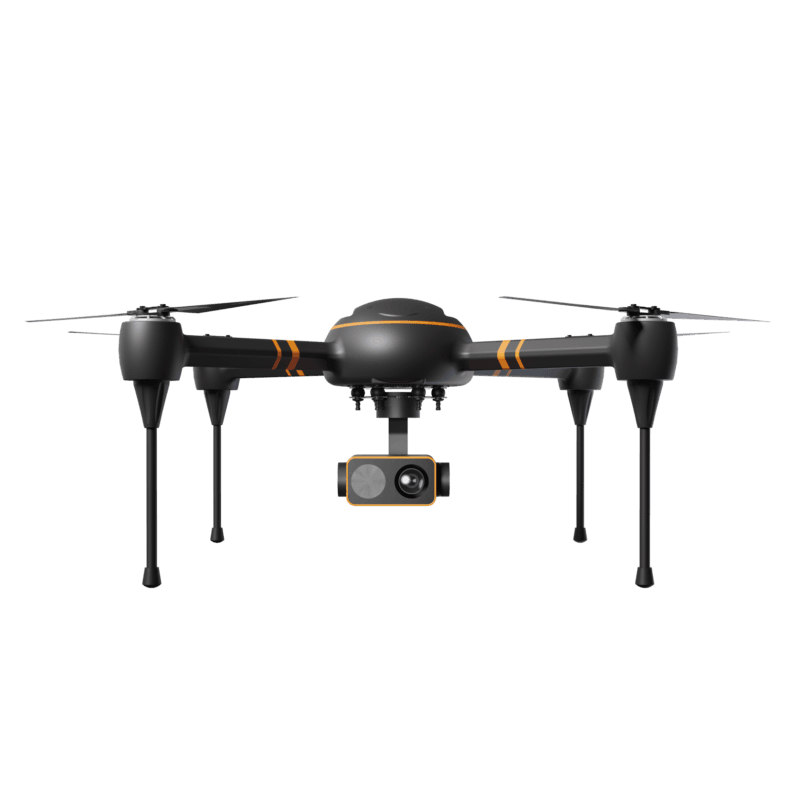

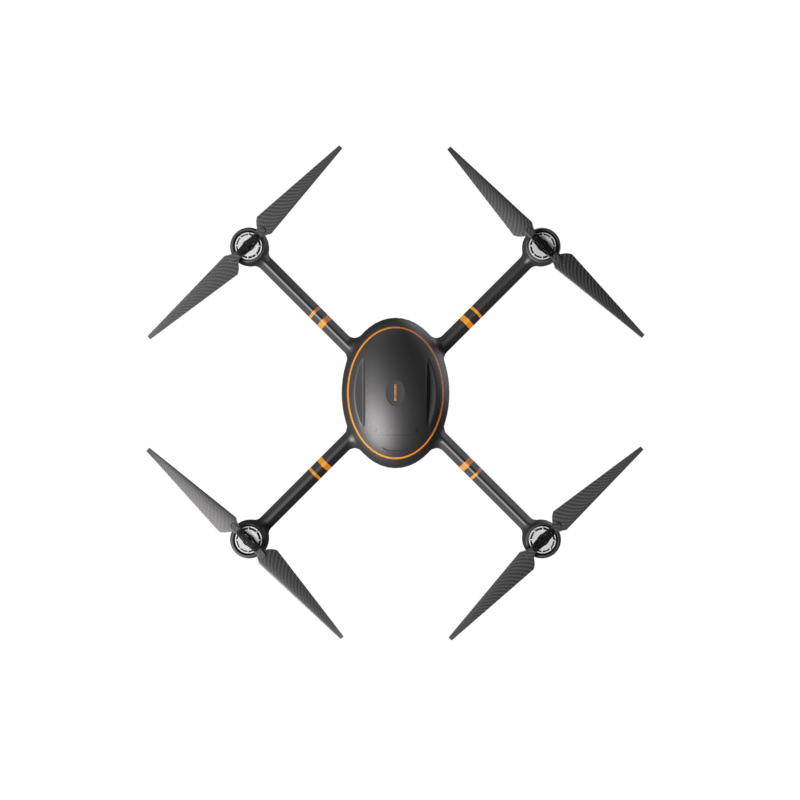

D600 drone: 20KM image transmission, 90 minute endurance, reshaping aerial operation experience

SKU:D600
The D600 is a versatile flight platform designed for various applications, providing enhanced feasibility for aerial operations. The D600 features a compact design, full carbon fiber integration, a small 680mm wheelbase, and up to 90 minutes of flight time (without payload), making it a tailor-made solution for professional applications across multiple industries.
Add To Quote

Share on:

D600 drone: 20KM image transmission, 90 minute endurance, reshaping aerial operation experience

D600 drone: 20KM image transmission, 90 minute endurance, reshaping aerial operation experience

D600 drone: 20KM image transmission, 90 minute endurance, reshaping aerial operation experience

D600 drone: 20KM image transmission, 90 minute endurance, reshaping aerial operation experience

D600 drone: 20KM image transmission, 90 minute endurance, reshaping aerial operation experience

D600 drone: 20KM image transmission, 90 minute endurance, reshaping aerial operation experience

1. Overview

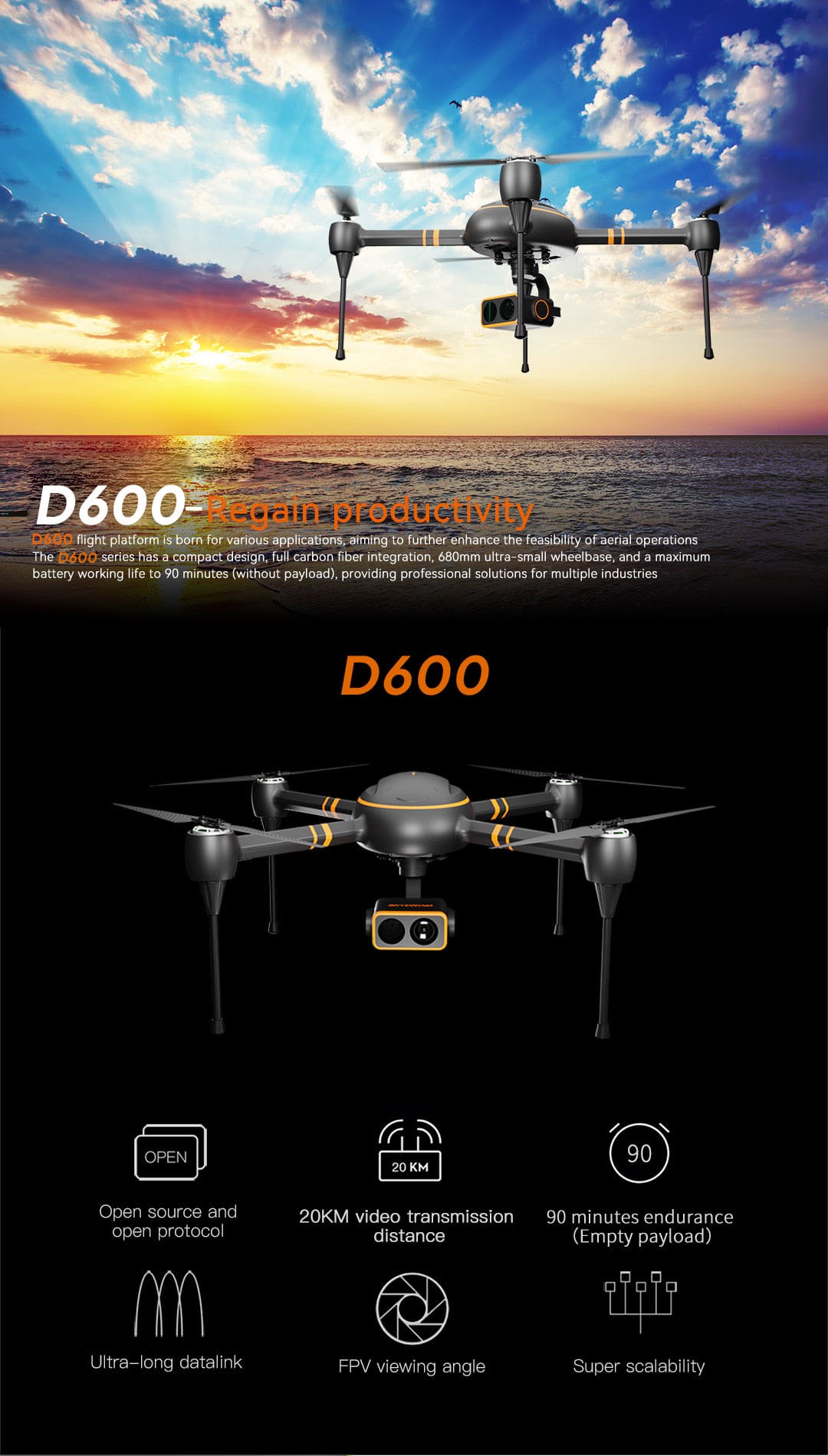

The D600 is a versatile flight platform designed for various applications, providing enhanced feasibility for aerial operations. The D600 features a compact design, full carbon fiber integration, a small 680mm wheelbase, and up to 90 minutes of flight time (without payload), making it a tailor-made solution for professional applications across multiple industries.

2. Product Features

  • Open-source and open protocol
  • 20KM video transmission distance
  • 90 minutes of battery life (without payload)
  • Long-range data link
  • FPV view
  • Exceptional scalability

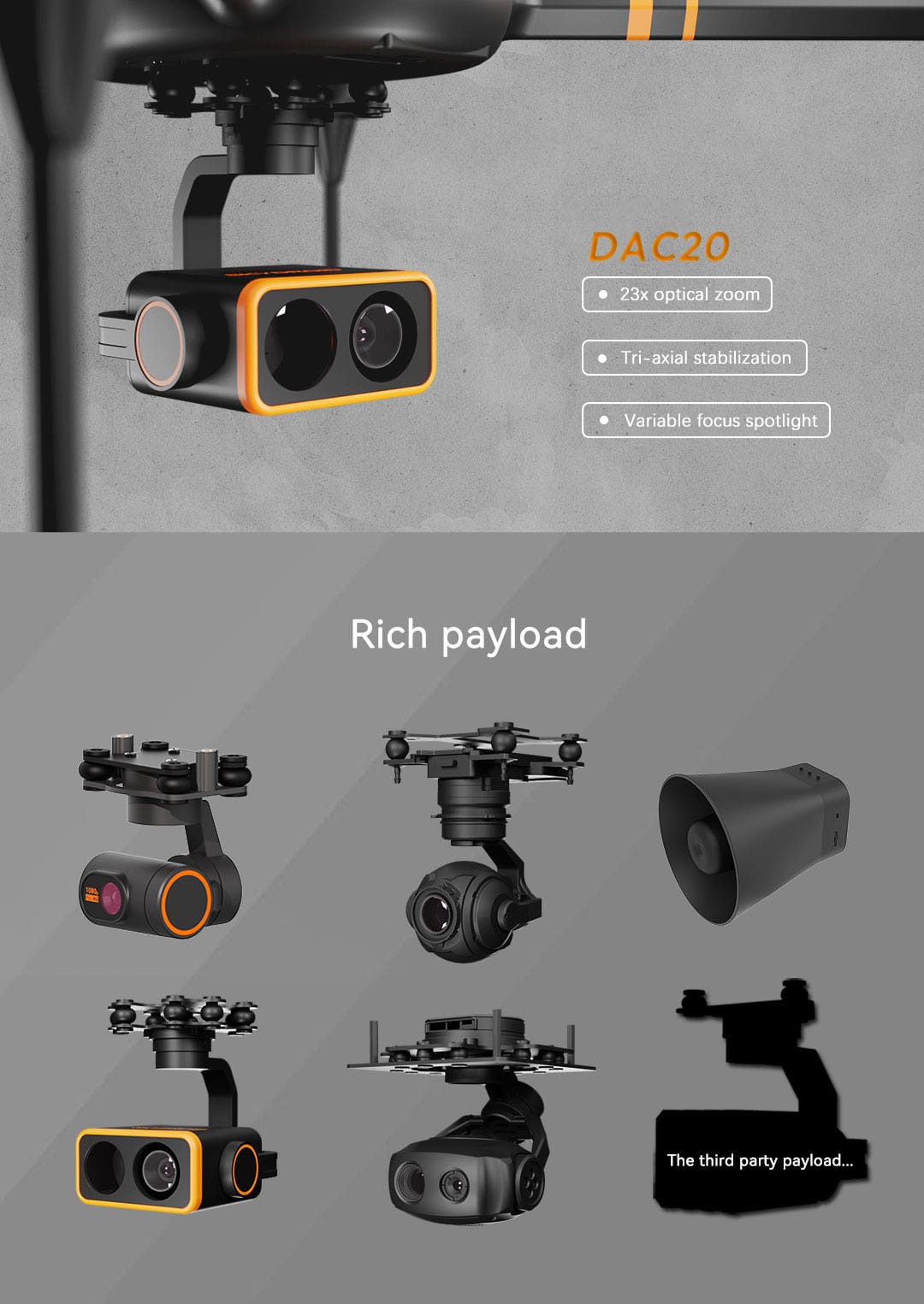

  • Payload options

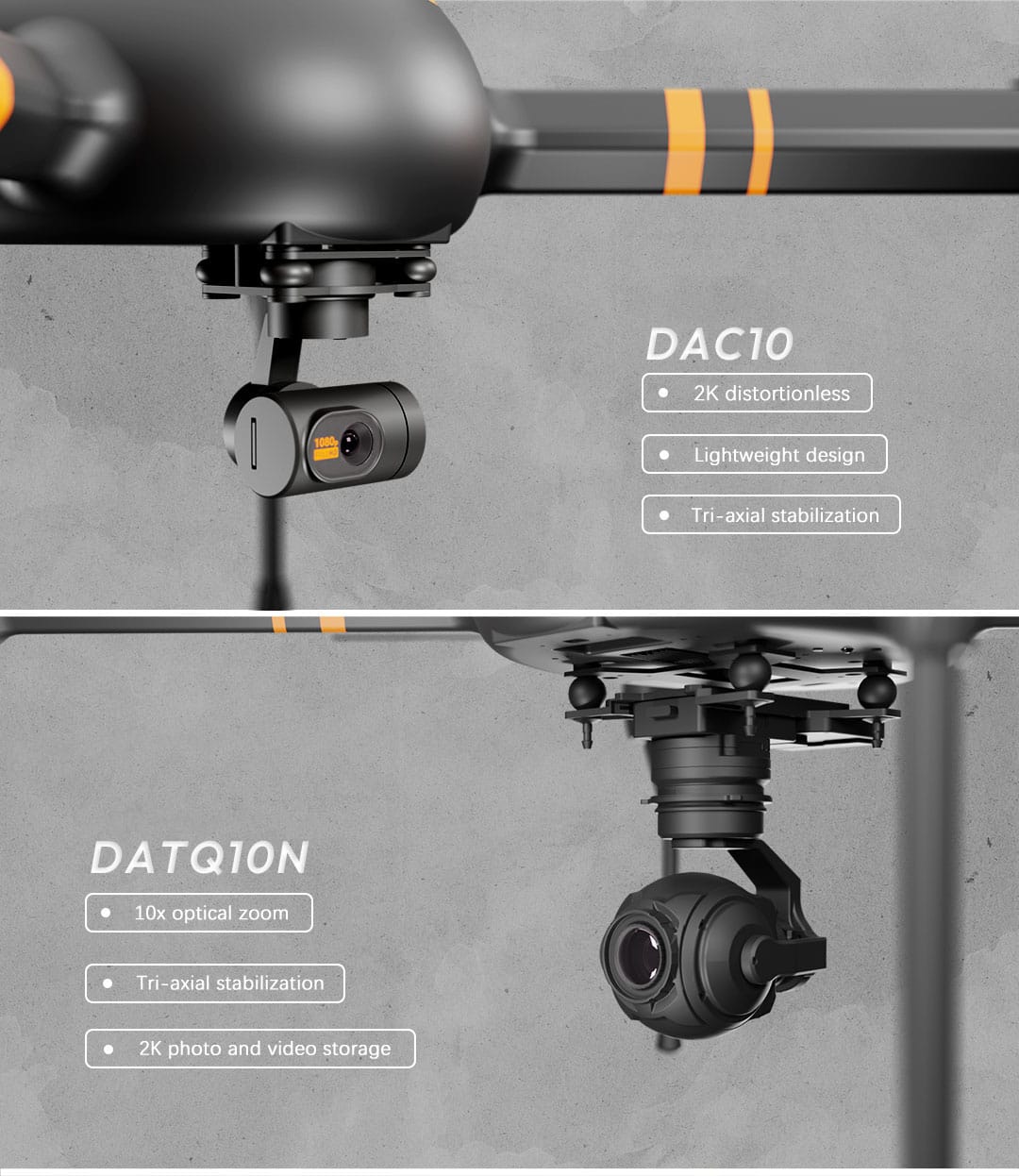

    • C10: 2K distortion-free, lightweight design, three-axis stabilization
    • TQ10N: 10x optical zoom, three-axis stabilization, 2K photo and video storage
    • C20: 23x optical zoom, three-axis stabilization, adjustable focus spotlight

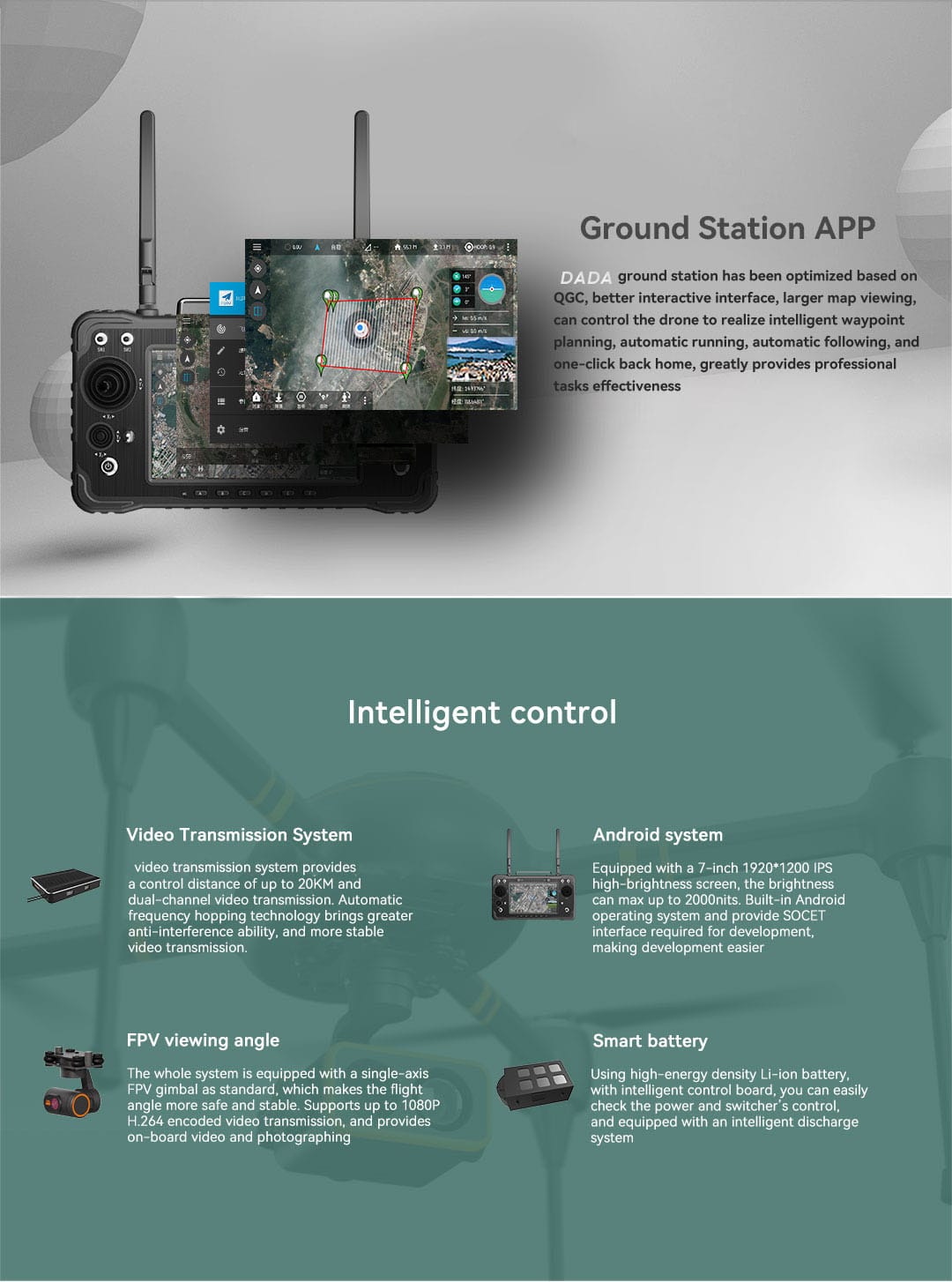

  • Advanced Ground Station Application
    • Optimized interaction and map viewing functions
    • Includes smart waypoint planning, autonomous operation, auto-follow, and one-click return home functions
  • Smart control
    • 20KM control range
    • 2K video transmission, 4K/60fps using frequency hopping technology for stable transmission
    • 7-inch, 1920×1200 IPS high-brightness screen, Android system
  • Smart battery system
    • High-energy lithium-ion battery
    • Smart discharge and control system

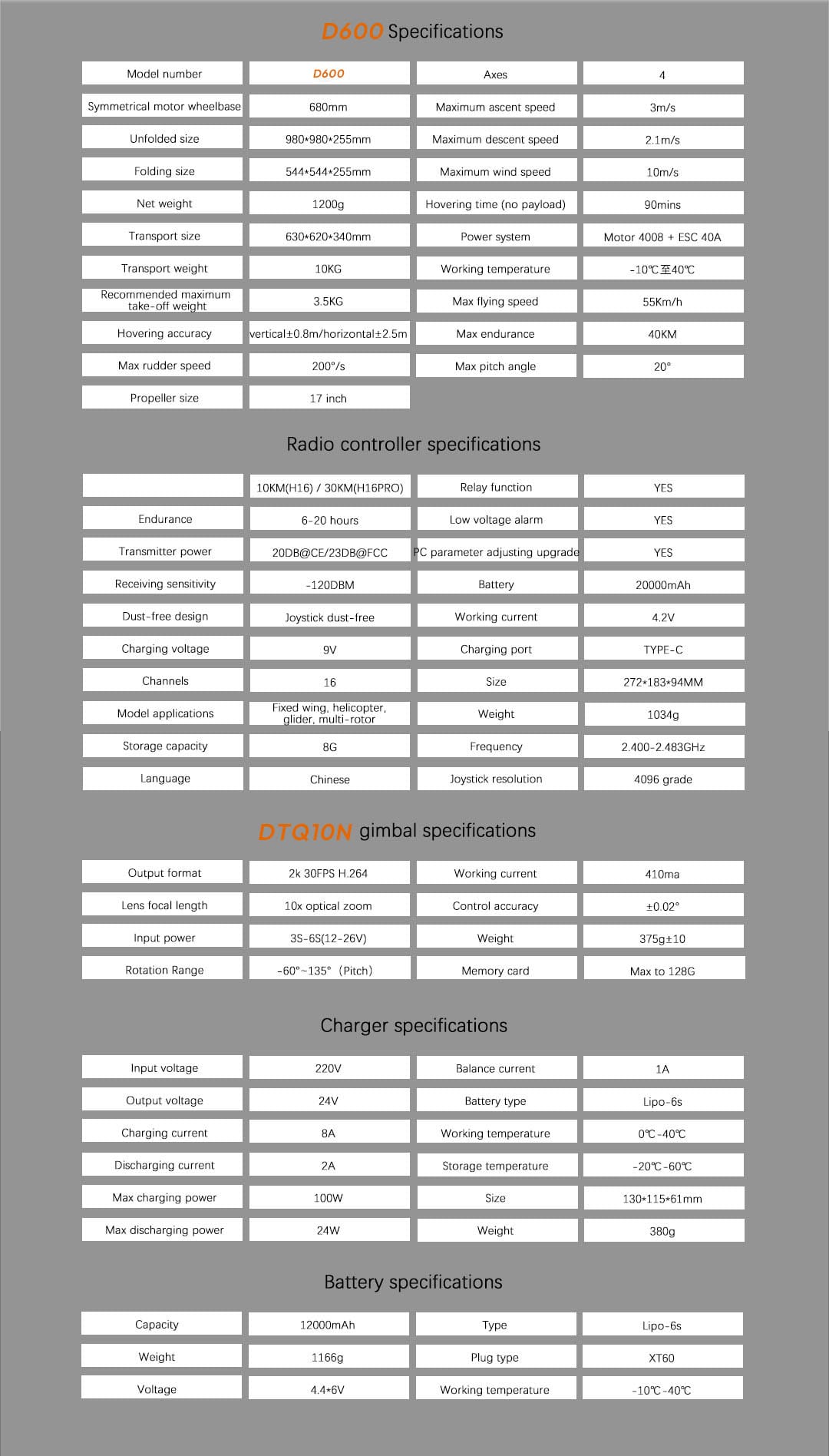

3. Detailed Technical Parameters

D600 Specifications

Model numberD600
Axes4
Symmetrical motor wheelbase680mm
Unfolded size980×980×255mm
Folding size544×544×255mm
Net weight1200g
Transport size630×620×340mm
Transport weight10KG
Recommended maximum take-off weight3.5KG
Hovering accuracyVertical ±0.8m, Horizontal ±2.5m
Max rudder speed200°/s
Propeller size17 inch
Maximum ascent speed3m/s
Maximum descent speed2.1m/s
Maximum wind speed10m/s
Hovering time (no payload)90mins
Power systemMotor 4008 + ESC 40A
Working temperature-10℃ to 40℃
Max flying speed55Km/h
Max endurance40KM
Max pitch angle20°

Radio Controller Specifications

Endurance6-20 hours
Relay functionYES
Low voltage alarmYES
Transmitter power20DB@CE/23DB@FCC
PC parameter adjusting upgradeYES
Receiving sensitivity-120DBM
Battery20000mAh
Dust-free designJoystick dust-free
Working current4.2V
Charging voltage9V
Charging portTYPE-C
Channels16
Size272×183×94mm
Model applicationsFixed wing, helicopter, glider, multi-rotor
Weight1034g
Storage capacity8G
Frequency2.400-2.483GHz
LanguageChinese
Joystick resolution4096 grade

TQ10N Gimbal Specifications

Output format2K 30FPS H.264
Working current410mA
Lens focal length10x optical zoom
Control accuracy±0.02°
Input power35-65(12-26V)
Weight375g±10
Rotation range-60°~135° (Pitch)
Memory cardMax 128G

Charger Specifications

Input voltage220V
Balance current1A
Output voltage24V
Battery typeLipo-6s
Charging current8A
Working temperature0℃ to 40℃
Discharging current2A
Storage temperature-20℃ to 60℃
Max charging power100W
Size130×115×61mm
Max discharging power24W
Weight380g

Battery Specifications

Capacity12000mAh
Weight1166g
Voltage4.4*6V
TypeLipo-6s
Plug typeXT60
Working temperature-10℃ to 40℃

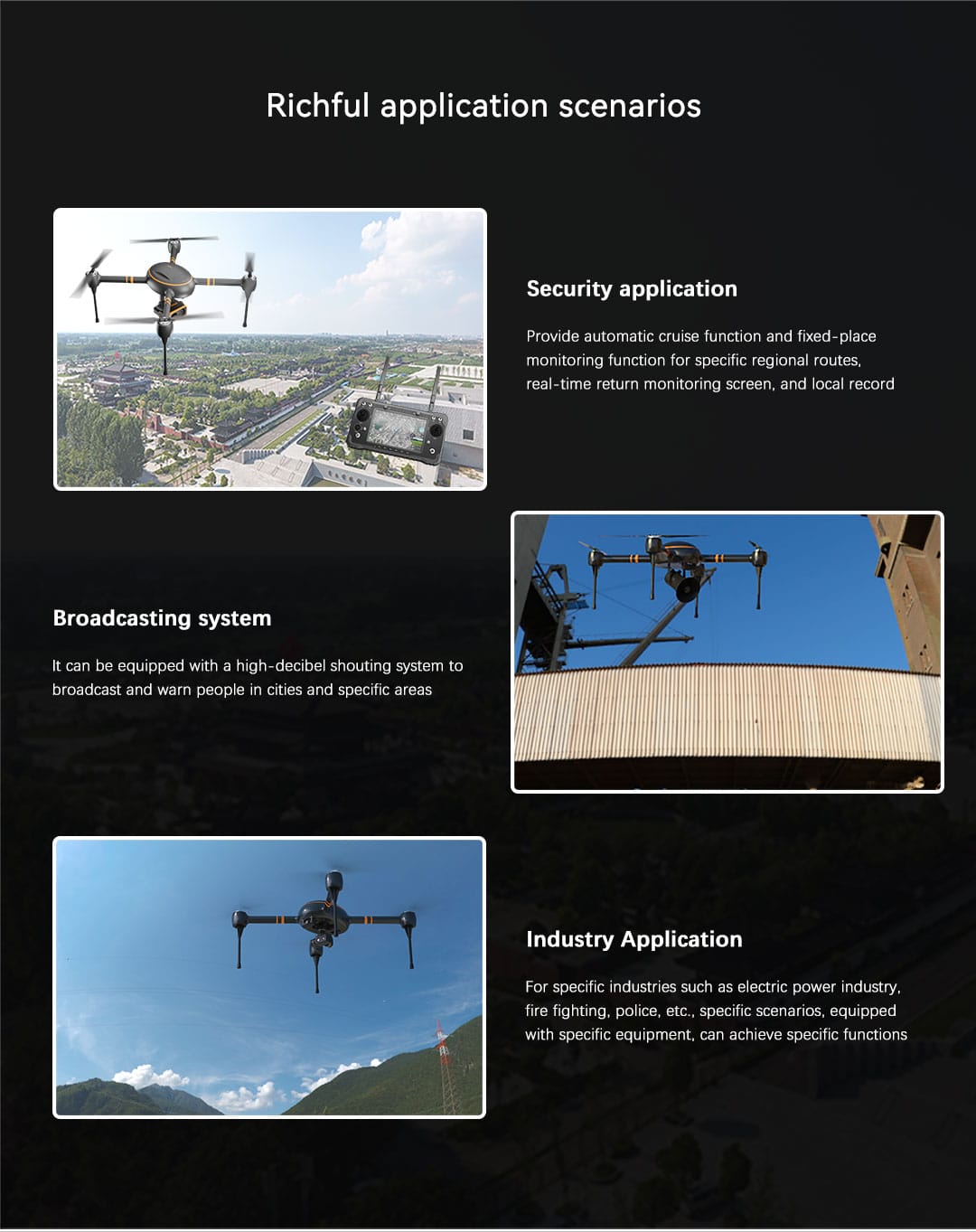

4. Application Scenarios

  • Security applications: Automated patrol and fixed-point monitoring for specific route areas with real-time monitoring and local video recording features.
  • Broadcast system: Equipped with a high-decibel public address system for broadcasting over urban and regional areas.
  • Industry applications: Suitable for industries such as power, fire fighting, and police, with custom devices for specific functions.
