D-F722 V2 Flight Controller X8 ICM42688P&BMP280 30.5mm for Racing Drone

SKU:D-F722-V2
The D-F722 V2 Flight Controller is designed for racing drones, featuring advanced components such as the STM32F722RET6 CPU and ICM42688P Gyro, ensuring high performance and precision in flight control. It is compatible with BetaFlight and iNav software and includes multiple ports for camera, GPS, OSD, and more. With 5 UART ports, it supports various receivers and modules, offering flexible connection options. The device is lightweight, at only 9.4 grams, and has a compact 37mm x 37mm form factor with standard 30.5mm mounting holes.

Share on:

D-RC F722 V2 Flight Controller X8 ICM42688P&BMP280 30.5mm for Racing Drone

The D-RC F722 V2 Flight Controller is designed for racing drones, featuring advanced components such as the STM32F722RET6 CPU and ICM42688P Gyro, ensuring high performance and precision in flight control. It is compatible with BetaFlight and iNav software and includes multiple ports for camera, GPS, OSD, and more. With 5 UART ports, it supports various receivers and modules, offering flexible connection options. The device is lightweight, at only 9.4 grams, and has a compact 37mm x 37mm form factor with standard 30.5mm mounting holes.

D-F722 V2 Flight Controller X8 ICM42688P&BMP280 30.5mm for Racing Drone

D-F722 V2 Flight Controller X8 ICM42688P&BMP280 30.5mm for Racing Drone

D-RC F722 V2 Flight Controller X8 ICM42688P&BMP280 30.5mm for Racing Drone

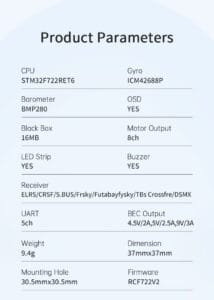

D-RC F722 V2 Flight Controller X8 ICM42688P&BMP280 30.5mm for Racing Drone Device Specifications

SpecificationDetails
CPUSTM32F722RET6
GyroICM42688P
BarometerBMP280
OSDYes
Black Box16MB
Motor Output8 channels
LED StripYes
BuzzerYes
ReceiverELRS/CRSF/S.Bus/Frsky/FutabayfySky/TBs Crossfire/DSMX
UART5 channels
BEC Output4.5V/2A, 5V/2.5A, 9V/3A
Weight9.4g
Dimensions37mm x 37mm
Mounting Hole30.5mm x 30.5mm
FirmwareRCF722V2
