DA MicroPro Uncooled Infrared Thermal Imaging Module

Name: DA MicroPro Uncooled Infrared Thermal Imaging Module
Brand: UAVAUTO
SKU: DA MicroPro
Price: 999 USD
Availability: InStock

SKU:DA MicroPro

The DA MicroPro is an ultra‑compact uncooled infrared thermal imaging module with dimensions of just 13.6×13.6×11.2 mm and a weight of only 4.1 g. Featuring a choice of high‑performance detectors (384×288 12 μm or 640×512 12 μm) and ultra‑low power consumption (<0.5 W / 0.8 W), this module is designed for OEM assembly and integration into the most space‑sensitive devices. Its compact design, multiple configuration options, and digital video interfaces (HDMI, BT656, MIPI) make it ideal for portable, ultra‑miniature, and low‑power thermal imaging applications.

Share on:

1. DA MicroPro Uncooled Infrared Thermal Imaging Module Overview

2. Product Features

Ultra‑small form factor & ultra‑light weight: 13.6×13.6×11.2 mm footprint and only 4.1 g (without lens) enable integration into the smallest devices.
Ultra‑low power consumption: <0.5 W (384 model) / <0.8 W (640 model) typical, ideal for battery‑powered systems.
Digital video interfaces: HDMI (1080P), BT656, and MIPI options provide flexible connectivity.
High‑sensitivity detector options: Choose 384×288 12 μm (≤50 mK) or 640×512 12 μm (≤40 mK) for optimal balance of resolution and thermal contrast.
Adaptive non‑uniformity correction: Ensures consistent image quality without mechanical shutter.
Fast start‑up: <3 seconds from power‑on to image.
Advanced image adjustment: Polarity (black/white hot, pseudo color), digital zoom (up to 8×), brightness/contrast control, image flip, and multiple cursor options.
Wide input voltage & protection: Operates from 2.5 V to 5.5 V DC with built‑in reverse polarity and under/over voltage protection.
Rugged environmental performance: Operating temperature range from -40°C to +60°C (special), vibration/shock resistance per GJB 150 standards, and 1000g shock capability.
Versatile application range: Suitable for vehicles, surveillance, telescopes, UAVs, and more.

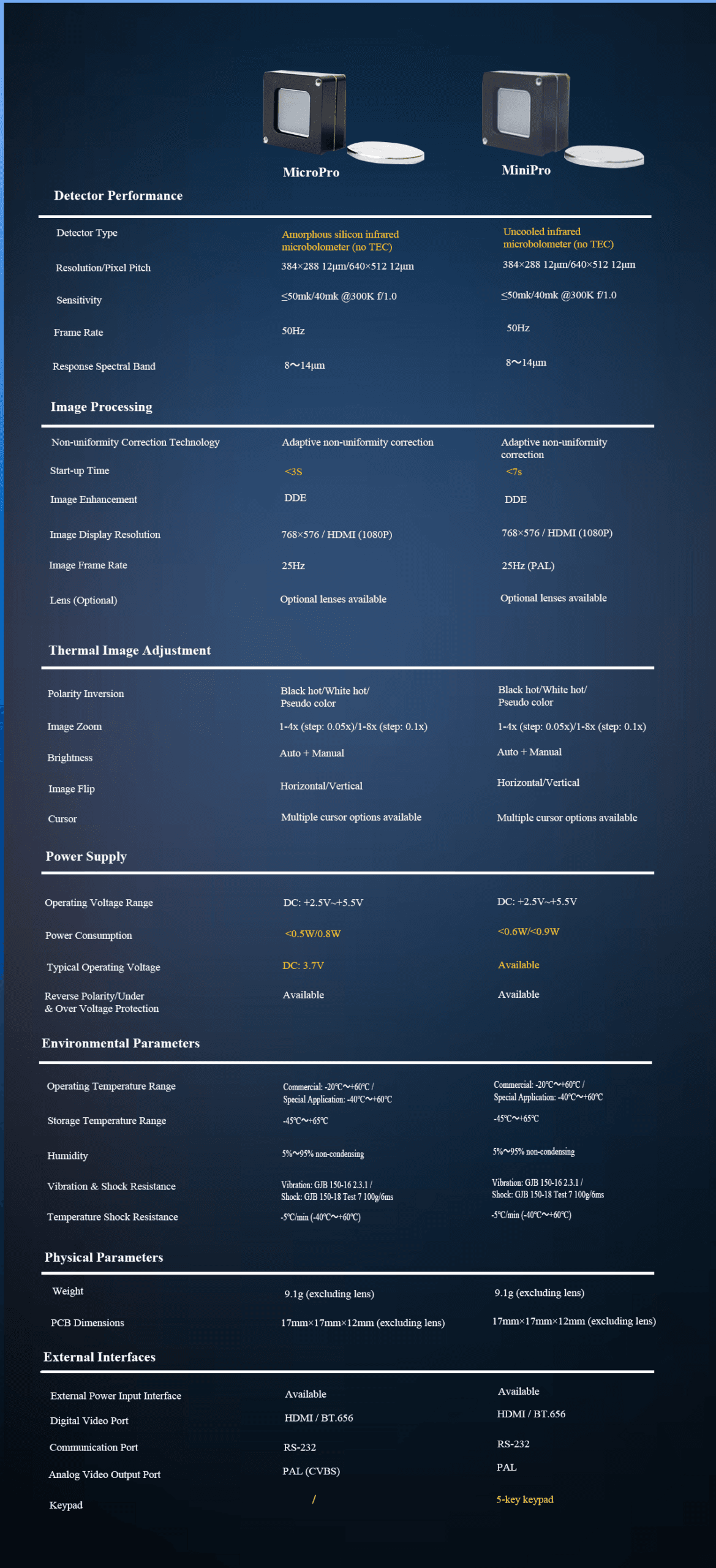

3. Detailed Technical Parameters

Parameter	Specification
Detector Type	Amorphous silicon infrared microbolometer (no TEC)
Resolution / Pixel Pitch	384 × 288 / 12 μm or 640 × 512 / 12 μm
Sensitivity (NETD)	≤50 mK (384) / ≤40 mK (640) @ 300 K, f/1.0
Frame Rate	50 Hz
Spectral Band	8 – 14 μm (LWIR)
Polarity Modes	Black hot / White hot / Pseudo color
Digital Zoom	1‑4× (step 0.05×) for 384 model 1‑8× (step 0.1×) for 640 model
Brightness/Contrast	Auto + Manual
Cursor Options	Multiple cursor options available
Image Flip	Horizontal / Vertical
Operating Temperature Range	Commercial: -20°C … +60°C Special Application: -40°C … +60°C
Storage Temperature Range	-45°C … +65°C
Humidity	5% … 95% (non‑condensing)
Vibration & Shock Resistance	Vibration: GJB 150.16 2.3.1 Shock: GJB 150.18 Test 7, 1000g/6ms
Temperature Shock Resistance	-5°C/min (-40°C … +60°C)
Operating Voltage Range	DC +2.5 V … +5.5 V (typical 3.7 V)
Power Consumption	< 0.5 W (384 model) / < 0.8 W (640 model)
Reverse Polarity Protection	Yes
Under & Over Voltage Protection	Yes
Non‑uniformity Correction	Adaptive non‑uniformity correction
Start‑up Time	< 3 s
Image Enhancement	Digital Detail Enhancement (DDE)
Display Resolution	768 × 576 (PAL) / HDMI 1080P
Display Frame Rate	25 Hz
Optional Lenses	Various focal lengths available upon request
Weight	4.1 g (excluding lens)
Overall Dimensions	13.6 mm × 13.6 mm × 11.2 mm (excluding lens)
External Power Input	Available
Digital Video Port	HDMI / BT656 / MIPI
Communication Port	RS‑232
Analog Video Output	PAL (CVBS)

4. Application Scenarios

Vehicles: Integrates into driver vision enhancement systems, providing thermal imaging for safer night driving and adverse weather conditions.
Surveillance: Ideal for covert security cameras, perimeter monitoring, and fixed/mobile surveillance systems requiring ultra‑compact size.
Telescopes: Enhances astronomical observation with thermal imaging capabilities for research and hobbyist applications.
UAVs / Drones: Ultra‑light weight and low power consumption make it perfect for aerial thermal imaging in search & rescue, agriculture, and infrastructure inspection.
Handheld Devices: Suitable for portable thermal cameras, pocket-sized diagnostic tools, and field inspection equipment.
