Overview

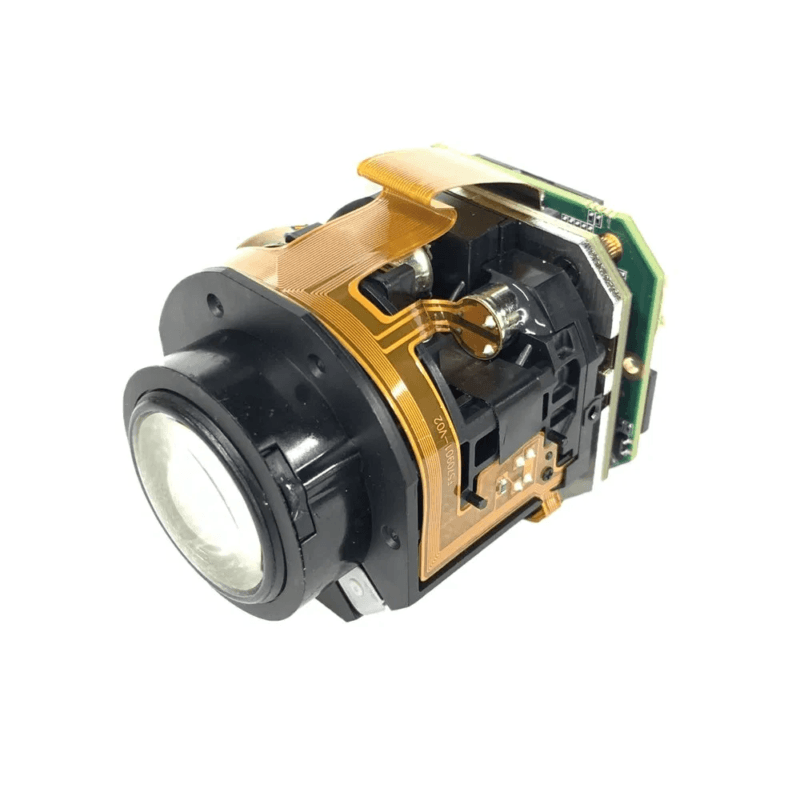

The D-C4204UV 4MP 4X Zoom Smart Function Miniature Camera Module is designed for UAVs and industrial applications, integrating AI capabilities and advanced imaging technologies. It features a resolution of 4MP (1920×1080), a 4x optical zoom, and support for intelligent functions, making it ideal for surveillance, security, and monitoring applications.

Product Features

• High-Resolution Imaging:
  Resolution up to 4MP (1920×1080 @30fps) with real-time image output.
  Starlight low illumination: 0.0005Lux (Color), 0.0001Lux (B/W), 0 Lux with IR.
• Zoom Capabilities:
  4x optical zoom (8–32mm focal length) with 16x digital zoom.
  Horizontal field of view: 40.26–14.34°.
• AI-Powered Features:
  Integrated 1T intelligent calculation for deep algorithm learning.
  Motion detection, support for 255 presets and 8 patrols.
  Smart event and alarm linkage functions.
• Advanced Video Compression:
  Supports H.265 / H.264 / MJPEG video encoding with multi-stream technology.
  Adjustable resolution and frame rate for flexible streaming.
• Durable and Compact Design:
  Lightweight design: 110g.
  Dimensions: 62.7×45×44.5mm.
• Storage and Network Protocols:
  Support for 256GB Micro SD/SDHC/SDXC storage.
  ONVIF compatibility and a wide range of network protocols (TCP/IP, HTTP, RTSP, etc.).

Detailed Technical Parameters

Application Scenarios

• UAV and Drone Applications: Lightweight design optimized for drones in aerial photography and surveillance.
• Industrial Monitoring: Ideal for inspecting industrial equipment or infrastructure with high-resolution imaging.
• Perimeter Security: Advanced motion detection and low-light capabilities for sensitive surveillance zones.
• Smart Cities: Supports integration into urban monitoring systems for real-time event tracking.
• Custom Camera Solutions: Suitable for small dome or bullet cameras, providing flexible integration options.
