D-C100EW 100mm Motorized Zoom 640*512 Thermal Imaging Camera
D-C100EW 100mm Motorized Zoom 640*512 Thermal Imaging Camera

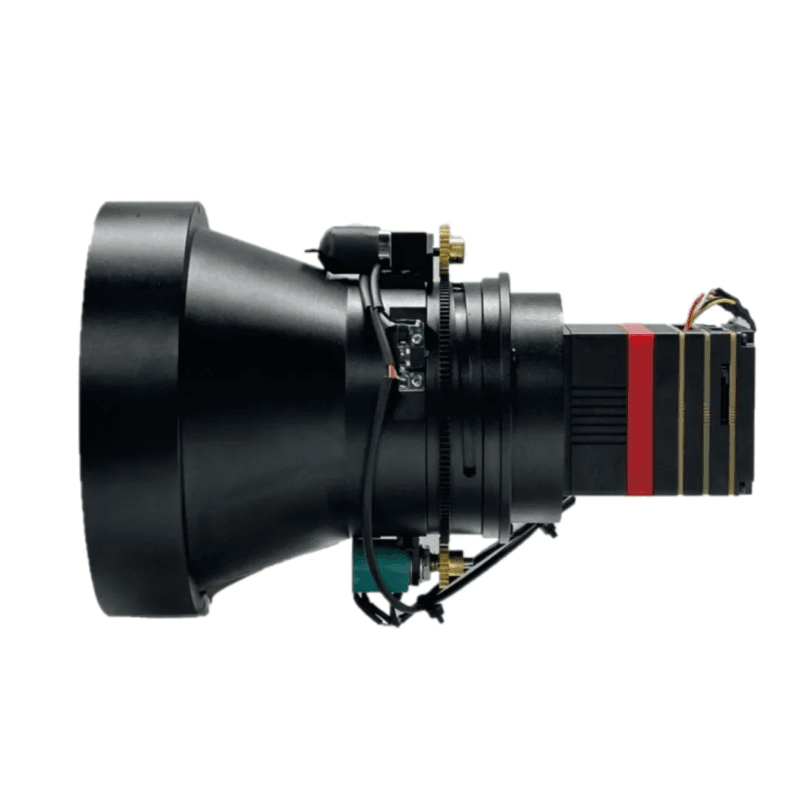

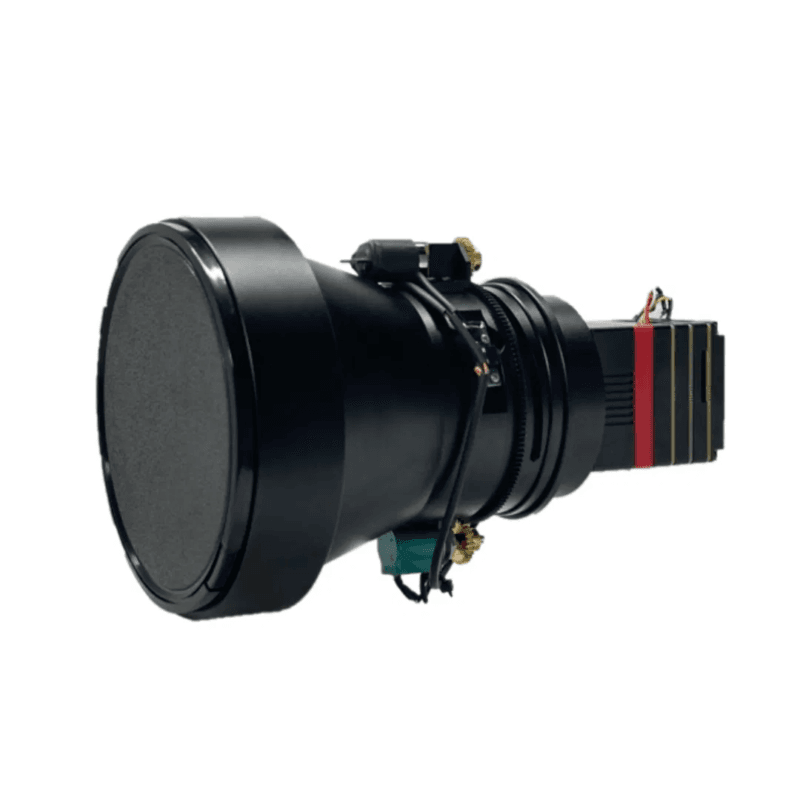

The D-C100EW Thermal Camera Module is a high-performance thermal imaging device with a 640×512 resolution and sensitivity of ≤35 mK @F1.0, 300K. It features a 100mm electronic focusing lens, robust network connectivity, and extensive alarm linkage functions. Designed for diverse applications, it is ideal for industrial, security, and surveillance purposes.
The D-C100EW Thermal Camera Module is a high-performance thermal imaging device with a 640×512 resolution and sensitivity of ≤35 mK @F1.0, 300K. It features a 100mm electronic focusing lens, robust network connectivity, and extensive alarm linkage functions. Designed for diverse applications, it is ideal for industrial, security, and surveillance purposes.
Description
Overview
The D-C100EW Thermal Camera Module is a high-performance thermal imaging device with a 640×512 resolution and sensitivity of ≤35 mK @F1.0, 300K. It features a 100mm electronic focusing lens, robust network connectivity, and extensive alarm linkage functions. Designed for diverse applications, it is ideal for industrial, security, and surveillance purposes.
Product Features
- High Sensitivity and Image Quality:
Utilizes a vanadium oxide uncooled thermal detector for exceptional image clarity.
640×512 resolution, real-time image output, with sensitivity of ≤35 mK @F1.0, 300K. - Advanced Lens and Imaging:
Equipped with a 100mm electronic focusing lens with F1.0 aperture.
Field of View (FOV): 4.4°x3.5°, focusing range from 10m to infinity. - Rich Interface and Connectivity:
Supports RS232 and RS485 communication protocols.
Built-in 1 alarm input/output and 1 audio input/output.
Network protocols: TCP/IP, HTTP, HTTPS, ONVIF, and more. - Enhanced Storage:
Supports Micro SD/SDHC/SDXC cards up to 256GB for offline local storage. - Intelligent Features:
Alarm functions: electronic fence, cross-border detection, area intrusion, and area leaving.
Rich image settings: brightness, contrast, gamma, pseudo-color, and digital zoom (1x, 2x, 4x). - Rugged Design:
IP67-rated lens sealing and operational temperatures between -30°C to 60°C.
Detailed Technical Parameters
| Category | Specifications |
|---|---|
| Detector Type | Vox Uncooled Thermal Detector |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Range | 8-14μm |
| Sensitivity (NETD) | ≤35 mK @F1.0, 300K |
| Lens | 100mm Electronic Focusing Lens |
| FOV | 4.4°x3.5° |
| Focusing Range | 10m to infinity |
| Sealing | IP67 (front of lens) |
| Network Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, etc. |
| Compression Standards | H.265 / H.264 |
| Digital Zoom | 1x, 2x, 4x (step 0.1) |
| Interfaces | RS232, RS485, 1 alarm input/output, 1 audio input/output, 1 USB port |
| Storage | Micro SD/SDHC/SDXC (up to 256GB) |
| Operating Temperature | -30°C to 60°C |
| Power Supply | DC12V±10% |
| Power Consumption | 5.4W MAX |
| Dimensions | Ф111 x 171.1mm |
| Weight | 740g |
Application Scenarios
- Industrial Monitoring: Ideal for detecting temperature anomalies in industrial equipment or processes.
- Perimeter Security: Suitable for border surveillance and critical infrastructure monitoring.
- Fire and Rescue Operations: Effective in detecting heat sources in emergency scenarios.
- Agricultural and Environmental Monitoring: Tracks crop health, livestock, and wildlife behavior.
- Smart City Applications: Integrated into surveillance systems for urban safety and monitoring.
Additional information
| Performance parameters | D-C100EW |
|---|
