DD400-2 Reconnaissance Blade
DD400-2 Reconnaissance Blade
The DD400-2 Reconnaissance Blade is a portable drone detection device designed for team-based operations. With its synchronized alarm, dual-mode detection, and anti-jamming communication, it enables real-time drone detection, identification, and collaborative team response. Supporting 70MHz–6.2GHz frequency scanning and an extended communication range of ≥1 km, this device is suitable for a wide range of critical applications, including security, surveillance, and coordinated defense.
The DD400-2 Reconnaissance Blade is a portable drone detection device designed for team-based operations. With its synchronized alarm, dual-mode detection, and anti-jamming communication, it enables real-time drone detection, identification, and collaborative team response. Supporting 70MHz–6.2GHz frequency scanning and an extended communication range of ≥1 km, this device is suitable for a wide range of critical applications, including security, surveillance, and coordinated defense.
Description
Overview
The DD400-2 Reconnaissance Blade is a portable drone detection device designed for team-based operations. With its synchronized alarm, dual-mode detection, and anti-jamming communication, it enables real-time drone detection, identification, and collaborative team response. Supporting 70MHz–6.2GHz frequency scanning and an extended communication range of ≥1 km, this device is suitable for a wide range of critical applications, including security, surveillance, and coordinated defense.
Product Features
- Team Synchronization Alarm:
Once the main device detects a drone, all connected terminal devices trigger synchronized alarms via sound, vibration, and light. - Team Collaborative Combat:
– Supports anti-jamming encrypted communication to prevent frequency interference.
– Communication range: ≥1 km in open, unobstructed environments. - Dual-Mode Detection:
– Early Warning Mode: Spectrum Power Detection for quick alerts.
– Alarm Mode: Spectrum Feature Matching for precise identification. - Full-Frequency Customizable Scanning:

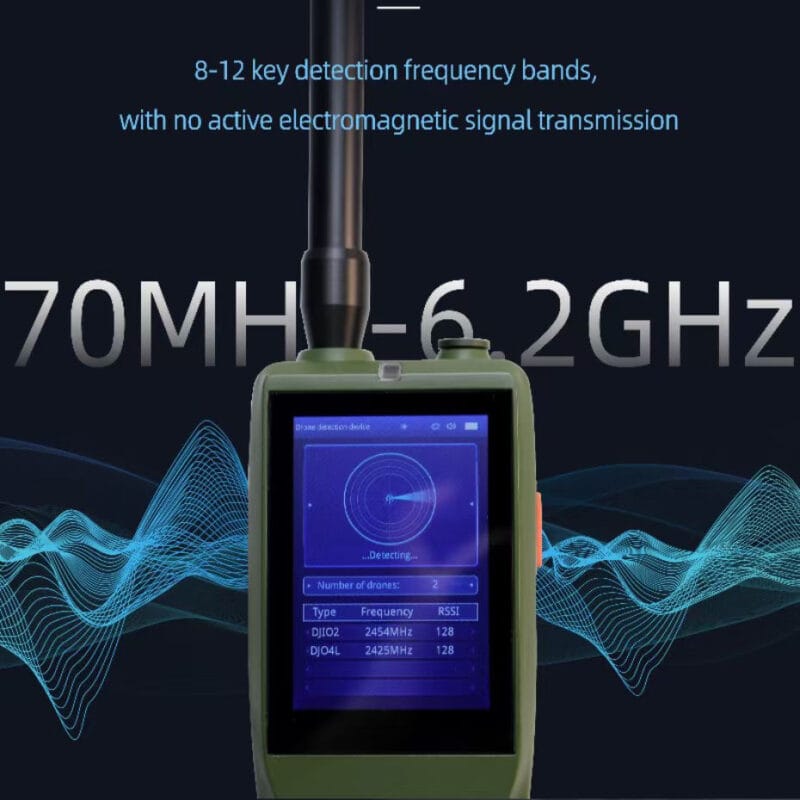

Detects signals across 70MHz–6.2GHz with support for 8–12 key frequency bands. - FPV Early Warning:
Unique baseband signal analysis ensures rapid detection of FPV, DIY drones, and quadcopters. Detection radius: 1.5 km. - Multi-Alarm Modes:

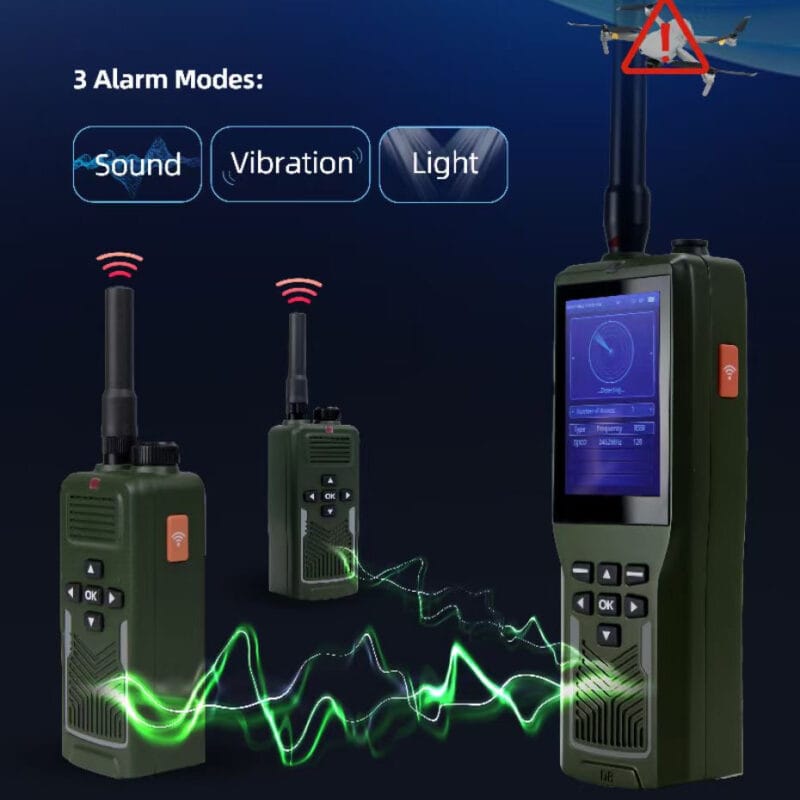

Three alarm options: Sound, Vibration, and Light. - Extended Battery Life:
– Detection Host: 26 hours of continuous operation.
– Team Terminal: ≥10 hours. - Compact and Portable Design:
Lightweight, rugged design with intuitive 3.5-inch display screen and control buttons.
Detailed Technical Parameters
| Category | Specifications |
|---|---|
| Recognition Type | Most mainstream drones, FPV drones, DIY drones |
| Detection Frequency | 70MHz–6.2GHz, customizable bands (400MHz, 800MHz, 2.4GHz, 5.8GHz) |
| Detection Radius | ≥1.5 km |
| Detection Response Time | ≤3 seconds |
| Detection Principle | Spectrum scanning and spectrum feature recognition |
| Alarm Modes | Sound, Vibration, Light |
| Communication Range | ≥1 km (open and unobstructed environments) |
| Power Supply | Removable lithium battery |
| Battery Life | Detection Host: 26 hours; Team Terminal: ≥10 hours |
| Operating Temperature | -20°C to 50°C |
| Screen Size | 3.5 inches |
| Device Dimensions | Detection Host: 199 × 75 × 40 mm; Team Terminal: 117 × 56 × 37 mm |
| Supported Languages | Chinese, English, Russian (customizable for other languages) |
Application Scenarios
- Team-Based Operations: Synchronized alarms and collaborative combat for coordinated responses.
- Airport Security: Detect and prevent unauthorized drones from interfering with airspace.
- Critical Infrastructure Protection: Safeguard sensitive facilities such as power plants, military bases, and government buildings.
- Public Event Surveillance: Monitor and protect large-scale events against drone threats.
- Border and Coastal Patrol: Track and respond to illegal drone activities along borders and coastlines.
- FPV Drone Defense: Provide early warning and detection of FPV, DIY drones, and quadcopters.
Additional information
| Performance parameters | parameters |
|---|
