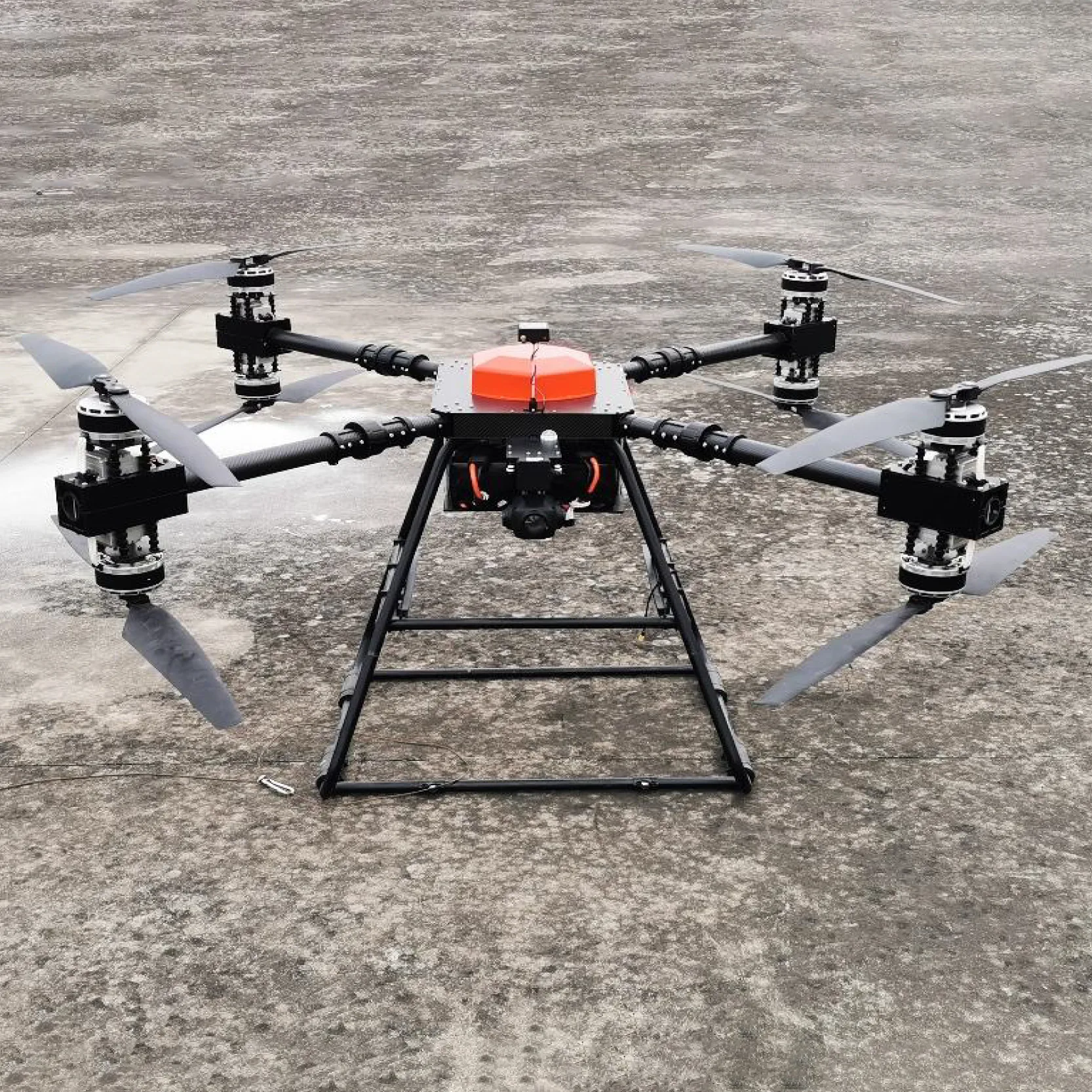

D-QX60 Aerial glass curtain wall cleaning drone
D-QX60 Aerial glass curtain wall cleaning drone
The D-QX60 drone is designed for high-altitude cleaning tasks and is particularly suitable for glass curtain wall cleaning. With a total weight of 35 kilograms, the drone supports high-altitude operation at 60 meters, with 50 times the cleaning efficiency of manual labor, and has an IP67 waterproof and dustproof rating, making it suitable for harsh operating conditions.
The D-QX60 drone is designed for high-altitude cleaning tasks and is particularly suitable for glass curtain wall cleaning. With a total weight of 35 kilograms, the drone supports high-altitude operation at 60 meters, with 50 times the cleaning efficiency of manual labor, and has an IP67 waterproof and dustproof rating, making it suitable for harsh operating conditions.
Description
D-QX60 Aerial glass curtain wall cleaning drone Overview
The D-QX60 drone is specially designed for high-altitude cleaning operations, particularly for glass curtain walls. With advanced obstacle avoidance, military-grade flight control systems, and a powerful high-pressure water pump, this drone is capable of efficient and precise cleaning in challenging environments.
Product Features
- 35kg Total Weight: The D-QX60 has a lightweight yet durable design, weighing only 35kg, including the tether cable, water hose, and spray gun.
- 60m Maximum Tethered Height: It supports a maximum tether height of 60m and a 50m long water hose for effective cleaning at high altitudes.
- 10 to 15L/min Spraying Flow Rate: Equipped with a high-pressure spray gun that delivers 1.2m@3Mpa, providing excellent water flow for cleaning large surfaces quickly and efficiently.
- 50 Times More Efficient than Manual Cleaning: The D-QX60 offers 50 times the efficiency of manual cleaning, making it ideal for large glass facade buildings.
- Dual Backup Flight Control System: The drone uses a dual backup military-grade inertial navigation system to ensure stable and precise flight control during high-altitude operations.
- IP67 Waterproof and Dustproof Rating: The drone is fully protected against dust and can be washed, ensuring it can operate in tough environments.
Detailed Technical Parameters
| Parameter | Details |
|---|---|
| Body Material | Composite Carbon Fiber / Aviation Aluminum |
| Body Wheelbase Size | 1680mm |
| Folding Size for Recovery | 480mm × 320mm × 500mm |
| Overall Weight | 35kg (including tether cable, water hose, spray gun) |
| Maximum Takeoff Weight | 80kg |
| Maximum Tethered Height | 60m |
| Maximum Water Hose Length | 50m (diameter 18mm) |
| Maximum Climbing Speed | 5m/s |
| Tethered Power Supply Power | 8000W |
| Flight Control System | Dual backup military-grade inertial navigation system |
| Working Spray Gun Pressure | 1.2m@3Mpa |
| Spraying Flow Rate | 10-15L/min |
| Operating Efficiency | 50 times more efficient than manual cleaning |
| Remote Control Communication Distance | 15km (without interference) |
| Obstacle Avoidance Mode | Radar + visual all-direction obstacle avoidance |
| Flight Mode | Attitude / GPS / Autonomous Flight |
| Operating Altitude Range | 0 – 5000m |
| Overall Maintenance Cycle | ≥12000 hours |
| Waterproof and Dustproof Grade | IP67 (washable) |
| Camera Resolution | HD 1080p dual cameras |
Accessories List and Specifications
| Accessory | Details |
|---|---|
| Image and Data Integration Handheld Ground Station | Communication distance: 15km, Channels: 21, Weight: 580g |
| HD Camera | 1080p resolution, Weight: 120g |
| 30x Optical Zoom Camera (Optional) | Sony, 30x optical zoom, 1080p/50fps, Sony sensor |
| High-precision RTK | RTK positioning accuracy ≤10mm, Multi-mode kernel |
| Millimeter-wave Obstacle Avoidance Radar | Detection accuracy ≤10cm, Detection range: 50m |
| High-pressure Water Pump | Power: 380W, Water pressure: 3-5Mpa |
| High-pressure Hose | Diameter: 18mm, Length: 50m, Pressure: 8Mpa |
| Vector Adjustable High-pressure Nozzle | Flow rate: 8L/min, Nozzle pressure: 7-9Mpa |
| 8000W DC Generator | Maximum rated power: 8KW, Weight: 45kg |
| Charger/Battery | Input voltage: 110-220V, Charging power: 1300W, Capacity: 13000mAh |
| Explosion-proof Aviation Box | Size: 500mm × 500mm × 500mm, Load capacity: 50kg, With pulleys |
Application Scenarios
- High-Altitude Glass Curtain Wall Cleaning: The D-QX60 is specifically designed for cleaning glass curtain walls in tall buildings, with a high-pressure water spray system and long water hose that ensures comprehensive cleaning.
- Industrial Cleaning: Equipped with a high-pressure water pump and durable hose, the D-QX60 can also handle industrial cleaning tasks, especially in environments that are difficult to access.
- Remote Monitoring and Control: With its extended 15km communication range and high-definition camera, the D-QX60 is suitable for remote monitoring of cleaning operations, providing real-time data and video feed.
The D-QX60 Aerial glass curtain wall cleaning drone is a professional cleaning tool designed for tall buildings and industrial environments. Its high-pressure cleaning system, robust construction, and advanced flight control make it an essential solution for cleaning operations at significant heights.
